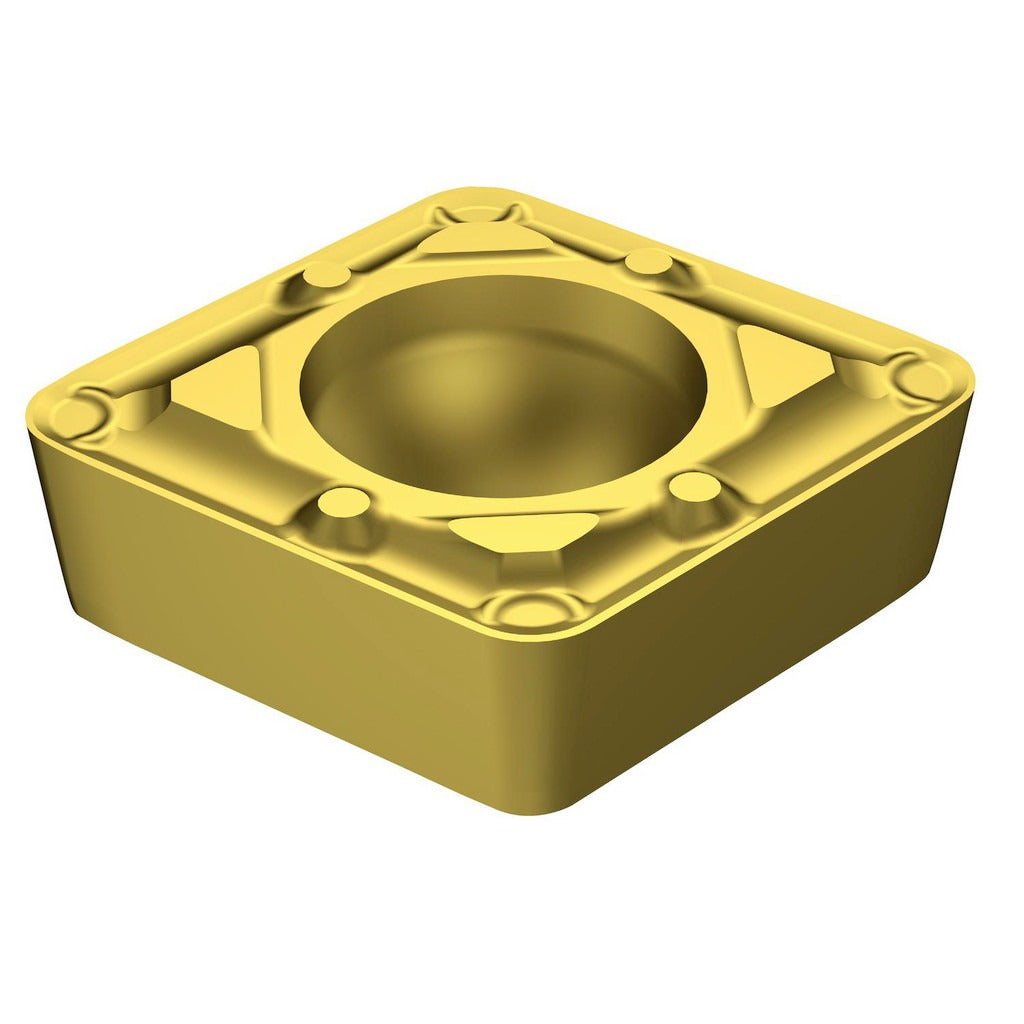

Sandvik Coromant 5723657 Turning Insert Ccmt 2015

Product Description

The SANDVIK COROMANT 5723657 is a solid carbide turning insert designed for precision external turning operations on stainless steel workpieces. Part of the CoroTurn 107 series, it carries the ISO designation CCMT 06 02 04-WF 2015 and features a three-layer CVD coating of TiCN, Al2O3, and TiN for wear resistance and heat control during cutting. The insert has an 80-degree diamond shape, a 0.25-inch inscribed circle, and a corner radius of 0.0156 inches (1/64 inch). The WF chip breaker geometry is suited for light to medium finishing cuts. Holding is via screw clamp, and the neutral hand orientation fits standard CCMT-style toolholders.

This insert is intended for use in CNC lathes and turning centers where stainless steel (ISO material group M) is the primary workpiece material. The WF chip breaker provides controlled chip evacuation in finishing applications where surface finish and close tolerances are priorities. The CoroTurn 107 platform is commonly used in both production and job-shop turning environments. This insert is sold individually with a minimum order quantity of 10 units per order.

Key Features

• CVD-applied three-layer coating: TiCN, Al2O3, and TiN for extended tool life on stainless steel
• 80-degree diamond insert shape (C) with 7-degree relief angle and clearance code C
• WF chip breaker geometry optimized for light to medium finishing passes
• Screw-clamp holding method compatible with CCMT 06 02 04 toolholder seats
• Wiper edge included for improved surface finish at standard feed rates
• Neutral hand orientation for use in both left- and right-hand applications where toolholder allows

Compatibility

Designed for use in CCMT 06 02 04-compatible screw-clamp toolholders within the SANDVIK COROMANT CoroTurn 107 series. Intended primarily for stainless steel (ISO M) workpiece materials. Verify toolholder seat size and insert pocket geometry before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully and flat in the toolholder pocket before tightening the clamping screw to avoid micro-fractures at the cutting edge. Do not re-use a visibly chipped or worn insert edge on a finish pass.
