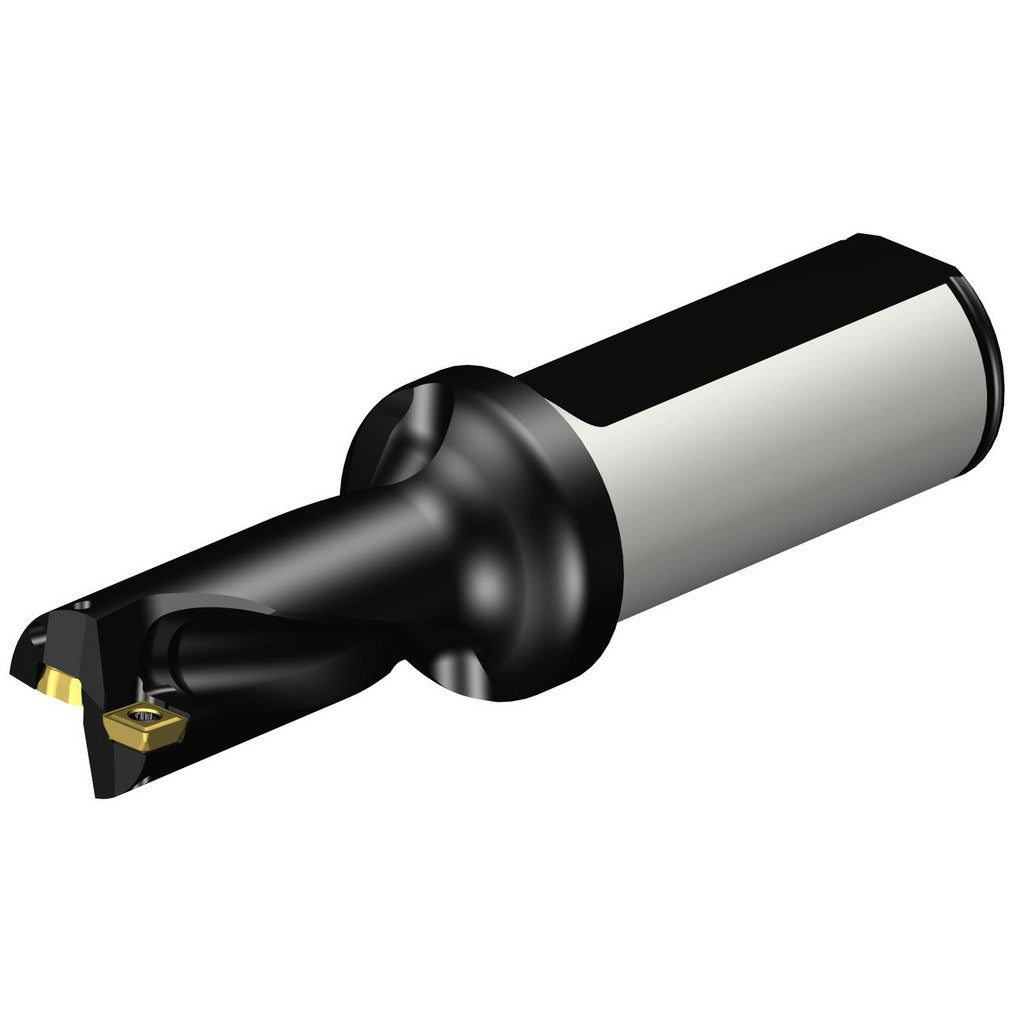

Sandvik Coromant 5723635 Indexable Insert Drill 3/4 in

Product Description

The SANDVIK COROMANT 5723635 is a straight-shank indexable insert drill designed for precision hole-making in metal cutting applications. Part of the CoroDrill 880 series, it accepts two indexable inserts in the A880..LXxx-02 drill style and delivers a maximum drill depth of 1.635 inches at a 2xD depth-to-diameter ratio. The tool body is constructed from steel with a 3/4 inch (0.7697 inch decimal) cutting diameter and a 1 inch straight cylindrical shank. Right-hand cutting direction and through-coolant capability make this drill well-suited for high-productivity drilling operations in shop and production environments. Installation and operation are performed by machinists and CNC tooling professionals.

This indexable insert drill is intended for use in production machining environments where repeatability and insert changeability are priorities. The 2xD depth ratio suits a wide range of through-hole and blind-hole applications in ferrous and non-ferrous materials. The straight cylindrical shank interfaces with standard toolholders and drill chucks sized for 1 inch shanks. Coolant-through capability supports chip evacuation and heat management at the cutting edge, making it appropriate for automated CNC milling and machining center setups.

Key Features

• Maximum drill depth of 1.635 inches at a 2xD depth-to-diameter ratio
• Accepts two indexable inserts in compatible A880..LXxx-02 drill style
• Through-coolant capability for improved chip evacuation and tool life
• Right-hand cutting direction for standard CNC and manual spindle operation
• 1 inch straight cylindrical shank for compatibility with standard toolholders
• Steel tool body construction for rigidity and durability in production use

Compatibility

Compatible with indexable inserts in the A880..LXxx-02 drill style. Insert size is 0.1024 inches (2.60 mm). Designed for use with toolholders and drill chucks accommodating a 1 inch straight cylindrical shank.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and all energy is locked out before mounting or changing inserts. Verify that the toolholder bore matches the 1 inch shank diameter and that insert seats are clean and free of debris before seating new inserts. Coolant-through connections should be confirmed leak-free before initiating a cutting cycle.
