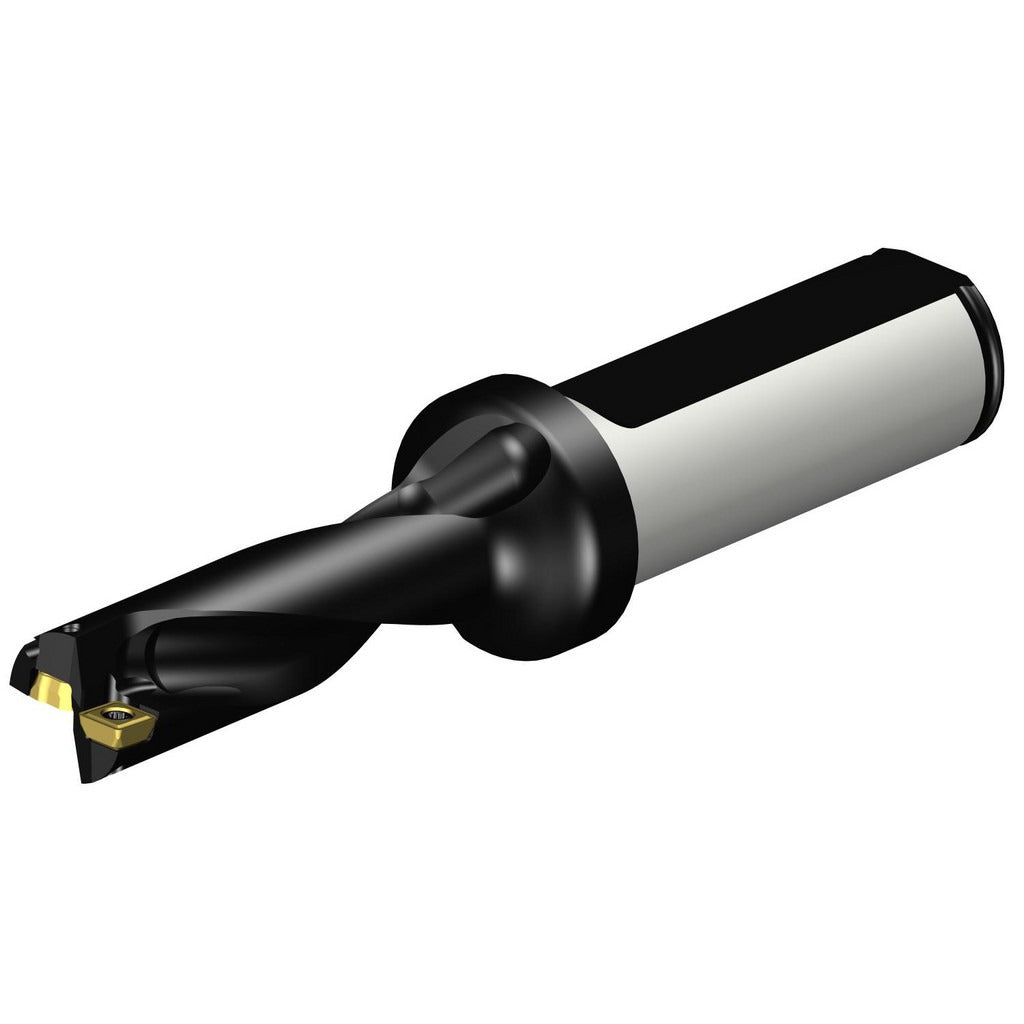

Sandvik Coromant 5723482 Indexable Insert Drill 0.562 in 3xd

Product Description

The SANDVIK COROMANT 5723482 is a straight-shank indexable insert drill engineered for precision hole-making in metal cutting applications. Designed around the CoroDrill 880 series platform, this tool accepts two indexable inserts in the A880..LXxx-03 drill style configuration, enabling fast material removal with consistent hole quality. The body is constructed from steel and delivers a maximum drill depth of 1.799 inches at a 3xD depth-to-diameter ratio. With a cutting diameter of 0.562 inches and a 0.750-inch straight cylindrical shank, this drill is sized for CNC machining centers and drill presses running right-hand cutting operations. Coolant-through capability supports chip evacuation and tool life in demanding production environments.

This indexable insert drill is suited for production machining operations in both job shop and high-volume manufacturing environments. It is used primarily in CNC vertical and horizontal machining centers where repeatable hole accuracy and insert replaceability reduce downtime. The CoroDrill 880 series is a recognized platform among machinists and tooling specialists working in steel, cast iron, and similar workpiece materials. The straight cylindrical shank interfaces directly with standard toolholders and collet chucks accepting a 0.750-inch shank diameter.

Key Features

• Maximum drill depth of 1.799 inches with a 3xD depth-to-diameter ratio
• Accepts two indexable inserts in the A880..LXxx-03 drill style
• Coolant-through design supports chip evacuation and extended insert life
• Right-hand cutting direction for standard CNC spindle rotation
• Straight cylindrical shank at 0.750 inches for broad toolholder compatibility
• Steel body construction for rigidity and dimensional stability

Compatibility

Compatible with indexable inserts in the A880..LXxx-03 drill style with an insert size of 0.0945 inches. Designed for use with toolholders and collet systems accepting a 0.750-inch straight cylindrical shank diameter.

Installation Notes

Installation and setup should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or changing inserts. Confirm toolholder runout and clamping torque meet the machine tool manufacturer specifications before operating. Coolant-through connections should be verified and free of obstruction prior to cutting.
