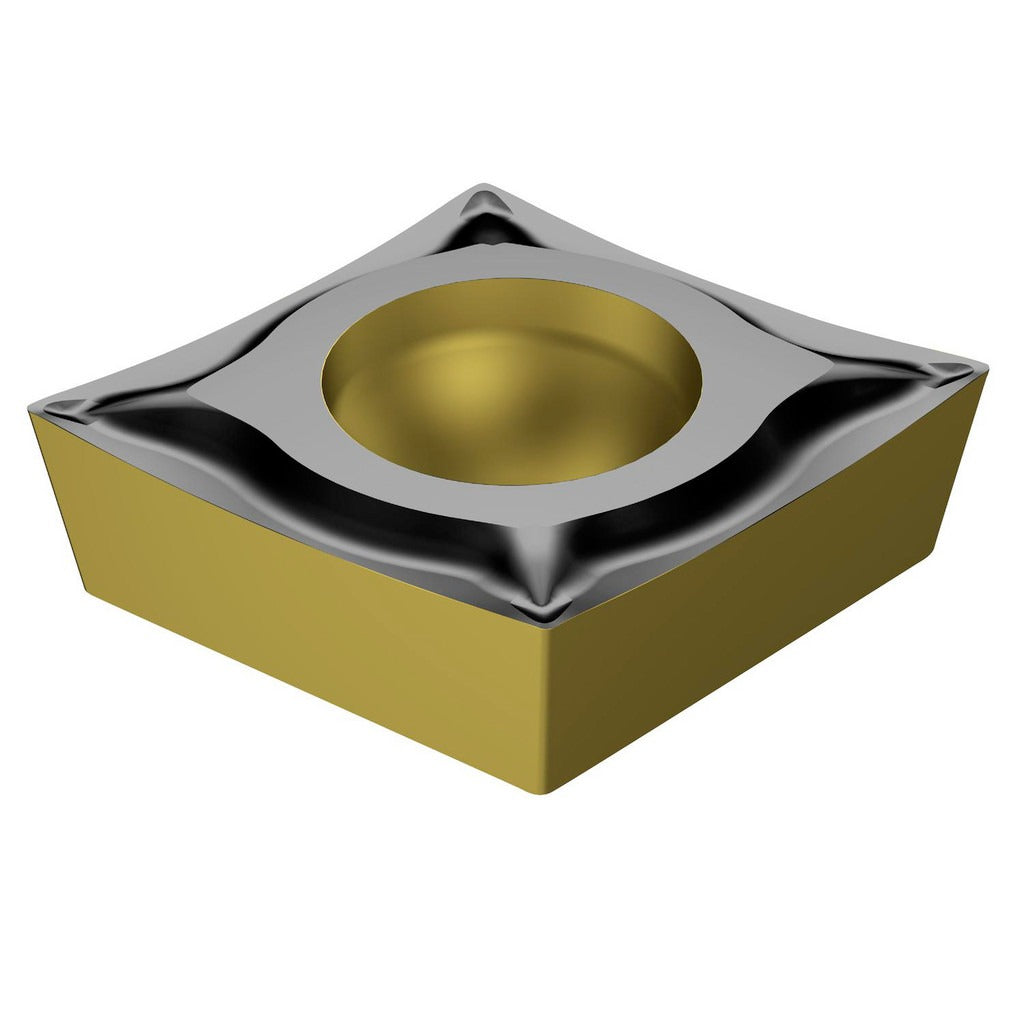

Sandvik Coromant 5723015 Turning Insert CCGT32.50UM 1515

Product Description

The SANDVIK COROMANT 5723015 is a solid carbide turning insert designed for precision external and internal turning operations on CNC lathes and turning centers. Carrying the CCGT insert style with an 80-degree diamond shape, this insert features a multilayer TiCN, Al2O3, and TiN coating applied via MTCVD process, delivering wear resistance and thermal stability at the cutting edge. The UM chip breaker geometry is engineered for light to medium finishing cuts. With a 3/8-inch (0.3750 inch) inscribed circle, a 0.20 mm corner radius, and an insert length of 9.67 mm, this insert is suited for machining applications where tight tolerances and fine surface finish are required. Installation is by screw-clamping (insert holding method: screw).

This insert is part of the CoroTurn 107 series and is intended for use in screw-clamped turning toolholders compatible with the CCGT insert shape and size code 32.5. Primary workpiece material is steel (ISO code P) and secondary workpiece material is stainless steel (ISO code M). Typical applications include finish turning on steel and stainless steel components in precision machining environments. The neutral hand orientation suits both right- and left-hand toolholder setups depending on the holder design. Sold individually; minimum order quantity is 10 pieces per order.

Key Features

• MTCVD multilayer coating: TiCN, Al2O3, and TiN for extended tool life on steel and stainless steel
• UM chip breaker geometry optimized for light to medium finishing cuts
• 80-degree diamond insert shape (CCGT style) with 7-degree relief angle for clearance and edge strength
• 0.20 mm corner radius supports fine surface finish and tight-tolerance profiling
• Screw-clamping insert holding method for positive, repeatable seating in compatible toolholders
• 2 cutting edges per insert for cost efficiency

Compatibility

Designed for use in CoroTurn 107 series screw-clamped toolholders that accept CCGT-style inserts with insert size code 32.5. ISO code for this insert is CCGT09T302UM1515. Verify toolholder pocket geometry and clamping screw size before installation.

Installation Notes

This insert is installed and replaced by a qualified machinist or tooling technician. Power down and lock out the machine spindle before changing inserts. Use the appropriate Torx or hex key for the clamping screw as specified by the toolholder manufacturer - do not overtighten, as this can crack the carbide insert. Inspect the toolholder pocket and clamping screw for wear or damage before seating a new insert.
