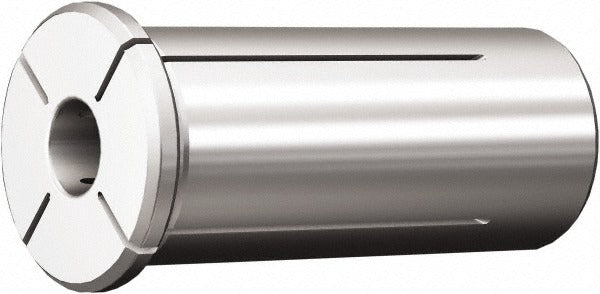

Sandvik Coromant 5722710 Hydraulic Chuck Sleeve

Product Description

The SANDVIK COROMANT 5722710 is a hydraulic chuck sleeve designed for use with hydraulic toolholding systems in precision machining applications. It features a 3/8 inch (0.3750 inch decimal) inside diameter and a 0.4724 inch outside diameter, with a head diameter of 0.6299 inches. The sleeve is manufactured from steel and supports coolant-through delivery at up to 80 psi, allowing cutting fluid to reach the tool tip directly. The length under head measures 1.5748 inches. Machinists and toolroom technicians install this sleeve to fit specific shank sizes within a hydraulic chuck body, maintaining precise grip and concentricity during milling, drilling, or reaming operations.

This sleeve is suited for metalworking environments where hydraulic chucks are used on CNC machining centers, turning centers, or manual machines requiring accurate tool runout control. Coolant-through capability makes it appropriate for deep-hole drilling and high-speed operations where direct coolant delivery to the cutting zone is necessary. It is sold individually and is intended as a replacement or spare component within an existing hydraulic chuck assembly.

Key Features

• 3/8 inch inside diameter with 0.4724 inch outside diameter for precise chuck fitment
• Coolant-through design supports internal coolant delivery up to 80 psi
• Head diameter of 0.6299 inches for positive seating in the chuck body
• 1.5748 inch length under head accommodates standard toolholder reach requirements
• Steel construction provides durability under high clamping pressure and repeated use

Compatibility

Designed as an OEM-style replacement sleeve for hydraulic chuck toolholding systems requiring a 3/8 inch bore diameter. Consult the hydraulic chuck manufacturer specifications to confirm sleeve fitment before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with hydraulic chuck systems. Ensure the chuck body is fully depressurized and the machine spindle is powered down before removing or inserting sleeves. Clean all mating surfaces thoroughly before assembly to avoid contamination that could affect clamping force or concentricity. Follow the chuck manufacturer guidelines for pressurization and runout verification after installation.
