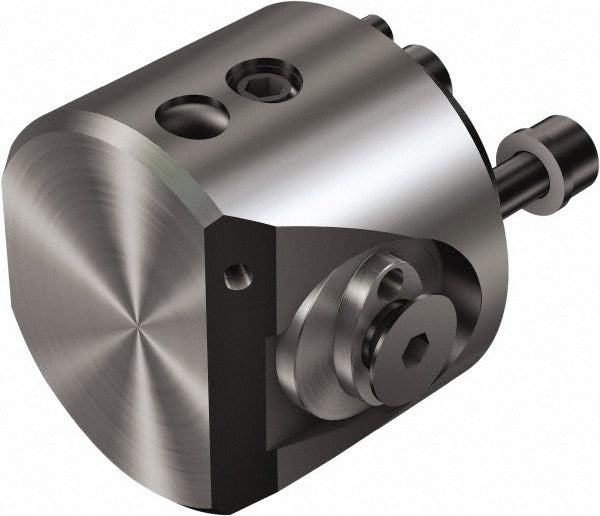

Sandvik Coromant 5722585 Boring Head Corobore 825 Series C

Product Description

The SANDVIK COROMANT 5722585 is a CoroBore 825 series boring head engineered for precision single-point boring operations on CNC machining centers and modular tooling systems. It features a Series C modular connection, providing a secure and repeatable interface with compatible toolholders and extensions. With an overall length of 1.7323 inches, this compact head fits tight-clearance applications where axial space is limited. Installation is performed by licensed machinists and tooling specialists working with modular boring systems in production and job-shop environments. The 5722585 is designed to deliver consistent diameter accuracy and surface finish in fine boring applications across a wide range of workpiece materials.

The CoroBore 825 boring head is suited for fine boring operations in both horizontal and vertical machining centers. Its modular Series C connection integrates directly into CoroBore 825 compatible modular tooling assemblies, making it appropriate for use in aerospace, automotive, die-and-mold, and general precision machining applications. The compact overall length supports close-tolerance boring in production environments where runout and repeatability are critical factors. Machinists setting up multi-step boring cycles will find this head a direct-fit component within an existing modular tooling system.

Key Features

• CoroBore 825 series design for fine boring and high-precision diameter control
• Series C modular connection for repeatable assembly and disassembly without resetting
• Overall length of 1.7323 inches suits confined axial spaces on machining centers
• Modular architecture allows combination with extensions, adaptors, and couplings
• Sold as a single unit with a minimum order quantity of 1

Compatibility

Designed for use with CoroBore 825 series modular tooling systems using a Series C modular connection interface.

Installation Notes

Installation and setup should be performed by qualified machinists or tooling engineers familiar with modular boring systems. Power down and lock out the machining center spindle before assembling or disassembling the boring head from the tooling stack. Use calibrated torque tools as specified by the tooling system manufacturer for all coupling connections. Verify runout with a dial indicator after assembly and before committing to a production bore.
