Samuel Mueller smtpaxr-mb Argotherm Thermostatic Shower Set

Product Description

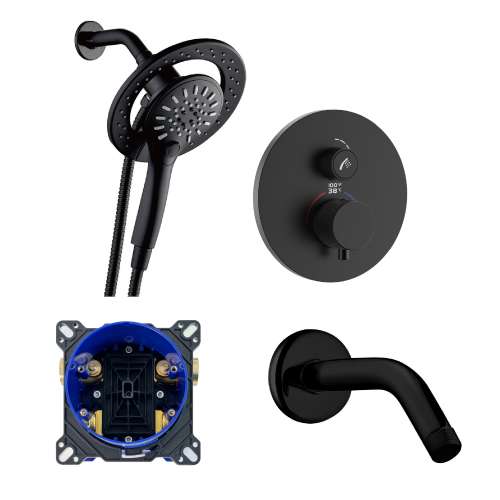

The Samuel Mueller smtpaxr-mb is a complete single-function thermostatic shower set from the ArgoTherm collection, finished in matte black. The kit includes a 4.3125-inch diameter magnetic docking hand shower, a 9-inch stainless steel shower arm with a 2.375-inch diameter round flange cover, a thermostatic valve and trim with push-button control, and a Forever Box rough-in enclosure. The thermostatic valve uses a French VERNET cartridge, delivers scald-guard protection, and maintains a set water temperature regardless of pressure changes elsewhere in the system. Flow rate is 2.5 GPM for both the 7.5-inch diameter round showerhead and the hand shower. The valve body is solid brass with a stainless steel trim plate and handle.

This shower set is rated for both residential and commercial installations. The ArgoTherm thermostatic valve and trim are designed for in-wall mounting through a Forever Box rough-in body, which has a solid brass body with a plastic built-in box and a 9 GPM flow capacity. The 4.3125-inch round ABS hand shower magnetically docks to the showerhead and offers three spray settings: natural rain, spray, and spray-plus-rain. The included 59-inch hose connects to the 0.5-inch NPT inlet. The 7.5-inch round showerhead delivers a single spray function. This kit is suited for new construction or remodel shower installations where precise temperature control is required.

Key Features

• French VERNET thermostatic cartridge with scald-guard protection maintains set temperature independent of pressure fluctuations
• Magnetic docking hand shower with three spray modes: natural rain, spray, and spray-plus-rain
• 7.5-inch diameter round showerhead at 2.5 GPM single spray function
• Solid brass thermostatic valve body with stainless steel trim plate and push-button handle
• Forever Box rough-in enclosure rated at 9 GPM, solid brass body with plastic built-in box
• 59-inch hose included; 0.5-inch NPT inlet connection
• Matte black finish across all trim components; round style throughout

Compatibility

Designed as a complete OEM-matched thermostatic shower set for in-wall valve installations in residential and commercial applications requiring a 0.5-inch NPT inlet connection and a Forever Box AX54 rough-in enclosure.

Installation Notes

Installation of a thermostatic shower valve and trim should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the system before beginning any work. The Forever Box rough-in body must be set to the correct wall depth before tile or finish surfaces are applied, as trim access is limited after finishing. Do not overtighten the valve connections; follow the valve manufacturer documentation for proper seating of the VERNET cartridge.

Technical Specifications

• Flow Rate (Showerhead): 2.5 GPM
• Flow Rate (Hand Shower): 2.5 GPM
• Forever Box Flow Rate: 9 GPM
• Valve Type: Thermostatic
• Cartridge Type: French VERNET Thermostatic
• Number of Handles: 1
• Number of Spray Settings: 3
• Showerhead Diameter: 7.5 inches
• Hand Shower Diameter: 4.3125 inches
• Shower Arm Reach: 9 inches
• Flange Diameter: 2.375 inches
• Escutcheon Diameter: 6.25 inches
• Hose Length: 59 inches
• Inlet Size: 0.5 inches
• Inlet Thread Type: NPT
• Material: Stainless Steel / ABS
• Finish: Matte Black
• Shape: Round
• Package Width: 8 inches
• Package Length: 10 inches
• Package Height: 8 inches
• Weight: 10 pounds
• Scald Guard: Yes
• ADA Compliant: No
• Residential / Commercial: Residential and Commercial
• Warranty: Lifetime Limited Residential / 1-Year Limited Commercial

Standard Information

• Brand: Samuel Mueller
• Manufacturer Part Number: smtpaxr-mb
