Product Description

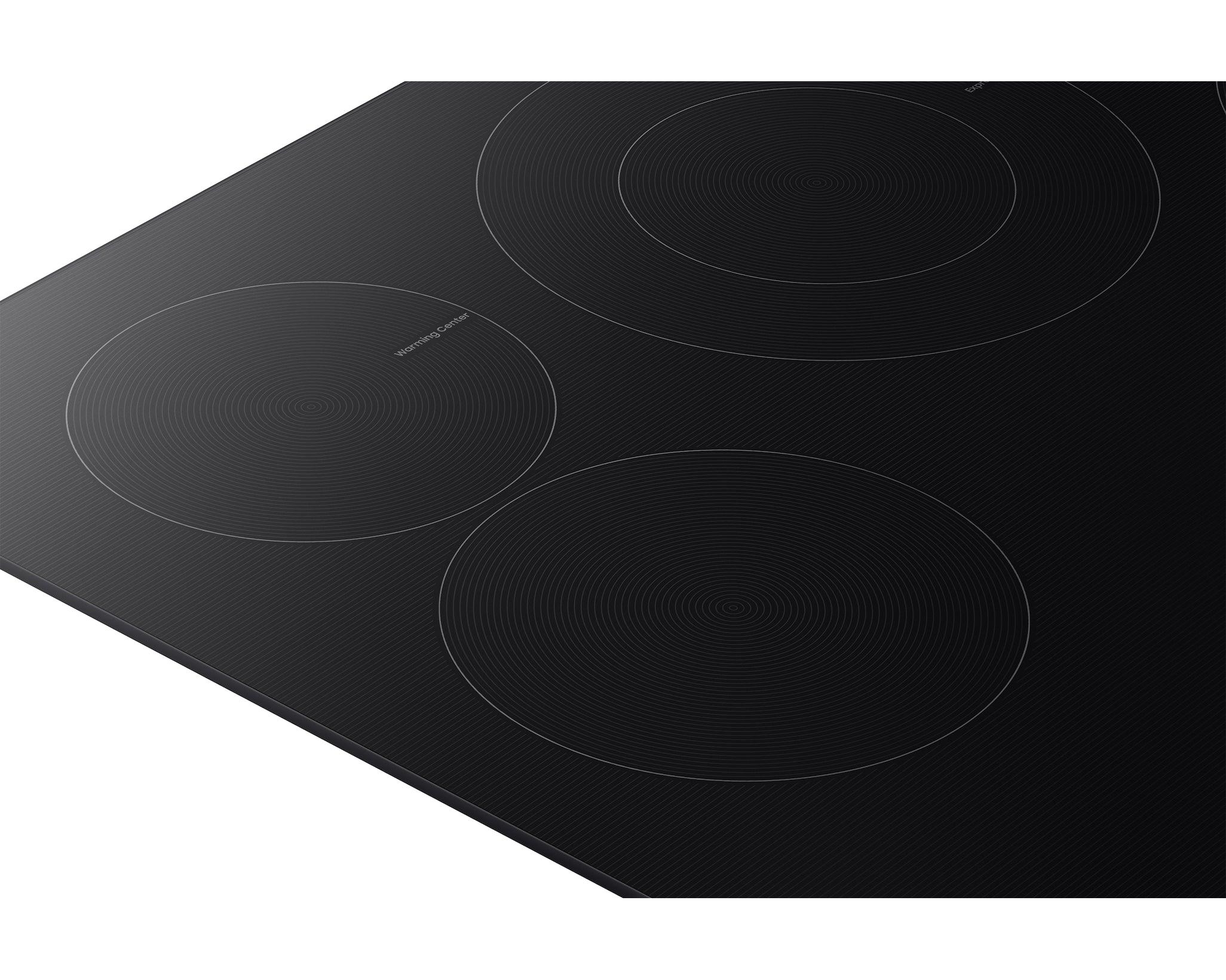

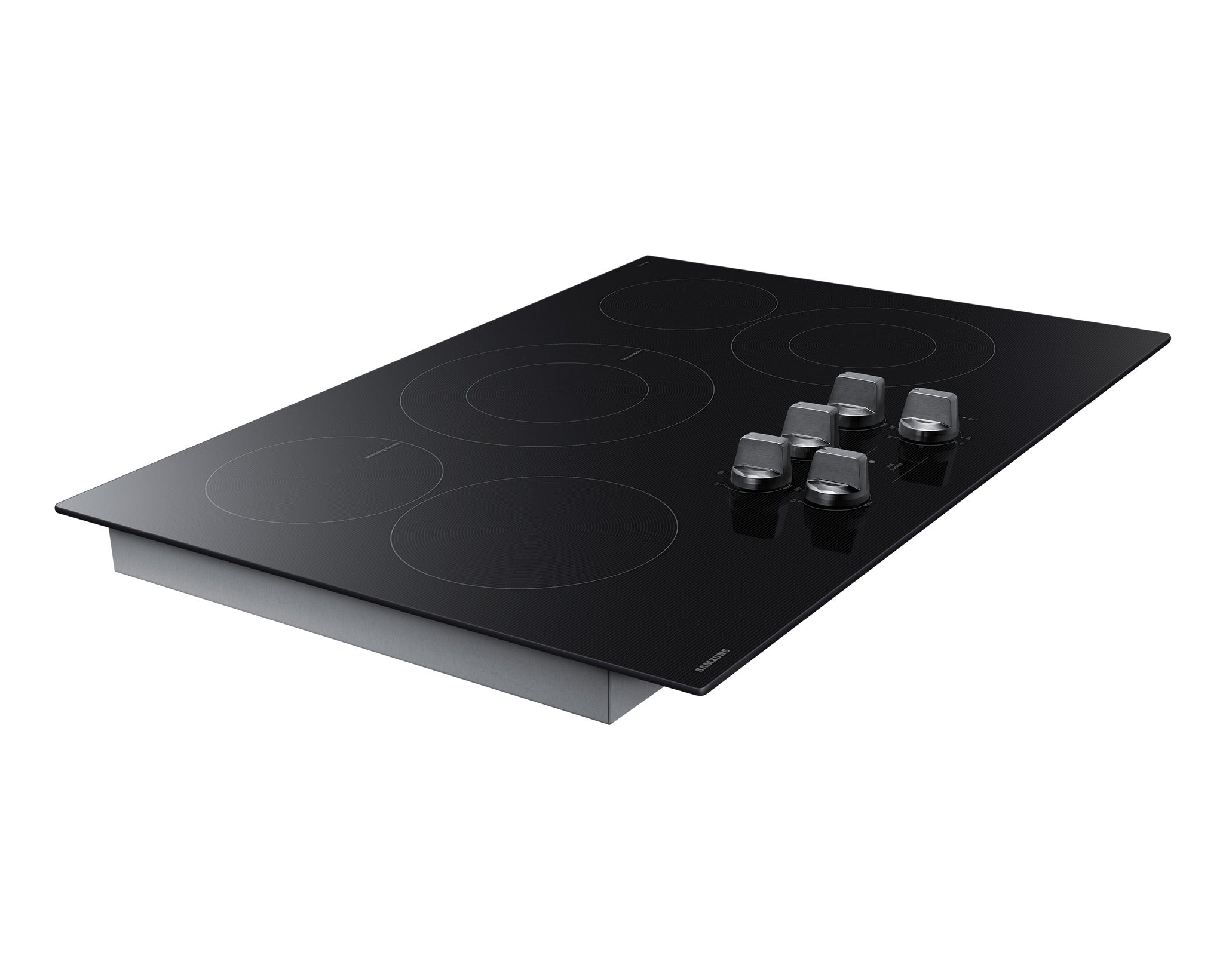

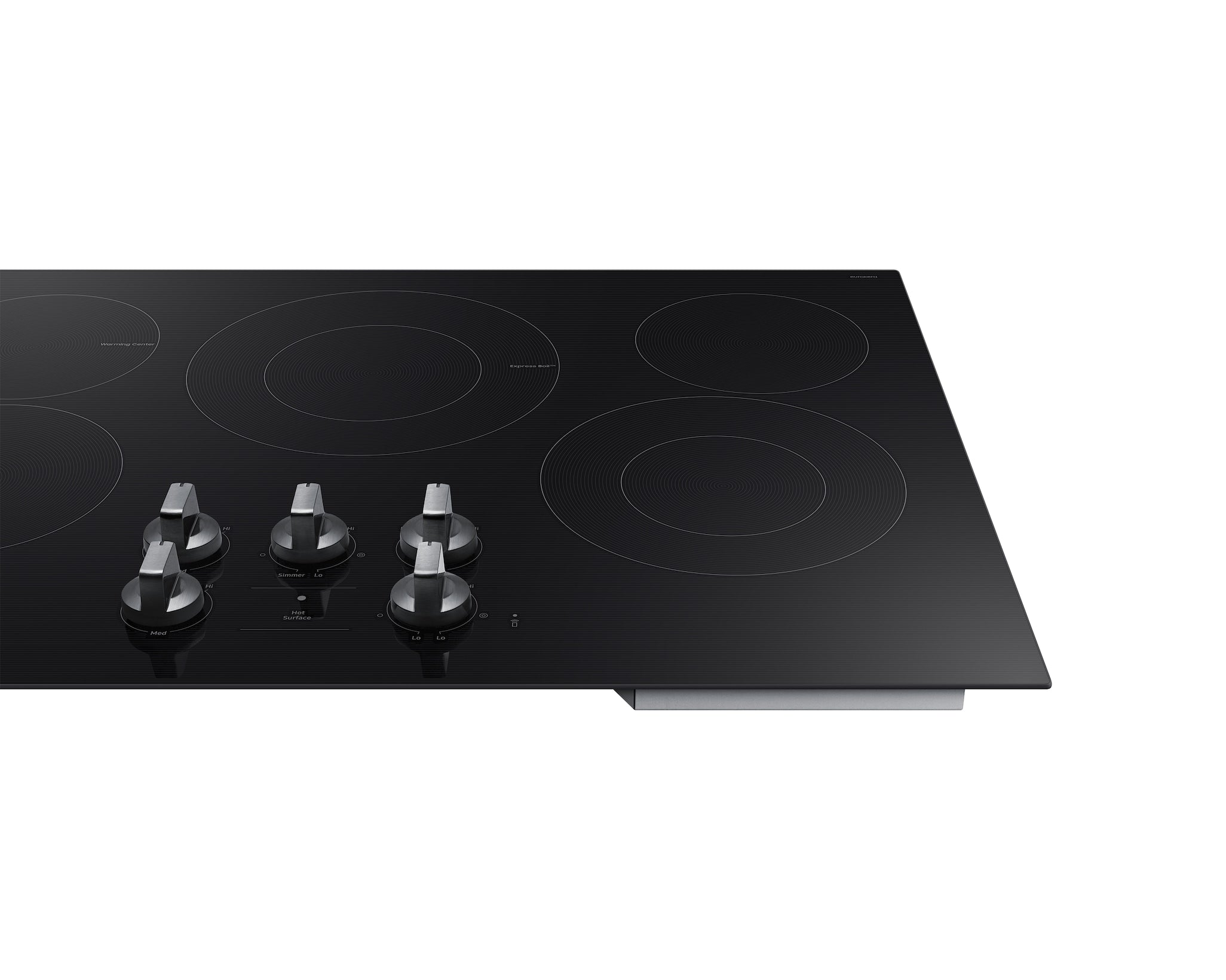

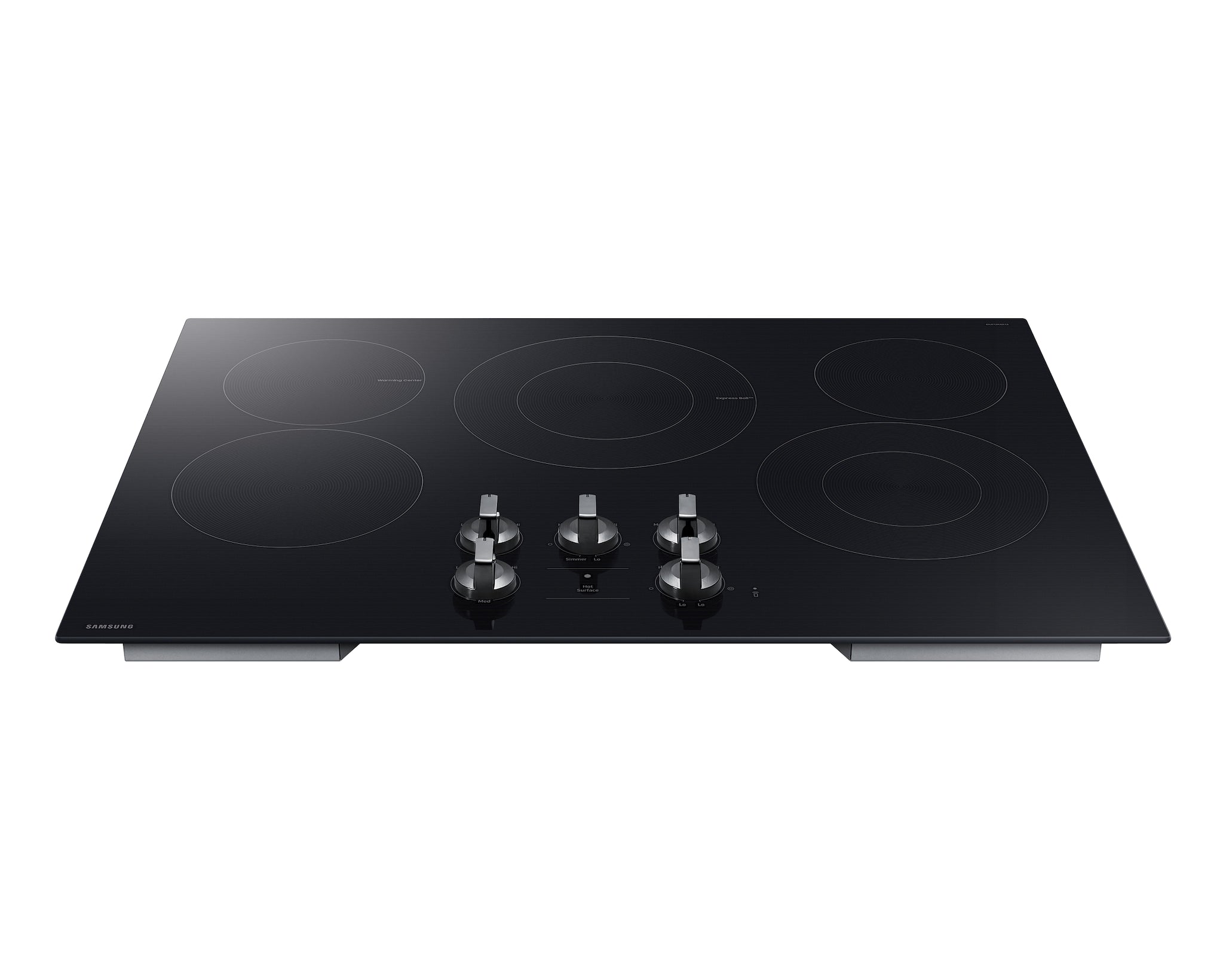

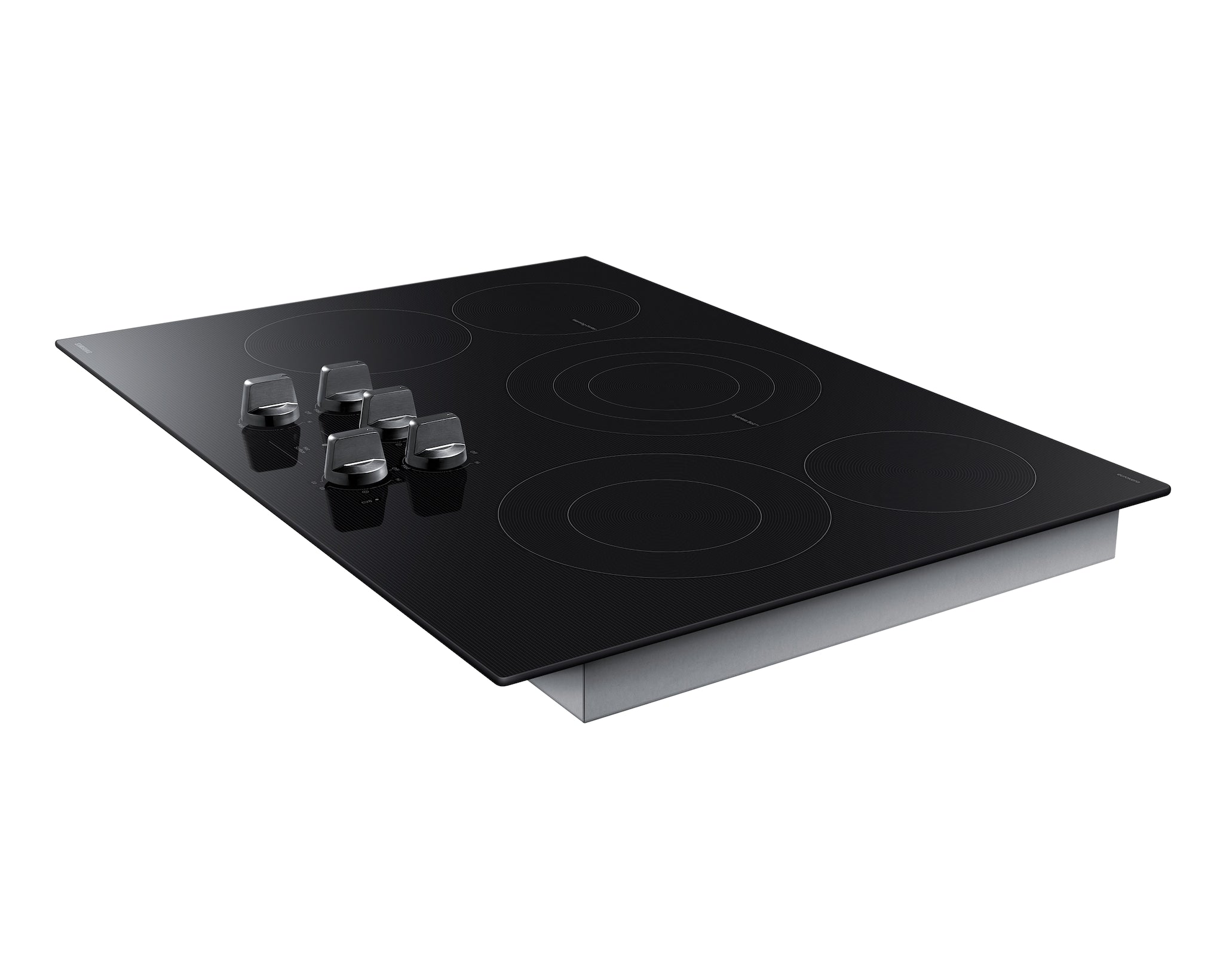

The SAMSUNG NZ30FG6332RKAA 30" Electric Cooktop uses powerful heat for fast and even cooking. The 5-element flexible cooktop includes a rapid boil burner with 2 rings for different sized pots and pans. It features blue LED illuminated knobs and a hot surface indicator light. The smooth glass, ceramic electric cooktop makes cleaning effortless.
- Rapid Boil burner provides a powerful, controlled heat source.
- The 5-element flexible cooktop includes a warming center.
- Blue LED lights illuminate when the cooktop is in use.
Product Highlights
This cooktop offers Wi-Fi connectivity, easy-to-clean glass surface, and front controls for easy access.
Product Information
Standard Information
-
Brand: SAMSUNG
-
Manufacturer Part Number: NZ30FG6332RKAA
Technical Specifications
-
Width: 30 Inches
-
Height: 5.125 Inches
-
Depth: 21.25 Inches
-
Installation Type: Built-in
-
Cooktop Frame: Frameless
-
Control Type: Mechanical Knob
-
Total Power (kW): 8.1 kW
-
Element - Left Front: 7”, 1500 W
-
Element - Left Rear: Warming center , 100 W
-
Element - Right Front: 5”/8”, 2000 W
-
Element - Right Rear: 6”, 1200 W
-
Element - Center: 6”/9”, 3300 W
-
Power Level: 3
-
Power Supply: 240V/60Hz (8.1 kW), 208V/60Hz (6.1kW)
-
ENERGY STAR® Certification: Yes
-
Child Safety Lock: No
-
Surface: Black Glass
-
Simmer/Melt: Yes
-
Kitchen Timer: No
-
Power On/Off: Yes
-
Number of Burner: 5 EA
-
Hot Surface Indicator: Yes
-
WiFi Embedded: Yes
-
Auto Connectivity (with Hood): No
-
SmartThings App Support: Yes
-
Package (WxHxD, inch): 34 1/4 X 7 1/4 X 25 1/16 inch
-
Cutout (WxHxD, inch): (28 1/2 - 28 11/16) X 5 3/8 X (19 9/16 - 19 5/8)
-
Net Size (W x H x D) (inches): 30 X 5 3/8 X 21 1/4 inch
-
Shipping Weight: 45.2 lbs , 20.5 kg
-
Net Weight (kg): 41 lbs , 18.6 kg
-
Loading Quantity (20/40ft): 264 / 540
-
Color: Black
-
Manufacturer Color: Black
-
Fuel Type: Electric
-
Type: Built-In
-
Burners/Elements: 5
-
Power Output: • Left Front: 1,500 W
• Left Rear: Warming Center, 100 W
• Right Front: 2,000 W
• Right Rear: 1,200 W
• Center: 3,300 W (Simmer/Rapid Boil)
-
Burner/Element Size: • Left Front: 7"
• Right Front: 5" / 8"
• Right Rear: 6", 1
• Center: 6" / 9"
-
Elements: Smoothtop
-
Surface Features: Easy-to-Clean Glass, Ceramic Cooktop
-
Technologies: Wi-Fi Connectivity
-
Wi-Fi: Yes
-
Additional Information: • Flexible Cooktop with Two Dual Elements
• Blue LED Illuminated Knobs
• Front Controls
• Rapid Boil Burner
• Hot Surface Indicator Light
• Dishwasher-Safe Knobs
-
Information: • 240 V
• 60 Hz
• 40 A
• 195 kWh/yr
-
ADA Compliant: Yes
-
Energy Star® Certified: Energy Star® Certified
-
Warranty: • One (1) Year All Parts and Labor
• Five (5) Years Parts Warranty for Glass Cooktop and Radiant Heater
-
Class Width: 30"
-
Weight: 41.01 lb(s) / 18.6 kg
-
Additional Dimensions: Cooktop Cutout Dimensions: 28 1/2" x 5 1/8" x 19 9/16"
-
SHIPPING DIMENSIONS Width: 34.25 inch(es) / 87 cm
-
SHIPPING DIMENSIONS Height: 7.25 inch(es) / 18.42 cm
-
SHIPPING DIMENSIONS Depth: 25.06 inch(es) / 63.66 cm
-
SHIPPING DIMENSIONS Weight: 45.19 lb(s) / 20.5 kg
