Product Description

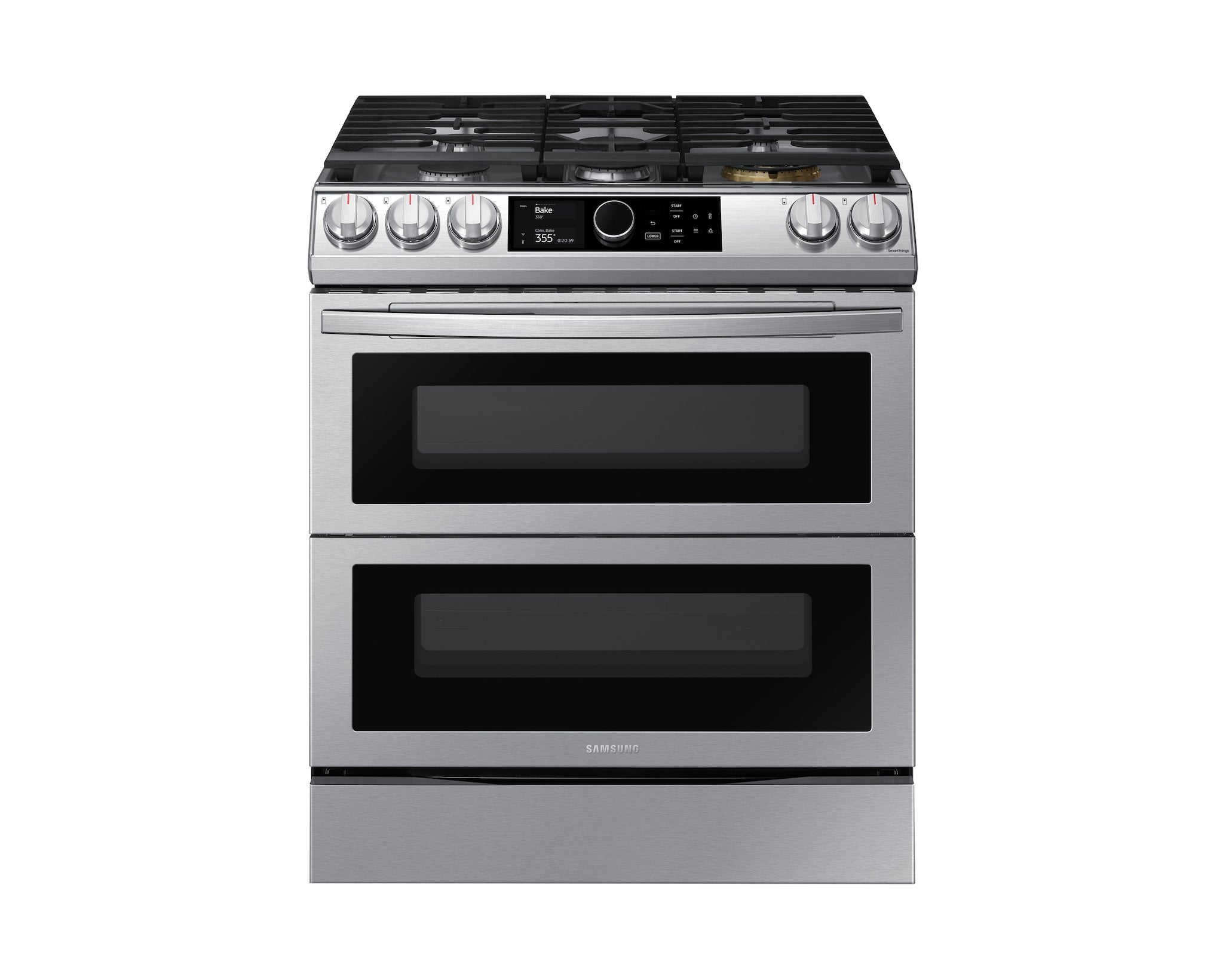

The SAMSUNG NY63T8751SS is a smart dual fuel slide-in range that brings style, convenience, and power to your kitchen. It features a modern, built-in look and provides intuitive messaging, remembering your cooking habits. The 23k Double Burner delivers powerful heat and precise control for fast and even cooking. The Flex Duo system allows upper and lower zones to work independently.
- Slide-in Design

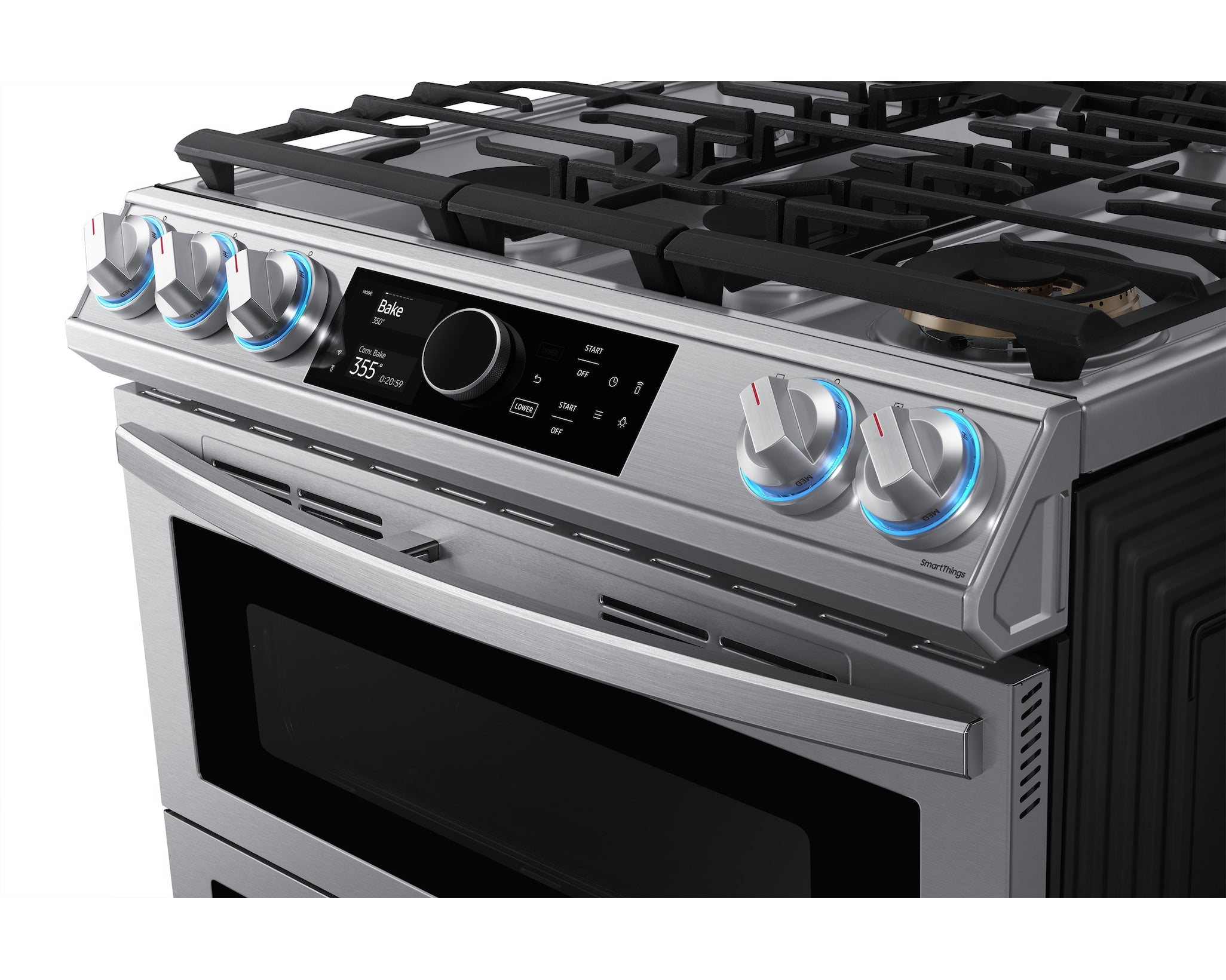

- Smart Dial
- Flex Duo™ with Dual Door
- Air Fry
Product Highlights
This range offers a true convection system, Wi-Fi connectivity, and a fingerprint-resistant finish. It also includes a self-cleaning system and various safety features.
Product Information
Standard Information
-
Brand: SAMSUNG
-
Manufacturer Part Number: NY63T8751SS
Technical Specifications
-
Capacity: 6.3 cu.ft
-
Number of Burner: 5 EA
-
Installation Type: Slide In
-
Oven Capacity: 6.3 cu.ft
-
Oven Capacity (Upper): 3.4 cu.ft
-
Oven Capacity (Lower): 2.7 cu.ft
-
Drawer Capacity: 1.0 cu.ft
-
Oven Colour: Dark Blue
-
Control Type (Oven): Glass Touch + Dial
-
Control Type (Cooktop): Knob
-
Display Type: LCD
-
Display Colour: White
-
Door Type: Dual Door (4 STSS Layers)
-
Soft Closing Door: Yes
-
Air Fry: Yes
-
Self Clean: Yes
-
Steam Clean: Yes
-
Wi-Fi Connection: Yes
-
Easy Cook: No
-
Healthy Cook: No
-
Favorite Cook: Yes
-
Keep Warm: Yes
-
Clock: Yes
-
Numeric Pad: No
-
Kitchen Timer: Yes
-
Child Safety Lock: Yes
-
Hidden Bake Element: No
-
Interior Light (Position): 2 Incandescent 40W(Back)
-
Light (Lamp) On/Off: Yes
-
Sound on/off: Yes
-
Setting (Clock System Option (12H/24H)): Yes
-
Delay Start: Yes
-
Sabbath Mode: Yes
-
Type: NG/LP
-
Cooktop Frame: STSS
-
Total Power: 63.5K
-

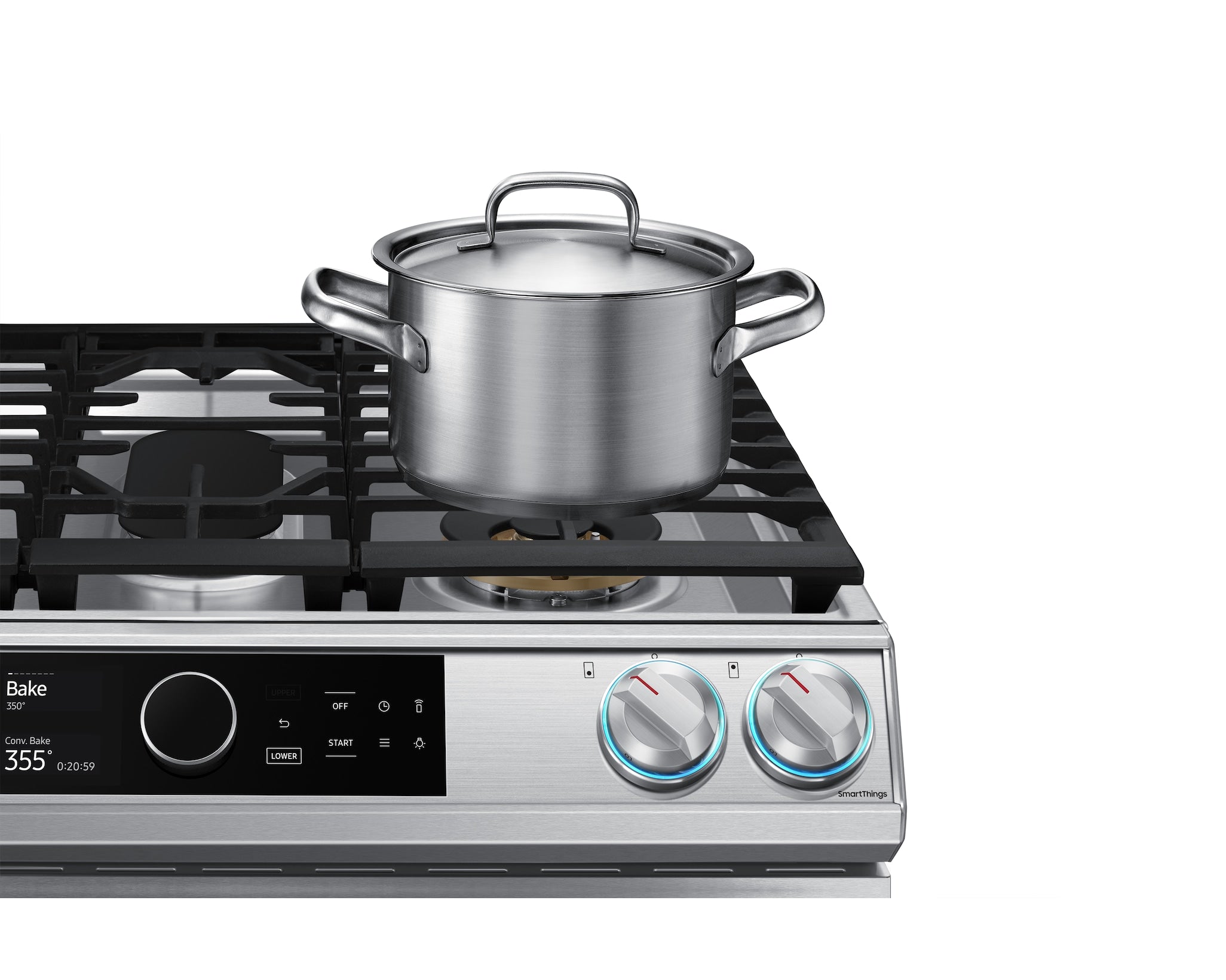

Burner 1: 23K - Right/Front
-
Burner 2: 16K - Left/Front
-
Burner 3: 5K - Right/Rear
-
Burner 4: 9.5K - Left/Rear
-
Burner 5: 10K - Center
-
Burner Cap: 5
-
Center Oval: Yes
-
Sealed Burner: Yes
-
Grate: Edge-to-Edge
-
Convection: True Convection
-
Bake (Single): 175°F (80°C) - 550°F (285°C)
-
Variable Broil (Low-High) (Single): Hi / Low
-
Convection Bake (Single): 175°F (80°C) - 550°F (285°C)
-
Convection Roast (Single): 175°F (80°C) - 550°F (285°C)
-
Variable Broil (Low-High) (Upper): Hi / Low
-
Convection Bake (Upper): 175°F (80°C) - 480°F (250°C)
-
Convection Roast (Upper): 175°F (80°C) - 480°F (250°C)
-
Bake (Lower): 175°F (80°C) - 480°F (250°C)
-
Convection Bake (Lower): 175°F (80°C) - 480°F (250°C)
-
Bake Element: 3000W
-
Broil Element: 4200W
-
Convection Heater Element: 1300W
-
Storage: Yes
-
Rail: Yes
-
Number of Rack Positions: 7
-
Air Fry Tray: Yes
-
Gliding Rack: 1
-
Broil Rack: No
-
Wire Rack: 1
-
Meat Probe: Yes
-

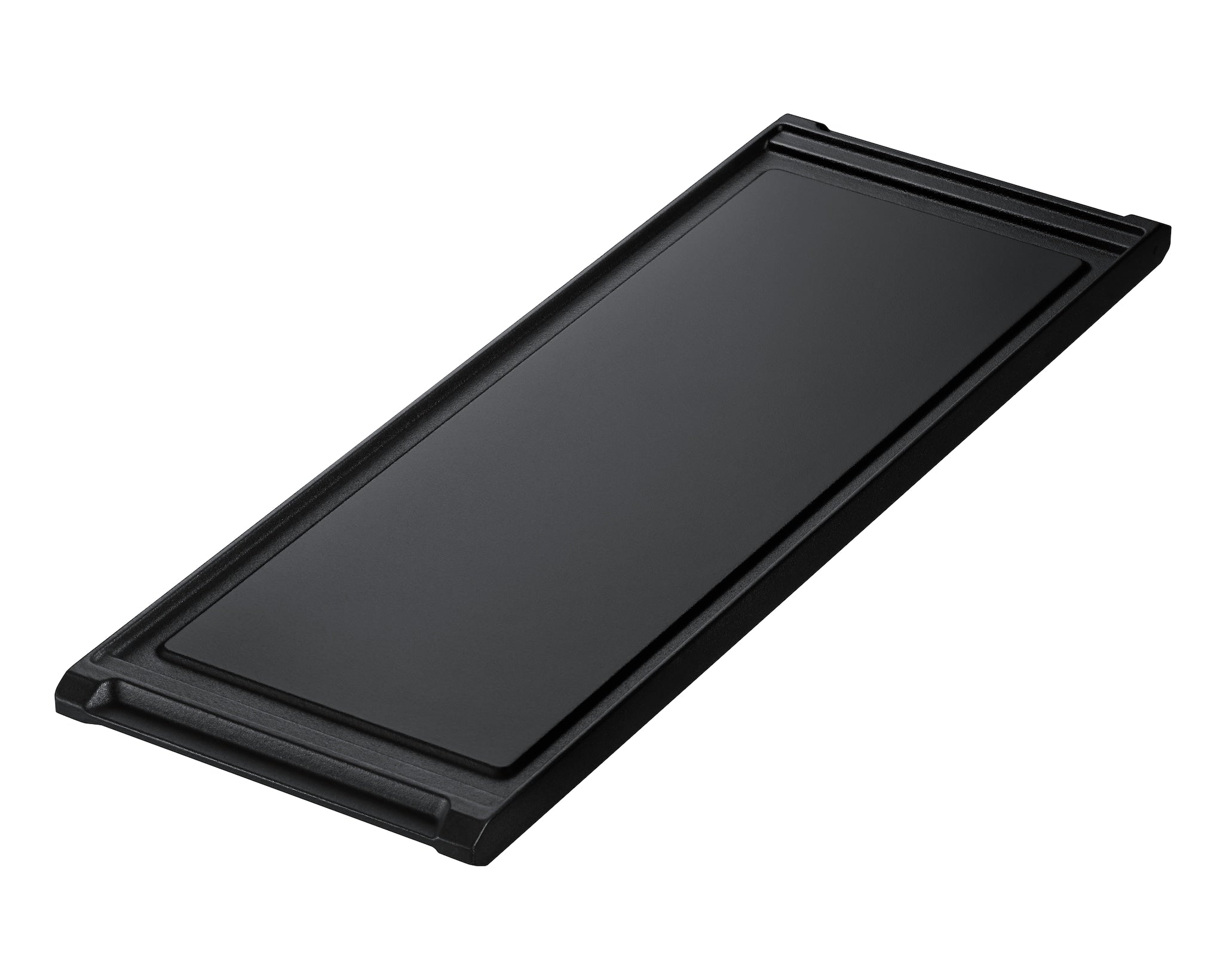

Griddle: Yes
-
WOK grate: Yes
-
Anti-Tip Device: Yes
-
Smart Divider: Yes
-
WiFi Embedded: Yes
-
SmartThings App Support: Yes
-
Fuel Type: Dual Fuel
-
Finishes: Stainless steel, black stainless steel
-
Number of oven racks: 1 upper, 2 lower
-
Number of oven rack positions: 7 total when used as a single oven; 3 upper, 3 lower when split
-
Oven features: Steam Self-Clean, True Convection, Convection Conversion, Air Fry, Dehydrate, Sabbath Mode (single oven mode only)
