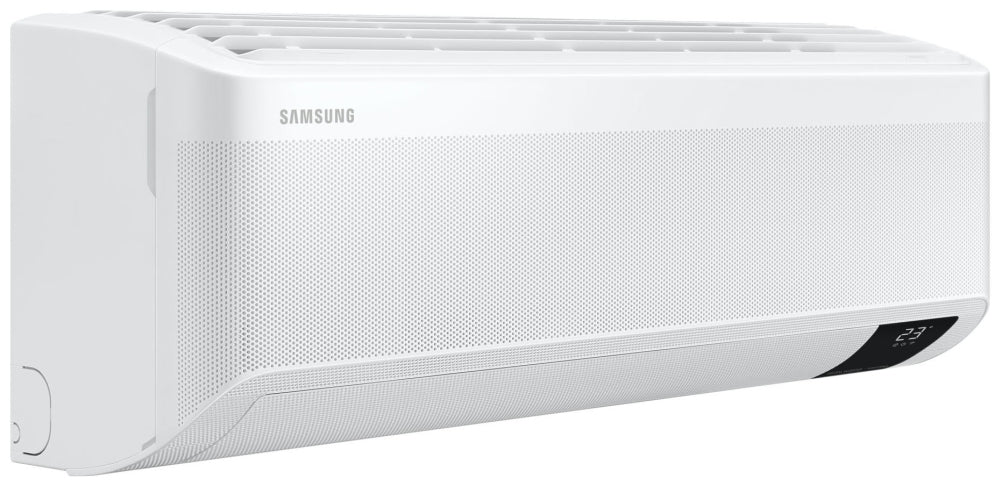

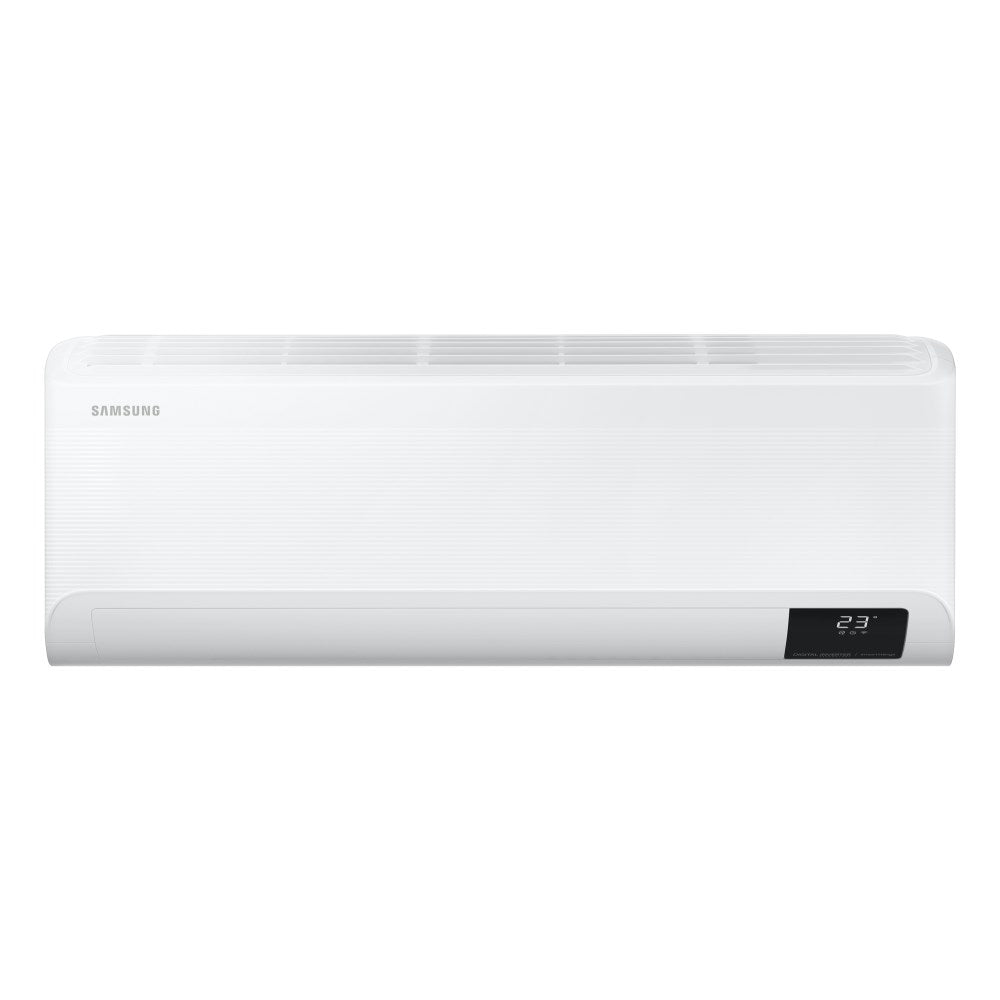

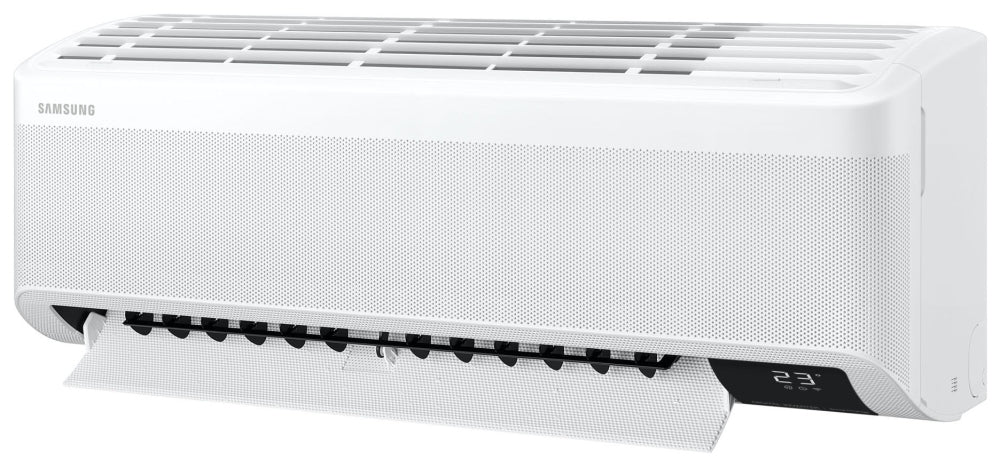

Samsung Hvac AR15TSFYBWKNCV Quantum 2.0 15K BTU Indoor Wall Evap for FJM (RNS15YBT)

Product Description

The Samsung HVAC AR15TSFYBWKNCV Quantum 2.0 is a multi-zone system indoor unit. Operating at 208 to 230 Volt AC and 60 Hertz, it features a cooling capacity of 15000 BTU/Hour and a heating capacity of 18000 BTU/Hour. Designed for wall mount installation, its enclosure is made of galvanized steel. It is ETL (Canada and US) approved and uses R-410A refrigerant.

• Features Wind-Free mode to prevent cold air drafts
• Built-in condensate pump with overflow detection
• Electro-static, washable, pleated filters included

Product Highlights

This indoor unit provides efficient cooling and heating with features like Wind-Free mode and a built-in condensate pump.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AR15TSFYBWKNCV

Technical Specifications

• Approval: ETL (Canada and US)
• Brand Name: Quantum 2.0
• Catalog Number: AR15TSFYBWKNCV
• Category: HVAC/R & Fans
• Cooling Capacity: 15000 BTU/Hour
• Current Rating: 0.4 Amp (Cooling/Heating)
• Enclosure Material: Galvanized Steel
• Frequency Rating: 60 Hertz
• Installation: Wall Mount
• Manufacturer Name: Samsung HVAC
• Manufacturer Part Number: AR15TSFYBWKNCV
• Number Of Phases: 1
• Power Rating: 27 Watt (Evaporator Fan)
• Voltage Rating: 208 to 230 Volt AC
• Heating Capacity: 18000 BTU/Hour
• Refrigerant Type: R-410A
• Airflow Rating: 406 CFM (Cooling)/423 CFM (Heating)
• Sound Level: 41 Decibel
• Pipe Connection: 1/4 Inch (Liquid), 3/8 Inch (Gas)
• Condensate Connection: 11/16 Inch Outer Diameter
• Fan Type: Cross Flow
