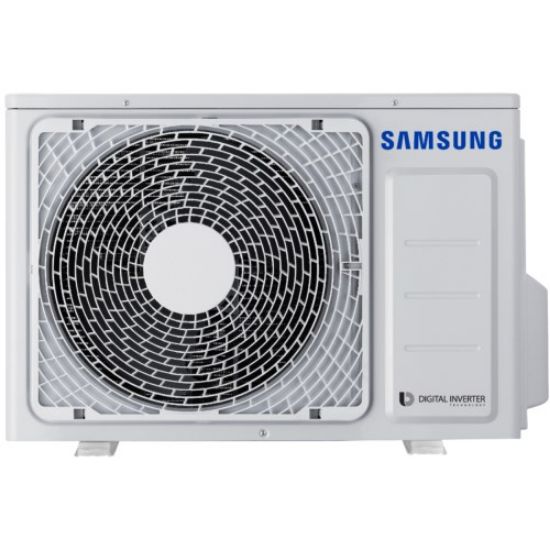

Samsung Hvac AR09TSFYBWKXCV Quantum 2.0 9K BTU Outdoor Unit (RXS09YBT)

Product Description

The Samsung HVAC AR09TSFYBWKXCV Quantum 2.0 9K BTU Outdoor Unit (RXS09YBT) is a split system outdoor unit with a voltage rating of 208 to 230 Volt AC. It features a cooling capacity of 9000 BTU/Hour and a heating capacity of 11000 BTU/Hour. The unit is constructed with a galvanized steel enclosure and a baked-on powder-coated finish. Includes line set, interconnect cable, indoor unit chassis mounting bracket and infrared remote control.

• ETL approved
• Operating temperature ranges from 14 to 115 Deg F (Cooling) and -5 to 75 Deg F (Heating)
• Energy Efficiency: 23.5 SEER/13.95 EER/12 HSPF

Product Highlights

This Samsung outdoor unit provides efficient cooling and heating with its BLDC rotary compressor and electronic expansion valve.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AR09TSFYBWKXCV

Technical Specifications

• Brand Name: Quantum 2.0
• Manufacturer Name: Samsung HVAC
• MPN: AR09TSFYBWKXCV
• Category: HVAC/R & Fans
• Cooling Capacity: 9000 BTU/Hour
• Heating Capacity: 11000 BTU/Hour
• Energy Efficiency: 23.5 SEER/13.95 EER/12 HSPF
• Refrigerant Type: R-410A
• Airflow Rating: 371 CFM/403 CFM (Cooling/Heating, Evaporator Fan), 1589 CFM (Condenser Fan)
• Sound Level: 37 Decibel
• Pipe Connection: 1/4 Inch (Liquid), 3/8 Inch (Gas)
• Condensate Connection: 11/16 Inch Outer Diameter
• Compressor Type: BLDC Rotary
• Fan Type: Propeller
• Approval: ETL
• Input Voltage: 208 to 230 Volt AC
• Current Rating: 5.4 Amp (Cooling), 9.1 Amp (Heating), 12 Amp (Minimum Circuit Ampacity), 9 Amp Rated Load (Compressor), 0.12/0.18 Amp Full Load (Evaporator/Condenser Fan), 20 Amp (Maximum Overcurrent Protection)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 27 Watt (Evaporator Fan), 40 Watt (Condenser Fan), 4.09 Kilowatt (Compressor)
• Operating Temperature: 14 to 115 Deg F (Cooling), -5 to 75 Deg F (Heating)
• Installation: Wall Mount
• Enclosure Material: Galvanized Steel, HIPS (Casing)
• Enclosure Finish: Baked on Powder Coated
• Cooling Coefficient: 3.75
• Connection Type: Terminal Block
• Includes: Line Set - Insulated and Flared, Interconnect Cable, Indoor Unit Chassis UL94 V0 Galvanized Steel Mounting Bracket, Infrared Remote Control
• Applicable Standard: AHRI
• UNSPSC Code: 40101701
• Model code: AR09TSFYBWKXCV
• Series: Quantum 2.0
• Product Type: Mini-Split Single-Zone
• Air Flow: 300/335/353/371 cfm Cooling (L/M/H/Turbo), 307/335/350/364 cfm Heating (L/M/H/Turbo)
• Noise Rating: 45dB
• Phase: 1
• Unit Type: Outdoor
• Breaker Size: 20A
• Control: Electronic Expansion Valve
• Minimum Circuit Amperage: 12A
• Temperature Rating: 14 - 115 Deg F Cooling, 5 - 75 Deg F Heating
• Capacity in Tons: 0.75 tons
