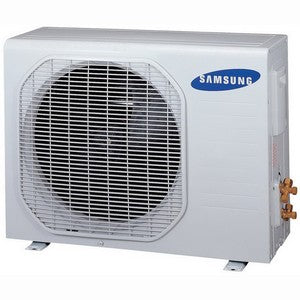

Samsung Hvac Aqv12vbex Vivace 12k Outdoor Unit

Product Description

The SAMSUNG HVAC AQV12VBEX is a Vivace 12k outdoor unit designed for ductless heat pump systems. It features a cooling capacity of 12000 BTUH and operates at 208/230V and 60 Hz. The unit's dimensions are 31.1 inch W x 11.2 inch D x 21.6 inch H, with a sound rating of 53 dBa.

• Cooling Capacity: 12000 BTUH
• SEER Rating: 19
• Sound Rating: 53 dBa

Product Highlights

Outdoor unit for ductless heat pump systems, offering efficient cooling and heating with a compact design.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AQV12VBEX

Technical Specifications

• Type: Ductless
• Unit Type: Outdoor
• Cooling Capacity: 12000 BTUH
• SEER: 19
• Sound Rating: 53 dBa
• Voltage Rating: 208/230V
• Frequency Rating: 60 Hz
• Capacity in Ton: 1 ton
• Phase: 1-Phase
• HSPF: 9
• Suction Line Size: 3/8 inch
• Liquid Line Size: 1/4 inch
• Dimensions: 31.1 inch W x 11.2 inch D x 21.6 inch H
• Blower Type: Propeller
• Dehumidifying: 1.4 l/h
• Operating Current: 5.2A
• Operating Temperatures Heating: 14 to 115 Deg F
• Power Consumtion: 1050W
• Max Fuse: 10A
