Samsung Hvac AJ018TNJDCH/AA Console 18K BTU 2.0 (JNH18JDT)

Product Description

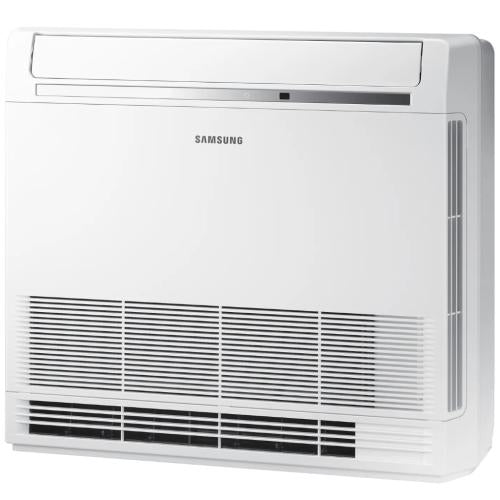

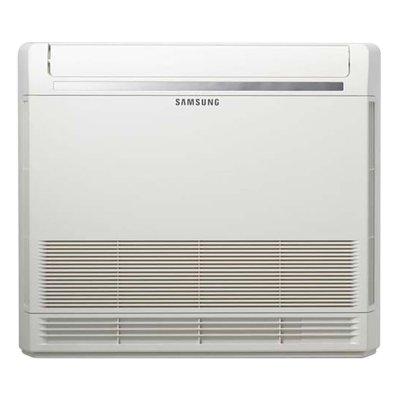

The Samsung HVAC AJ018TNJDCH/AA console is a heat pump indoor unit. This deluxe console unit has a voltage rating of 208 to 230 Volt AC and a frequency rating of 60 Hertz. It features electronic expansion valve temperature control and is suitable for floor or wall mount installation in light commercial and residential applications.

• Horizontal discharge airflow
• Low ambient control built in
• Auto-restart after power loss

Product Highlights

This console unit delivers both heating and cooling and can be installed on the floor or low on a wall, making it a great option for replacing a radiator.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AJ018TNJDCH/AA

Technical Specifications

• Type: Console, Deluxe
• Voltage Rating: 208 to 230 Volt AC
• Current Rating: 0.35 Amp (Running Current), 0.35 Amp Full Load (Fan)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 35 Watt (Fan Motor)
• Cooling Capacity: 17700 BTU/Hour
• Temperature Control Type: Electronic Expansion Valve
• Installation: Floor/Wall Mount
• Enclosure Material: High Impact Polystyrene (Casing)
• Approval: ETL (Canada and US)
• Heating Capacity: 19100 BTU/Hour
• Refrigerant Type: R-410A
• Airflow Rating: 332 CFM
• Sound Level: 42 Decibel (Fan)
• Pipe Connection: 1/4 Inch (Liquid), 1/2 Inch (Suction), 1 Inch Inner Diameter Drain
• Category: Cooling
• Manufacturer Name: Samsung HVAC
• Series/Model: FJM
• Manufacturer Part Number: AJ018TNJDCH/AA
• Make: Samsung
• Manufacturer: Samsung HVAC
• Model code: AJ018TNJDCH/AA
• Series: Console
• Power: 15,000 ~ 20,000 BTU/H
• Electrical: 208-230/1/60 V/phase/Hz
