Samsung Hvac AC018MXSCCC/AA Cond Unit -40 Degree Low Ambient Cooling Only

Product Description

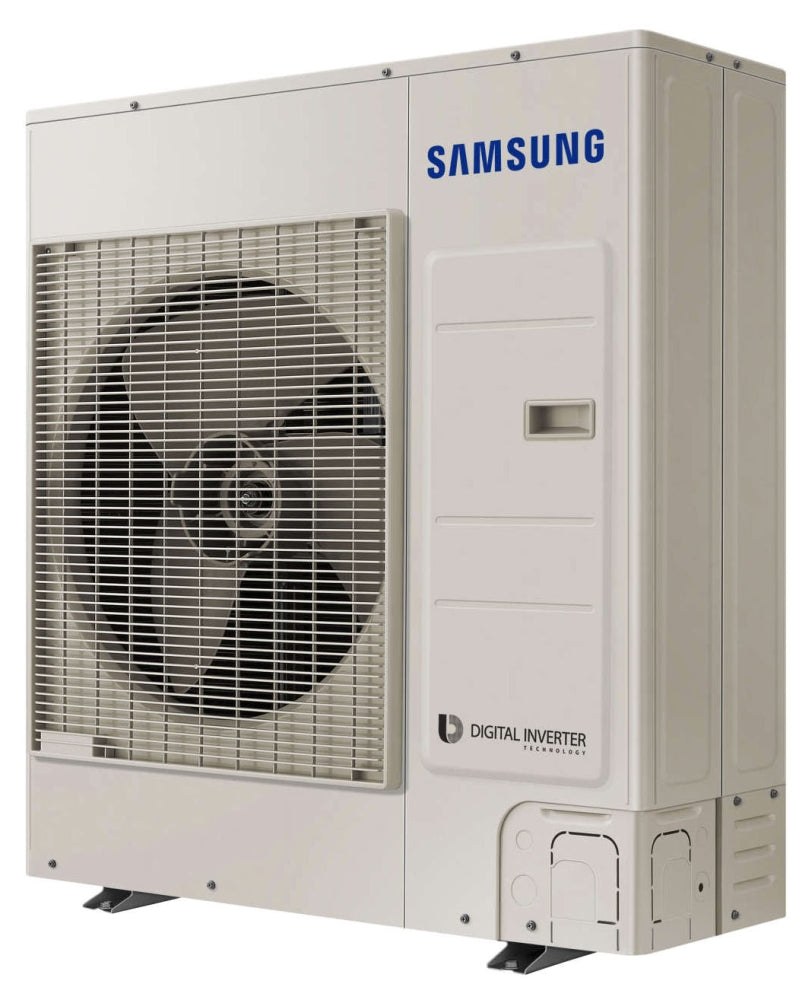

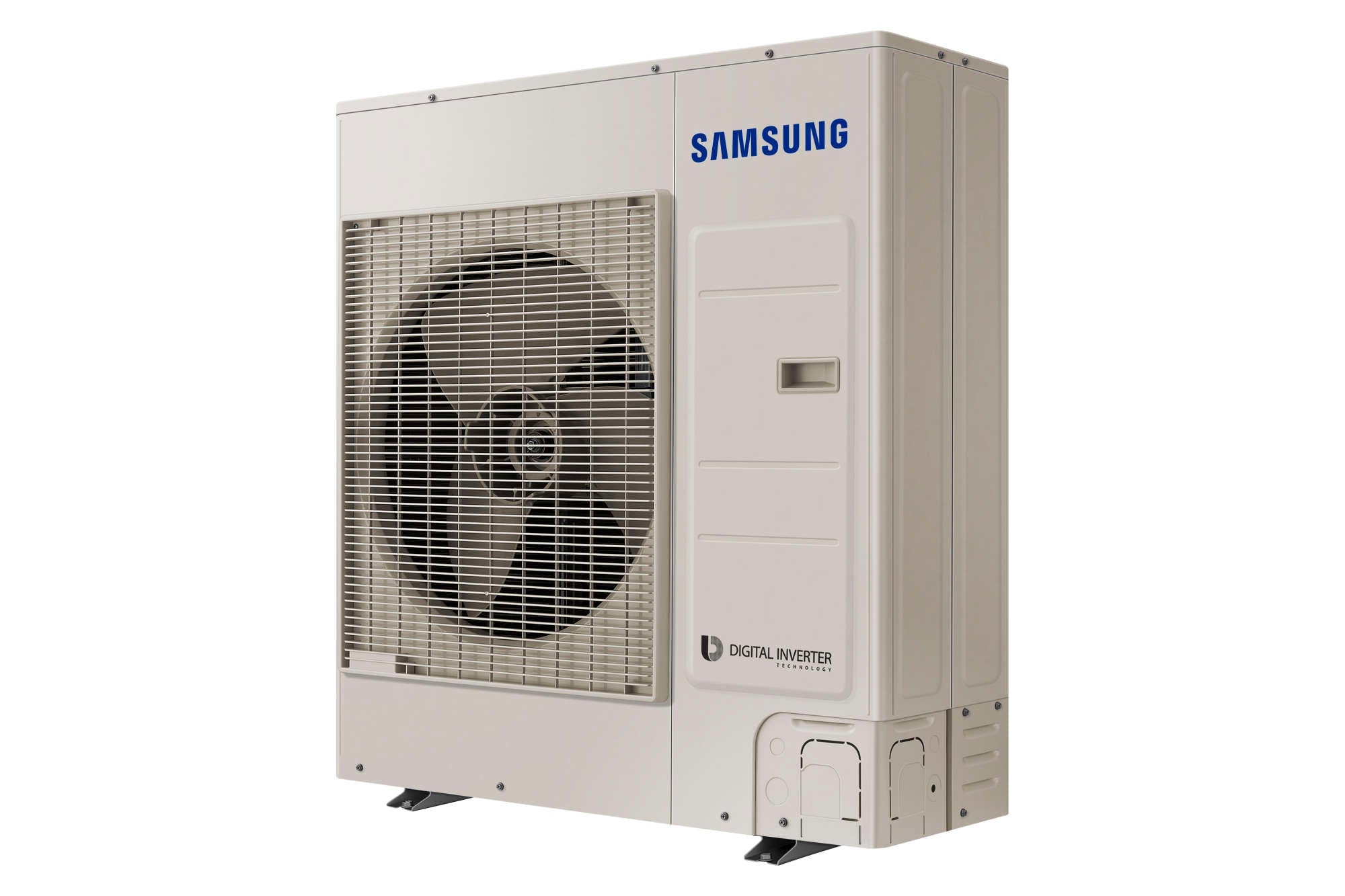

The SAMSUNG HVAC AC018MXSCCC/AA is a high-wall evaporator split system outdoor unit designed for low ambient cooling. It operates on 208 to 230 Volt AC and features a cooling capacity of 18000 BTU/Hour. Constructed with a galvanized steel enclosure and baked-on powder-coated finish, it is suitable for commercial applications.

• Wall-mounted evaporator
• Low ambient cooling to -40 Deg
• Auto-restart after power loss

Product Highlights

This unit features a BLDC rotary compressor, BLDC fans, and multiple protection features. It is ETL (Canada and US) and UL 1995 approved.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AC018MXSCCC/AA

Technical Specifications

• Type: Low Ambient Cooling, Low Temperature, Deluxe
• Voltage Rating: 208 to 230 Volt AC
• Current Rating: 10.5 Amp (Operating), 13 Amp (Minimum Circuit Ampacity), 9 Amp Rated Load (Compressor), 0.7/0.9 Amp Full Load (Evaporator/Condenser Fan), 15 Amp (Maximum Overcurrent Protection)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 27 Watt (Evaporator Fan), 89 Watt (Condenser Fan), 1.42 Kilowatt (Compressor)
• Cooling Capacity: 18000 BTU/Hour
• Connection Type: Terminal Block
• Operating Temperature: 23 to 115 Deg F
• Installation: Wall Mount
• Enclosure Material: Galvanized Steel
• Enclosure Finish: Baked on Powder Coated
• Size: 34-5/8 Inch Width x 12-3/16 Inch Depth x 25-1/8 Inch Height
• Approval: ETL (Canada and US), UL 1995
• Heating Capacity: 20000 BTU/Hour
• Energy Efficiency: 18.8 SEER/9.05 EER
• Refrigerant Type: R-410A
• Airflow Rating: 406 CFM (Evaporator)/1412 CFM (Condenser)
• Sound Level: 42 Decibel
• Pipe Connection: 1/4 Inch (Liquid), 1/2 Inch (Gas)
• Condensate Connection: 1-1/16 Inch Outer Diameter
• Compressor Type: Inverter Driven BLDC Rotary
• Fan Type: BLDC with Crossflow (Evaporator), BLDC with Axial (Condenser)
• Application: Commercial
• Applicable Standard: AHRI
