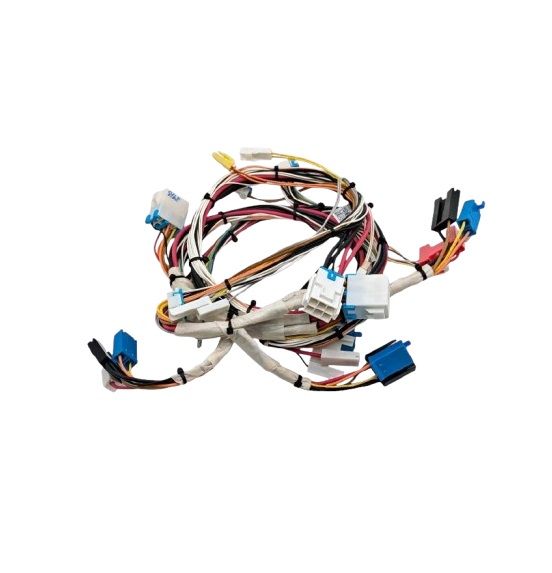

Samsung dg96-00816e Wire Harness Sub Assembly

Product Description

The SAMSUNG dg96-00816e is a wire harness sub assembly designed for Samsung residential electric ranges. It routes electrical signals and power between control boards, heating elements, and other internal components, maintaining reliable circuit continuity throughout the appliance. Rated for 240 volts, this harness is an OEM-style replacement part intended for installation by qualified appliance technicians or experienced service professionals. It is a direct fit for select Samsung range models and restores proper electrical interconnection when the original harness is damaged, corroded, or has failed continuity.

This wire harness sub assembly is used in Samsung electric range service and repair applications. It is referenced for use with the NE63T8711S model series. Typical installation scenarios include range teardown for element replacement, control board swap, or harness damage repair. The part is intended for residential kitchen appliance service.

Key Features

• Rated for 240-volt electric range applications
• OEM-style replacement restoring original circuit routing
• Designed for Samsung electric range internal wiring systems
• Addresses harness failure, corrosion, or open-circuit faults
• Direct-fit design for referenced Samsung range models

Compatibility

Compatible with the Samsung NE63T8711S electric range model series, as noted in product reference data.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power at the circuit breaker and verify the range is fully de-energized before handling any internal wiring. Route and secure the new harness following the original harness path to avoid contact with heating elements or sharp edges. Refer to the Samsung service manual for connector identification and routing diagrams specific to this model.

Technical Specifications

• Voltage Rating: 240 volts
• Part Type: Wire Harness Sub Assembly

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: dg96-00816e
