Samsung de96-01096c Main Wire Harness Assembly

Product Description

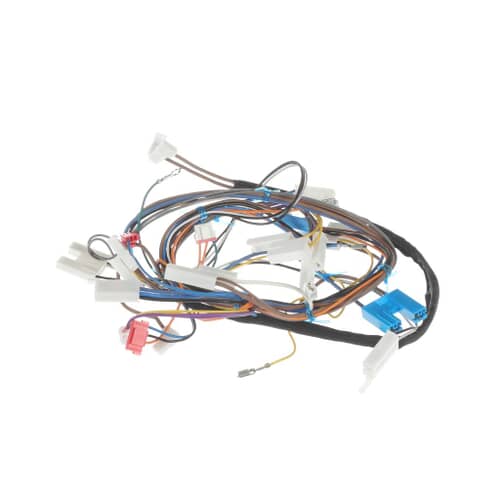

The SAMSUNG de96-01096c is a main wire harness assembly designed as an OEM replacement component for Samsung microwave ovens. This harness serves as the central electrical interconnect, routing power and low-voltage control signals between the primary circuit board, door switches, magnetron, and other internal components. It is a direct factory-spec part intended for installation by qualified appliance service technicians performing electrical component replacement on Samsung microwave units.

This wire harness assembly is suited for service and repair of Samsung over-the-range and countertop microwave ovens where the main harness has failed due to heat damage, burnt connectors, or broken wire routing. Based on the part number reference MS19DG8500, this assembly is associated with that Samsung microwave model series. Technicians performing warranty or out-of-warranty repairs will find this part appropriate for restoring proper electrical function to affected units.

Key Features

• OEM Samsung main wire harness for direct, fit-verified replacement
• Routes power and control signals to core microwave components
• Factory-spec connector terminations for secure, reliable mating
• Designed to match original harness routing and length within the appliance cabinet

Compatibility

Referenced in the part data for the MS19DG8500 Samsung microwave model series. Verify fitment against the full model number on the appliance label before ordering.

Installation Notes

Installation should be performed by a qualified appliance service technician. Before beginning any work, disconnect the microwave from its power source and allow capacitors to fully discharge, as microwave high-voltage capacitors can retain a lethal charge even after unplugging. Follow all applicable electrical safety practices and manufacturer service documentation when routing and reconnecting the harness. Do not force connectors — each terminal is keyed for correct orientation.

Technical Specifications

• Component Type: Main Wire Harness Assembly
• Part Series Reference: MS19DG8500

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: de96-01096c
