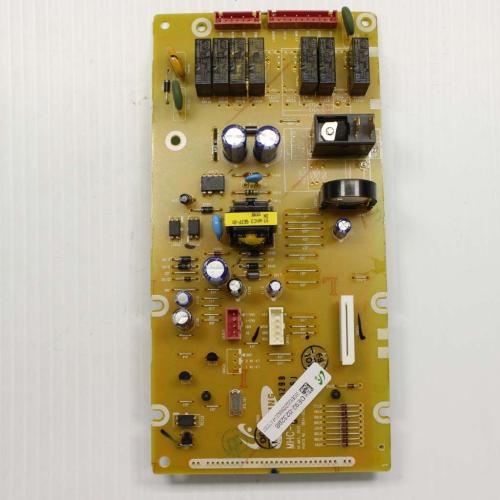

Samsung de92-02329b Main Pcb Assembly 120V 60hz

Product Description

The SAMSUNG de92-02329b is a main PCB assembly designed as the primary control board for Samsung microwave ovens. This circuit board manages core oven functions including power output, user interface communication, and operational sequencing. Rated at 120 volts, 60 Hz, and 8 watts, it is engineered to OEM specifications for direct replacement of a failed or damaged control board. Installation is typically performed by appliance service technicians with experience in microwave electronics. The board is identified by a VFD display interface and MHC-3 configuration, consistent with Samsung home appliance design standards.

This main PCB assembly is intended for use in Samsung microwave ovens requiring a direct OEM-equivalent control board replacement. It is suited to residential service applications where the existing board has failed due to component burnout, power surge damage, or age-related failure. Technicians replacing this board should verify the full model number of the host appliance against Samsung service documentation before ordering to confirm fitment.

Key Features

• OEM Samsung main PCB assembly for direct replacement service
• Rated 120 volts, 60 Hz, 8 watts for standard North American residential power
• VFD display interface configuration (MHC-3 type)
• Manages primary microwave oven control and operational sequencing
• Manufactured to Samsung home appliance engineering standards

Compatibility

Designed as an OEM-style replacement main PCB assembly for compatible Samsung microwave oven models. Verify the host appliance model number against Samsung service documentation prior to installation to confirm compatibility.

Installation Notes

Main PCB assemblies in microwave ovens must be replaced by a qualified appliance service technician. Always disconnect the unit from its power source and discharge the high-voltage capacitor before accessing internal components, as microwave ovens retain dangerous charge levels even after power is removed. Follow applicable local electrical codes and Samsung service procedures when reconnecting wiring harnesses and securing the board to the chassis.

Technical Specifications

• Voltage: 120 volts
• Frequency: 60 Hz
• Power: 8 watts
• Display Interface: VFD
• Configuration: MHC-3

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: de92-02329b
