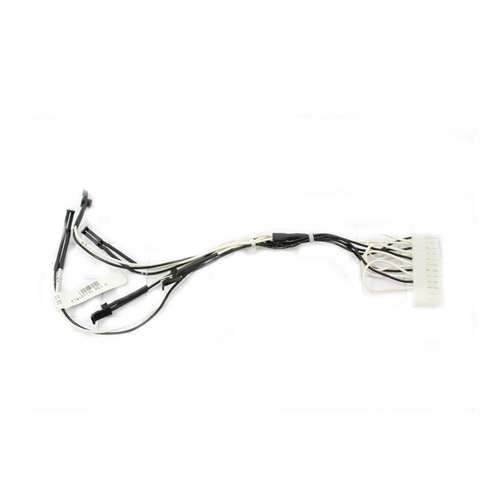

Samsung DE81-06742A Wire Harness 5 Vdc

Product Description

The SAMSUNG DE81-06742A is a 5 VDC wire harness service replacement part designed for Samsung appliances. Wire harnesses route and protect low-voltage electrical connections between internal components, ensuring stable signal and power transmission throughout the unit. This part is manufactured to original equipment specifications, making it a direct-fit replacement when the factory harness shows signs of wear, heat damage, or failed connections. Installation is typically performed by appliance service technicians during diagnostic repair procedures.

This wire harness is used in Samsung appliance repairs where the existing harness has degraded or caused intermittent electrical faults. It restores proper low-voltage communication between control boards and connected components. The 5 VDC rating indicates it carries low-voltage logic or sensor signals rather than line voltage. Specific compatible Samsung model numbers were not provided in the product data; refer to Samsung parts documentation or the unit service manual to confirm fitment before ordering.

Key Features

• 5 VDC rated low-voltage wire harness
• Manufactured to original equipment specifications
• Direct-fit replacement for compatible Samsung appliances
• Restores proper electrical signal routing between internal components

Compatibility

Designed as an OEM-style replacement wire harness for compatible Samsung appliances. Confirm model-specific fitment using the Samsung parts catalog or unit service manual prior to installation.

Installation Notes

Appliance service technicians should disconnect the unit from line power and allow capacitors to discharge before handling any internal wiring. Route the replacement harness following the original path to avoid contact with heat sources or moving parts. Consult the unit service manual for connector locations and seating requirements. Do not force connectors; misaligned pins can cause intermittent faults or component damage.
