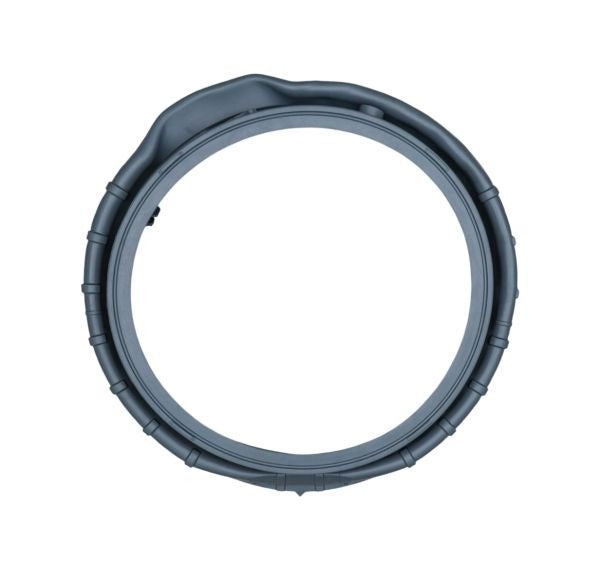

Samsung dc64-03788c Washer Door Diaphragm

Product Description

The SAMSUNG dc64-03788c is a washer door diaphragm designed to form a watertight seal between the door and the outer tub on front-load washing machines. This rubber gasket mounts around the front opening of the wash tub and seats into a retaining channel to hold its position relative to the door assembly. It works in conjunction with the outer tub, door frame, retaining clamps, and front panel to accommodate drum movement while keeping the wash area sealed. Licensed appliance technicians and experienced service professionals typically handle this replacement to ensure proper fitment and leak-free operation.

This door diaphragm is suited for front-load washer service applications where the original gasket has developed tears, mold buildup, or loss of sealing integrity. The part is identified in the raw title as compatible with WF6000R, TPET2, and ER9000DA system designations. It installs around the drum opening and must seat fully into the retaining channel before the clamp ring is secured. Proper alignment during installation is critical to preventing water leakage during the wash and spin cycles.

Key Features

• Forms a watertight seal between the door glass and outer wash tub
• Seats into a dedicated retaining channel for secure, consistent positioning
• Accommodates drum movement during wash and spin cycles without compromising the seal
• OEM replacement part for the listed compatible model designations
• Designed to prevent water leakage and support efficient washing performance

Compatibility

Compatible with Samsung washer models and system designations including WF6000R, TPET2, and ER9000DA as indicated in the product data.

Installation Notes

Installation is typically performed by a licensed appliance repair technician. Disconnect power to the washer and shut off the water supply before beginning work. The old diaphragm clamp ring must be fully removed before the gasket can be pulled free from the tub flange. Ensure the new diaphragm is fully seated in both the tub retaining channel and the door frame channel before reinstalling the clamp ring to avoid leaks during operation.
