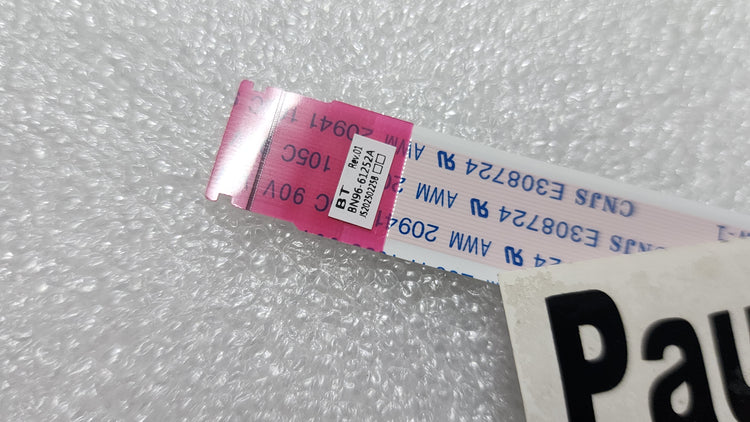

Samsung bn96-61252a Ffc Flat Flex Cable

Product Description

The SAMSUNG bn96-61252a is a flat flex cable (FFC) designed for internal display connection in Samsung flat-panel televisions. This cable serves as the signal pathway between internal display assemblies, transmitting video and control data across a folded-routing configuration at a 470mm length. It is an OEM-specification replacement component installed by electronics repair technicians and qualified service professionals working on Samsung display assemblies.

This flat flex cable is intended for use in Samsung television service and repair scenarios where the original cable has been damaged, creased, or has developed an open circuit. The folded configuration and specified length are matched to the internal routing geometry of the target display chassis, making precise part identification critical before ordering.

Key Features

• OEM-specification flat flex cable for Samsung display assemblies
• Folded routing configuration matched to chassis internal layout
• 470mm cable length for precise fitment to OEM routing path
• Transmits video and control signals between internal display components
• Direct OEM part number replacement for exact-fit service

Compatibility

Referenced fitment includes the QA65LS03FAKXXV display chassis based on supplier data. Confirm part number against the specific chassis service manual before installation, as flat flex cables are not interchangeable across display generations.

Installation Notes

Installation is performed by qualified electronics repair technicians. Disconnect all power and allow capacitors to discharge fully before opening the display enclosure. Flat flex cables are highly sensitive to kinking and tearing during handling — do not force connectors and ensure the locking latch on each ZIF or LIF connector is fully released before seating or removing the cable. Follow applicable ESD precautions throughout the repair.

Technical Specifications

• Cable Type: Flat Flex Cable (FFC)
• Routing Style: Fold configuration
• Cable Length: 470mm

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: bn96-61252a
