Samsung bn96-56963a Flat Flex Cable QN77S95CAFXZA

Product Description

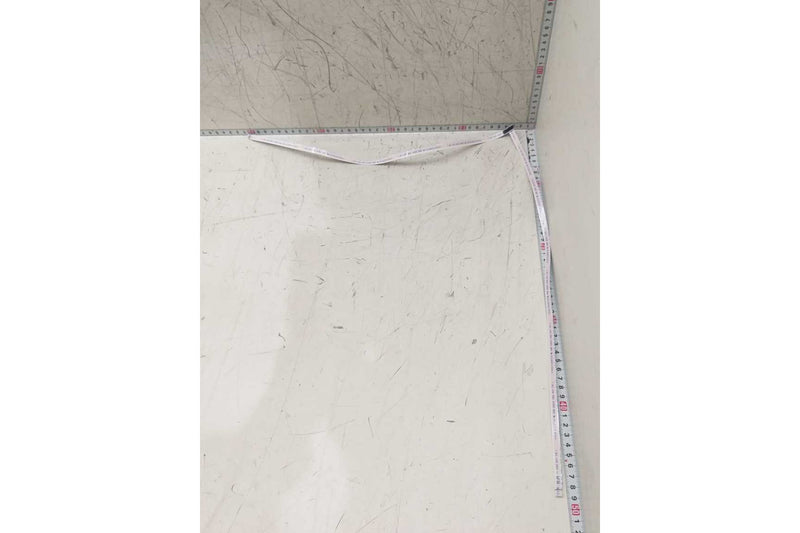

The SAMSUNG bn96-56963a is a flat flex cable (FFC) designed as an OEM replacement internal interconnect for Samsung OLED televisions. Flat flex cables carry display data and power signals between the main board and the panel assembly, and a failed or damaged FFC is a common cause of display artifacts, blank screens, or no-image conditions. This part is a fold-style ribbon cable rated for the L910 connector interface with a 10-pin configuration. Installation is performed by qualified electronics technicians during panel-level display service.

This flat flex cable is specifically referenced for the Samsung QN77S95CAFXZA 77-inch OLED television. It is used in panel disassembly and reassembly procedures when the original cable shows physical damage, crease failure, or connector delamination. Service technicians performing depot-level or in-home display repairs on this model will encounter this cable at the panel-to-board interconnect point.

Key Features

• OEM Samsung flat flex cable for panel signal and power routing
• Fold-style ribbon construction for compact routing within slim display chassis
• L910 connector interface with 10-pin configuration
• Direct OEM replacement maintains original signal integrity specifications
• Referenced specifically to the QN77S95CAFXZA model designation

Compatibility

Referenced for use in the Samsung QN77S95CAFXZA 77-inch OLED television.

Installation Notes

Flat flex cable replacement is a panel-level repair performed by trained electronics technicians. Disconnect and fully discharge the television from AC power before opening the chassis. Use anti-static precautions throughout the procedure, as OLED panels and associated circuitry are sensitive to electrostatic discharge. Handle the ribbon cable by its edges and avoid creasing or folding the cable outside of its designated fold point during installation.

Technical Specifications

• Cable Type: Flat Flex Cable (FFC)
• Style: Fold
• Connector Interface: L910
• Pin Count: 10
• Compatible Model Reference: QN77S95CAFXZA

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: bn96-56963a
