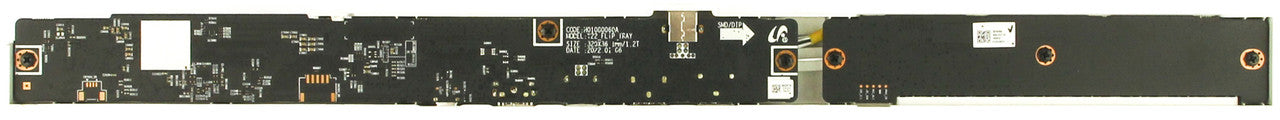

Samsung bn96-55207a P-sub Assembly Board

Product Description

The SAMSUNG bn96-55207a is a P-Sub assembly board designed as a subassembly component within compatible Samsung display systems. This board functions as a secondary processing or power distribution board, supporting core signal or power management functions within the panel assembly. Installation and service of this component is typically performed by qualified electronics or commercial display technicians with experience in board-level repair and replacement. Its compact board form factor allows for direct integration into the host display unit.

This P-Sub assembly board is suited for use in Samsung display systems where the bn96-55207a is specified as the correct replacement or service part. It is intended for technicians performing board-level repairs on compatible Samsung panel assemblies, restoring proper display function in units where the original subassembly board has failed or been damaged.

Key Features

• OEM-style P-Sub assembly board for Samsung display systems
• Designed as a direct replacement for the original bn96-55207a subassembly board
• Board-level component for secondary processing or power distribution functions
• Supports restoration of display panel operation when original board has failed

Compatibility

Designed as an OEM-style replacement subassembly board for compatible Samsung display panel systems where part number bn96-55207a is specified.

Installation Notes

Installation should be performed by a qualified electronics or display service technician. Disconnect and power down the display unit fully before accessing internal board assemblies. Handle the board by its edges to avoid damage from electrostatic discharge, and use proper ESD precautions throughout the replacement process. Refer to the applicable service documentation for the host display model before beginning work.

Technical Specifications

• Assembly Type: P-Sub Board

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: bn96-55207a
