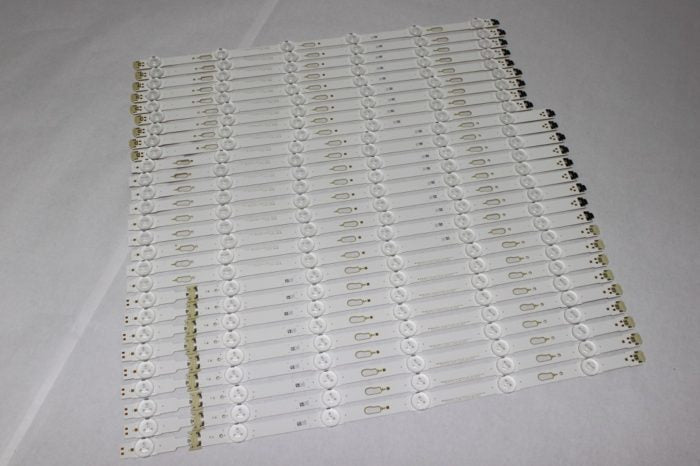

Samsung bn96-34763a Led Bar Assembly

Product Description

The SAMSUNG bn96-34763a is an OEM LED bar assembly designed as a direct backlight replacement component for Samsung flat-panel displays. LED bar assemblies serve as the primary light source behind the LCD panel, delivering uniform backlighting across the screen. When the original LED bar fails due to burned-out diodes or reduced luminance, replacing this assembly restores proper display brightness and eliminates dark bands or uneven lighting. This part is installed by experienced electronics service technicians with access to the appropriate display disassembly tools and anti-static handling equipment.

This LED bar assembly is suited for use in Samsung flat-panel television repair and display service applications. It is a factory-sourced replacement component intended for technicians performing board-level or backlight-level repairs on Samsung display units. Proper installation requires careful handling of the LCD panel to avoid damage to the diffuser layers and optical films during the backlight replacement process.

Key Features

• OEM Samsung component ensuring factory-matched luminance output and diode configuration
• Direct replacement for failed or degraded backlight LED bar assemblies
• Designed to restore uniform backlighting and eliminate dark bands or dim zones
• Factory part number bn96-34763a for precise identification and ordering accuracy

Compatibility

Designed as an OEM-style replacement LED bar assembly for compatible Samsung flat-panel display units. Confirm panel model and backlight configuration against service documentation before ordering, as LED bar assemblies are model-specific.

Installation Notes

Installation should be performed by a qualified electronics service technician familiar with flat-panel display disassembly procedures. Disconnect all power to the display before opening the chassis, and use anti-static precautions throughout the repair process. Handle the LCD panel and optical film layers with care to prevent scratches or pressure damage. Refer to the applicable Samsung service manual for the correct disassembly sequence for the specific display model.

Technical Specifications

• Component Type: LED Bar Assembly
• Application: Flat-Panel Display Backlight Replacement

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: bn96-34763a
