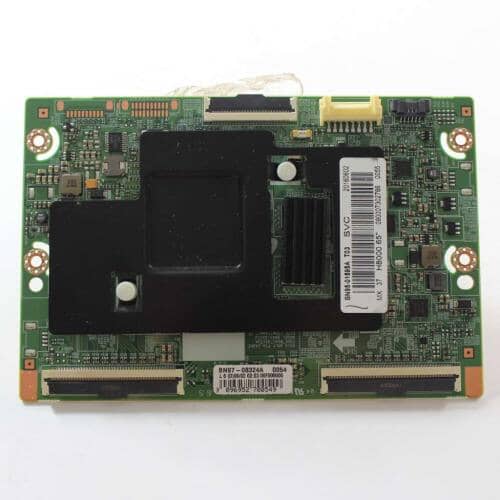

Samsung bn95-01595a T-con Board Assembly

Product Description

The SAMSUNG bn95-01595a is a T-Con (Timing Control) board assembly designed for use in Samsung flat-panel displays. The T-Con board acts as the interface between the main logic board and the LCD panel, converting incoming video signals into the precise timing signals the panel requires to produce a stable, accurate image. This component is a direct-fit assembly replacement intended for electronics repair technicians and display service professionals working on compatible Samsung display units.

The bn95-01595a is used in flat-panel LCD display repair applications where the original T-Con board has failed, resulting in symptoms such as a blank screen, vertical or horizontal lines, image distortion, or a backlit panel with no picture. Installation typically occurs in a bench-repair environment by qualified display service technicians.

Key Features

• Direct-fit T-Con board assembly for compatible Samsung flat-panel displays
• Restores proper timing signal conversion between logic board and LCD panel
• OEM-style assembly replacement for failed or damaged T-Con boards
• Designed to address common display failure symptoms including image loss and panel artifacts

Compatibility

Designed as an OEM-style replacement T-Con board assembly for compatible Samsung flat-panel LCD displays. No specific model compatibility data was provided in the product input.

Installation Notes

T-Con board replacement should be performed by a qualified electronics or display repair technician. Disconnect and fully discharge the display from all power sources before handling internal components, as residual charge in capacitors can pose a safety hazard. Handle the board by its edges to avoid electrostatic discharge damage to sensitive components; use an anti-static wrist strap and mat during installation. Follow applicable electronic repair safety practices and local regulations for handling display panels.

Technical Specifications

• Component Type: T-Con (Timing Control) Board Assembly

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: bn95-01595a
