Samsung bn94-16108a Tv Main Pcb Assembly UTU7000K

Product Description

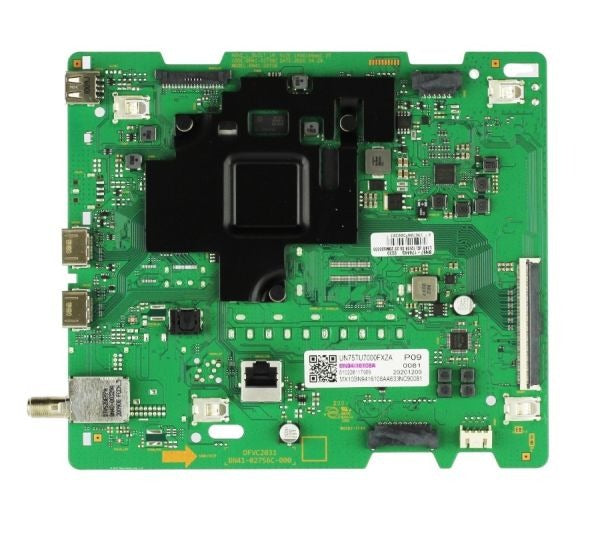

The SAMSUNG bn94-16108a is the main processing board for compatible Samsung flat-panel display systems. This PCB assembly manages signal processing, input selection, image processing, audio output routing, and system startup sequencing. Mounted in the rear housing of the display unit, the board connects to the internal wiring harness to coordinate communication between the display panel, power supply, and interface ports. Replacement of this board is typically performed by electronics repair technicians when the display exhibits no-power, no-picture, or input-response failures traceable to the main logic board.

This assembly is designed for use in residential flat-panel television systems within the UTU7000K series. It serves as the central logic controller for the display unit, handling all primary functions required for stable video and audio output. This board is appropriate for bench-level or in-home repair scenarios where the main PCB has been confirmed as the failed component through systematic diagnosis.

Key Features

• Manages input selection, image processing, and audio output routing in a single integrated assembly
• Controls system startup sequencing and communication between internal subsystems
• Mounts to the rear housing of the display using the original mounting points
• Connects to the internal wiring harness for full system integration
• OEM-specification replacement for the UTU7000K series main board

Compatibility

Designed as an OEM-style replacement main PCB assembly for Samsung UTU7000K series flat-panel television displays. Confirm the exact model and board revision against the unit's service label before ordering.

Installation Notes

Installation should be performed by a qualified electronics technician familiar with flat-panel display service procedures. Disconnect the television from AC power and allow capacitors to discharge fully before handling any internal components. Use an anti-static wrist strap and grounded work surface when handling the PCB to prevent electrostatic discharge damage. Document all connector positions and cable routing before removal to ensure correct reassembly.
