Samsung bn94-15330r Tv Main Pcb Assembly

Product Description

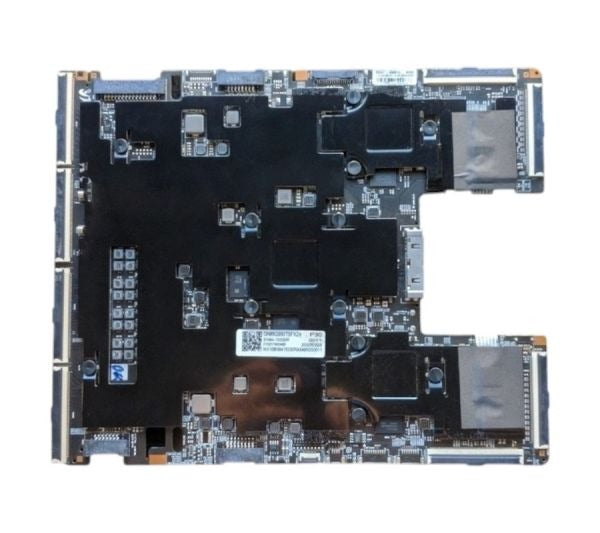

The SAMSUNG bn94-15330r is a main PCB assembly designed for the QTQ950SA television. This board serves as the central processing unit of the TV, coordinating video output, audio processing, and overall system operation. It receives input signals from external sources such as HDMI and other interfaces, processes that data, and distributes the appropriate signals to the display panel, speakers, and peripheral subsystems. Replacement of this board is typically performed by qualified electronics technicians when the set exhibits symptoms such as no picture, no power, or loss of system control functions.

This main PCB assembly is designed for use in the Samsung QTQ950SA television model. It is mounted to the rear cover of the TV chassis using fixed mount points and connects to downstream components via ribbon cables and wiring harnesses. This type of repair is common in flat-panel TV service where board-level component replacement is more cost-effective than full unit replacement.

Key Features

• Processes HDMI and external input signals for video and audio output
• Coordinates communication between the display panel, speakers, and system subsystems
• Mounts to the rear TV chassis using fixed mount points
• Connects via ribbon cables and wiring harnesses for direct OEM-style fitment
• Functions as the primary system control board for the QTQ950SA platform

Compatibility

Designed as an OEM replacement main PCB assembly for the Samsung QTQ950SA television model.

Installation Notes

Installation should be performed by a qualified electronics technician with experience in flat-panel TV board-level repair. Disconnect the television from mains power and allow capacitors to discharge before handling any internal components. Reconnect all ribbon cables and wiring harnesses securely and in their correct orientation before powering the unit. Follow applicable local electrical safety codes when servicing consumer electronics equipment.
