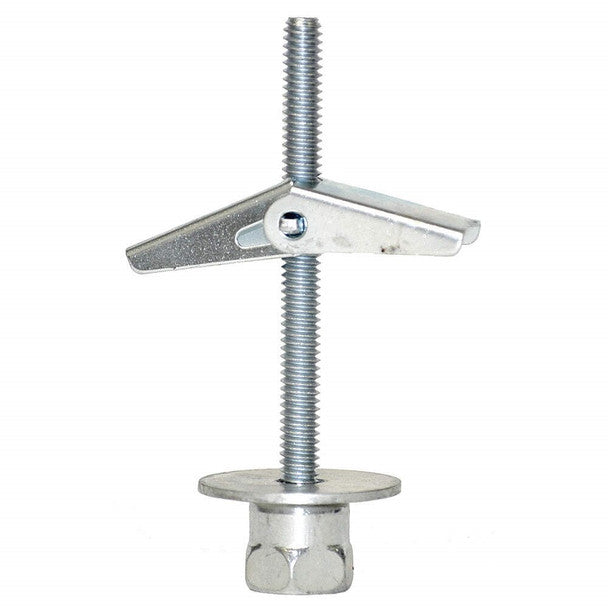

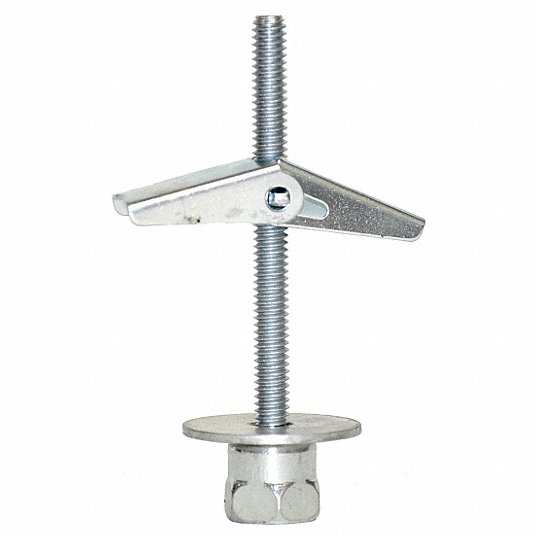

Sammys 8064925 Rod Hanger 3/8 Inch Screw Vertically Threaded Rod Anchor (Pack of 100)

Product Description

The Everflow Sammys 8064925 installs vertically into drywall or prestressed concrete for hanging threaded rod anchors. It is a self-drilling fastener that requires a 5/8 inch pre-drilled pilot hole. Made of steel with a Zinc-Climaseal finish for corrosion resistance. Designed to prevent snapping during installation and ensures a strong hold between screw and connector.

• Made in US
• Allows specifiers and designers to engineer Systems with fewer attachment points
• Reduces occurrences of Fastener failure due to over driving

Product Highlights

The Everflow Sammys 8064925 is excellent for use in high-stress environments and features a 1/4 x 3 inch screw length with threads for 3/8 inch rod.

Product Information

Standard Information

• Brand: SAMMYS
• Manufacturer Part Number: 8064925
• Country of Origin: US

Technical Specifications

• Material: Alloy Steel, Zinc
• Head Style: Flat
• Exterior Finish: Zinc,Steel
• Thread Size: Internal 3/8"-16, External 1/4-20
• Thread Coverage: Fully Threaded
• Fastener Size: No. 14
• Compatible Groove Diameter: 0.38 Inches
• Number of Pieces: 100
• Brand: SAMMYS
• Fastener Type: Screw
• Part Number: 8064925-100
• Model: 8064925-100
• Unit Count: 100.0 Count
• Item Type Name: Everflow Sammys 8064925-100 SST 30 3/8" Screw
• System of Measurement: Inch
• Compatible Rod Thread Size: 3/8"-16
• Screw Size: 1/4 in
• Overall Length: 3 in
• Body Length: 3 in
• Overall Diameter: 1/4 in
• Compatible Material: Concrete; Drywall; Plaster
• Finish: Zinc Plated
• Mount Type: Vertical
• Head Width: 0.63 in
• Drive Type: External Hex
• Drill Bit Size: 5/8 in
• Maximum Load Capacity: 450 lb
• ICC Approved for Cracked Concrete: No
• ICC Approved for Un-Cracked Concrete: No
• Seismic Approved: No
• Series: Sammys
• Manufacturer Part Number: 8064925
• Compatible with Grainger Part Number: 36C173
• Compatible with Manufacturer Model Number: 8113910
• Rod Size: 3/8"-16
• Substrate Fastener Size: 1/4" x 3"
• Length: 3
• Diameter: 0.25
• Type: Rod Hangers
• UPC: 092097921429
• Country of Origin: China
