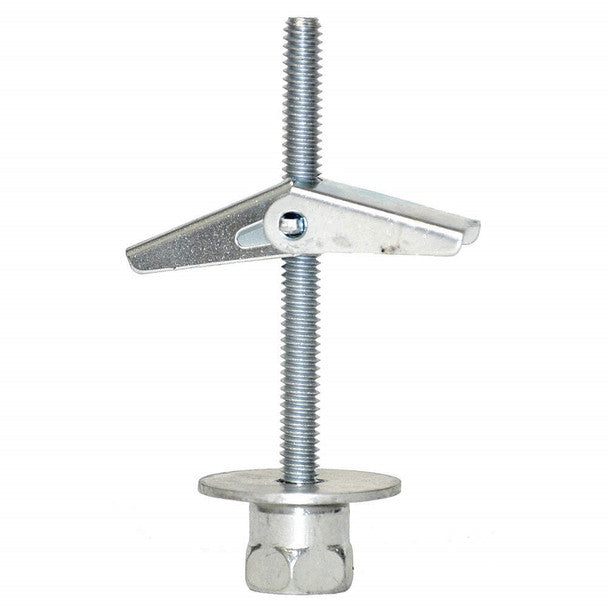

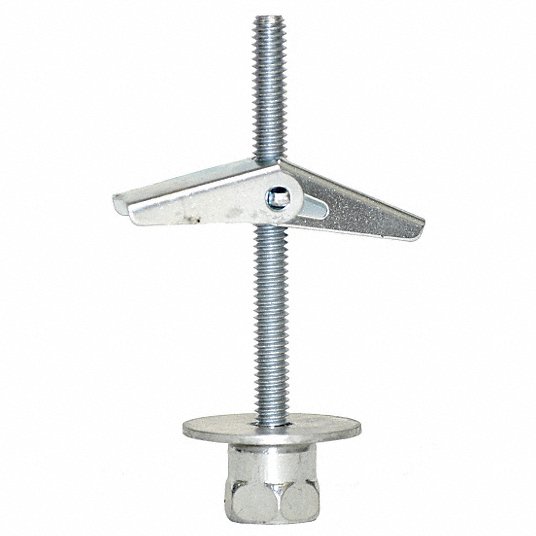

Sammys 8064925 Rod Hanger 3/8 Inch Screw Vertically Threaded Rod Anchor - Each

Product Description

The Everflow Sammys 8064925 installs vertically into drywall or prestressed concrete for hanging threaded rod anchors. It is a self-drilling fastener that requires a 5/8 inch pre-drilled pilot hole. Made of steel with a Zinc-Climaseal finish for corrosion resistance. Designed to prevent snapping during installation and ensures a strong hold between screw and connector.

• Made in US

• Allows specifiers and designers to engineer Systems with fewer attachment points

• Reduces occurrences of Fastener failure due to over driving

Product Highlights

The Everflow Sammys 8064925 is excellent for use in high-stress environments and features a 1/4 x 3 inch screw length with threads for 3/8 inch rod.

Product Information

Standard Information

• Brand: SAMMYS

• Manufacturer Part Number: 8064925

• Country of Origin: US

Technical Specifications

• Material: Alloy Steel, Zinc

• Head Style: Flat

• Exterior Finish: Zinc,Steel

• Thread Size: Internal 3/8"-16, External 1/4-20

• Thread Coverage: Fully Threaded

• Fastener Size: No. 14

• Compatible Groove Diameter: 0.38 Inches

• Quantity: 1

• Brand: SAMMYS

• Fastener Type: Screw

• Item Type Name: Everflow Sammys 8064925 SST 30 3/8" Screw

• System of Measurement: Inch

• Compatible Rod Thread Size: 3/8"-16

• Screw Size: 1/4 in

• Overall Length: 3 in

• Body Length: 3 in

• Overall Diameter: 1/4 in

• Compatible Material: Concrete; Drywall; Plaster

• Finish: Zinc Plated

• Mount Type: Vertical

• Head Width: 0.63 in

• Drive Type: External Hex

• Drill Bit Size: 5/8 in

• Maximum Load Capacity: 450 lb

• ICC Approved for Cracked Concrete: No

• ICC Approved for Un-Cracked Concrete: No

• Seismic Approved: No

• Series: Sammys

• Compatible with Grainger Part Number: 36C173

• Compatible with Manufacturer Model Number: 8113910

• Rod Size: 3/8"-16

• Substrate Fastener Size: 1/4" x 3"

• Length: 3

• Diameter: 0.25

• Type: Rod Hangers

• UPC: 092097921429

• Country of Origin: China
