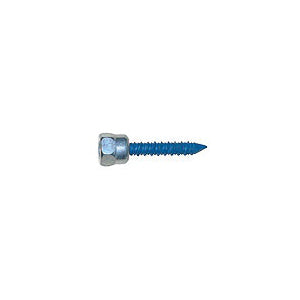

Sammys 8059957 CST 20 Rod Anchor 5/16 in Dia 3/8-16 Rod

Product Description

Sammys Rod Anchor, MPN 8059957, is designed for effective installation into concrete. It features a diameter of five sixteenths inches and accommodates a three eighths by sixteen rod. This anchor has a total length of one and three quarters inches and comes equipped with an AF end drilled head, measuring five eighths of an inch. It is made of steel and offers a load capacity of two thousand four hundred pounds, supported by a Climaseal Electro-Zinc finish.

• Installs vertically in concrete for hanging threaded rod
• Reduces installation costs
• Easy two-step process: drill hole and drive anchor

Product Highlights

This product is ideal for construction and renovation of concrete structures.

Product Information

Standard Information

• Brand: Sammys
• Manufacturer Part Number: 8059957

Technical Specifications

• Application: Installs vertically into the bottom of concrete structures for hanging threaded rod
• Finish: Climaseal Electro-Zinc
• Diameter: 5/16 in
• Head Size: 5/8 in
• Head Type: AF End Drilled
• Load Capacity: 2400 lb
• Material: Steel
• Overall Length: 1-3/4 in
• Rod Size: 3/8-16
• Series: CST 20
• Standards/Approvals: FM Approved
