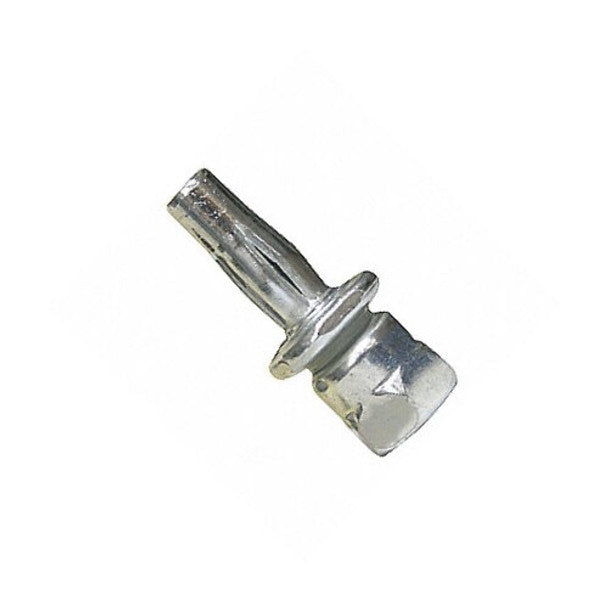

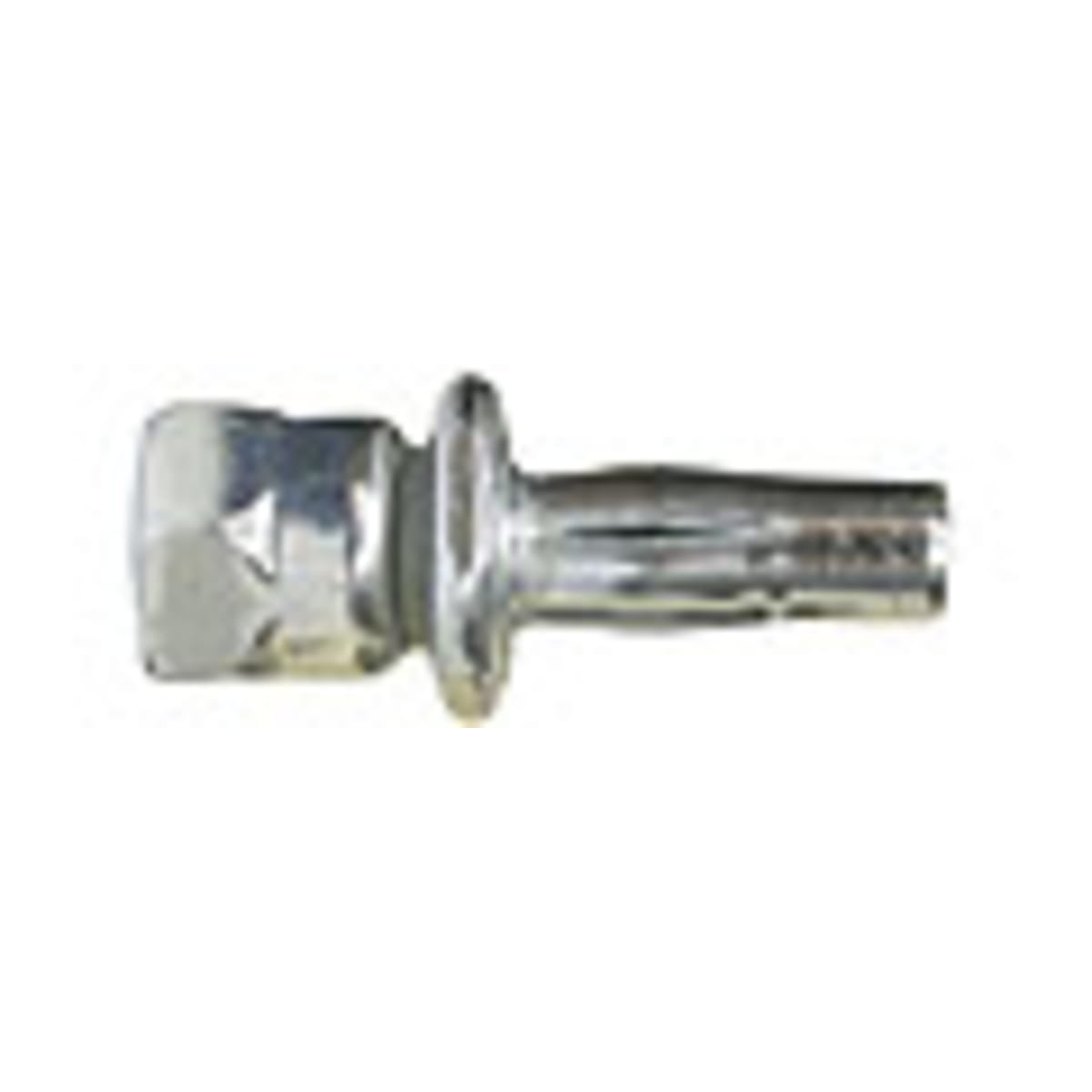

Sammy Screws 8150922 Sammy Screw X-Press XP 20 Rod Anchor

Product Description

The Sammy Screw X-Press XP 20 Rod Anchor, MPN 8150922, is a steel rod anchor designed for vertical mounting on metal decks, purlins, or tubular steel. It has a diameter of twenty-five sixty-fourths inches and accommodates a three eighths sixteen rod size. The anchor features an electro-zinc finish, an AF end-drilled head, and a head size of five eighths inches. This product is specifically designed for use with the Sammy X-Press IT installation tool.

• Rod size: 3/8-16
• Installs vertically
• Made of steel with electro-zinc finish

Product Highlights

Durable design suitable for various mounting applications in the construction industry.

Product Information

Standard Information

• Product Name: Sammy's X-Press®
• Series: XP 20

Technical Specifications

• Mount Style: Vertical
• Substrate: Metal Deck, Purlin or Tubular Steel
• Rod Size: 3/8-16
• Material: Steel
• Finish: Electro-Zinc
• Head Type: AF End Drilled
• Head Size: 5/8 inches
• Anchor Diameter: 25/64 inches
• Overall Length: 1 inch
• Drive: Sammy's X-Press IT® Installation Tool
• Load Capacity: 1146 lbs
