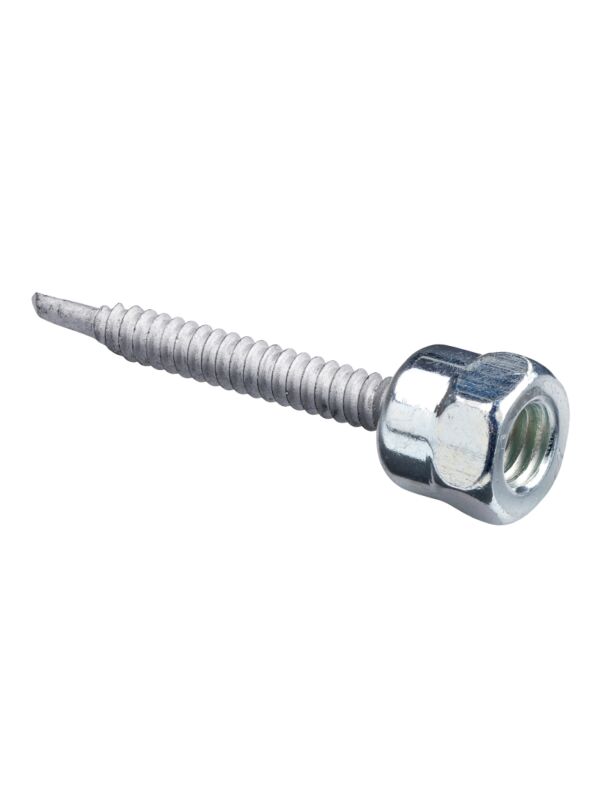

Sammy Screws 8042957 Sammys® 3/8 Vertical Threaded Rod Anchor for Steel

Product Description

The Sammy Screws 8042957 is a vertical threaded rod anchor designed for steel installations. This anchor is ideal for attaching 3/8-16 rods securely. It utilizes a screw size of 1/4-14 x 2 for optimal fastening. The recommended tool for installation is the SAMMYS Nut Driver, which simplifies the setup process.

• Designed for vertical mounting on steel substrates.
• Compatible with 3/8-16 rod sizes.
• Utilizes Teks Drill Point technology for easy installation.

Product Highlights

The Sammy Screws 8042957 is a reliable solution for hanging threaded rods in steel structures.

Product Information

Standard Information

• Brand: Sammy Screws
• Rod Size: 3/8-16

Technical Specifications

• Product Name: Sammys®
• Substrate: Steel
• Mount Style: Vertical
• Substrate Fastener Size: 1/4-14 x 2
• Ultimate Pullout: 446 lb (20 ga.), 970 lb (16 ga.)
• Type: Rod Anchor
• Product Family: Sammys® Steel 3/8 Rod
• Anchor Diameter: 1/4
• Material: Steel
• Finish: Climaseal®, Electro-Zinc
• Head: 5/8 AF End-Drilled
• Drive: Sammys® #14 Nut Driver (8113910)
• Grade: C1022 screw, C1010 cap
• Minimum Thickness: .036-1/32
• Maximum Thickness: 3/16
• Recommended Installation Tool: SAMMYS® #14 Nut Driver (8113910)
• Fastener Size: 3/8-16
• Full Rod Size: 1/4 x 2
• Quantity: 1
