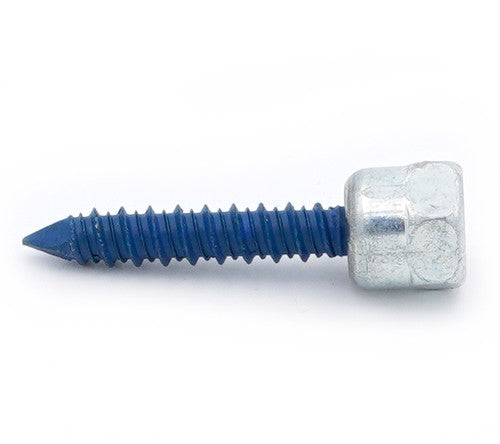

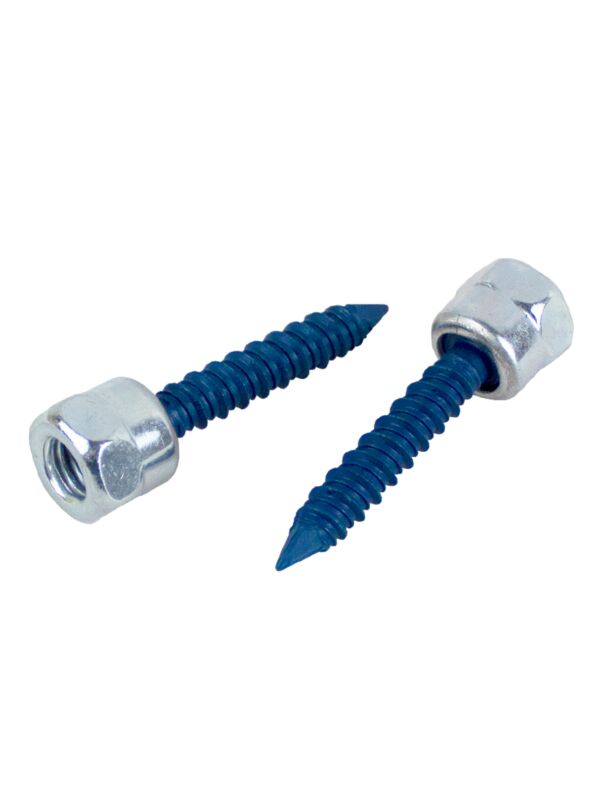

SAMMY SCREW 8059957 SAMMY SCREW 3/8-16 Vertical Threaded Rod Anchor for Concrete

Product Description

The SAMMY SCREW 8059957 is a reliable rod anchor designed for vertical mounting in concrete. It is compatible with a 3/8-16 rod size and includes a screw size of 5/16 by 1-3/4 inches. This anchor is made from durable steel and features a Climaseal Electro-Zinc finish. It requires a 1/4 inch pilot hole for proper installation.

• Designed specifically for vertical mounting in concrete.
• Constructed from steel with Climaseal Electro-Zinc finish for protection.
• Supports various applications for hanging threaded rods.

Product Highlights

The SAMMY SCREW 8059957 is ideal for securing threaded rods in concrete, providing strength and stability in construction projects.

Product Information

Standard Information

• Brand: SAMMY SCREW
• MPN: 8059957

Technical Specifications

• Rod Size: 3/8-16
• Screw Size: 5/16 x 1-3/4 inches
• Anchor Diameter: 5/16 inches
• Material: Steel
• Finish: Climaseal Electro-Zinc
• Ultimate Pullout: 2400 lbs
• FM Test Load: 1475 lbs
• Recommended Installation Tool: SAMMYS #14 Nut Driver
