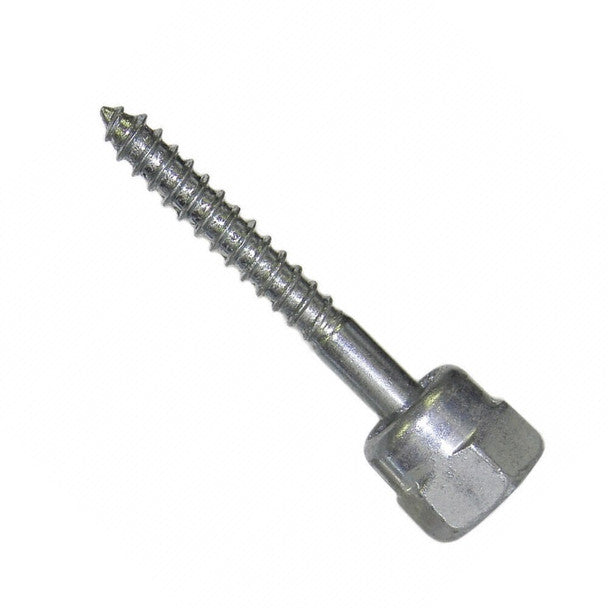

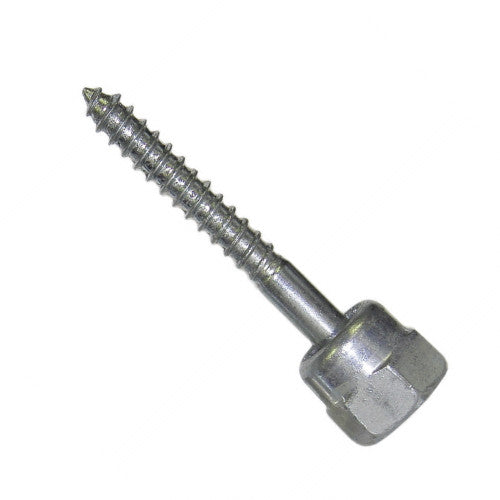

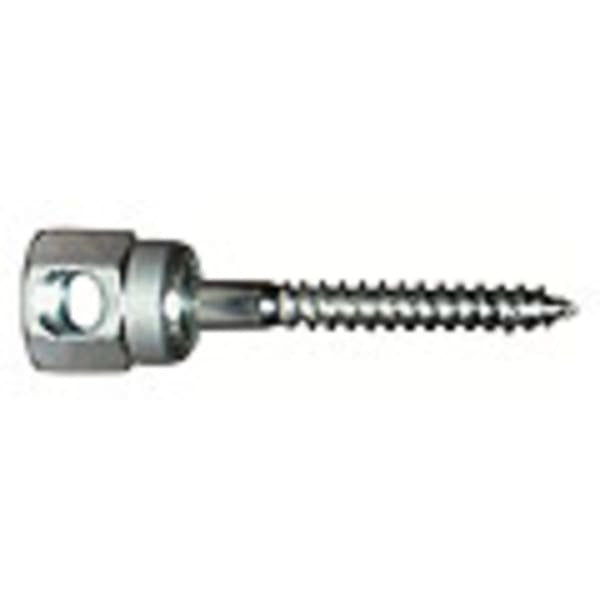

SAMMY SCREW 8023925 3/8 Vertical Threaded Rod Anchor for Wood

Product Description

The SAMMY SCREW 8023925 is a vertical threaded rod anchor suitable for wood substrates. It supports a rod size of three eighths inches by sixteen threads per inch and utilizes a screw dimension of one fourth by three inches. This anchor installs conveniently with a nut driver, providing a secure threaded rod attachment. This feature can help minimize the number of necessary attachment points in engineered systems.

• Constructed from durable steel with an electro-zinc finish
• Designed for vertical mounting
• Compatible with SAMMY SCREW nut driver for installation

Product Highlights

This rod anchor is designed for hanging threaded rods within wood structures and is part of the SAMMYS Sidewinder® product line.

Product Information

Standard Information

• Rod Size: 3/8-16
• Substrate: Wood

Technical Specifications

• Mount Style: Vertical
• Fastener Size: 1/4 x 3
• Ultimate Pullout: 1884 lb (Fir)
• Type: Rod Anchor
• Anchor Diameter: 1/4
• Material: Steel
• Finish: Electro-Zinc
• Head: 5/8 AF End-Drilled
• Drive: SAMMYS® #14 SW Nut Driver (8114910)
• Box Quantity: 25
