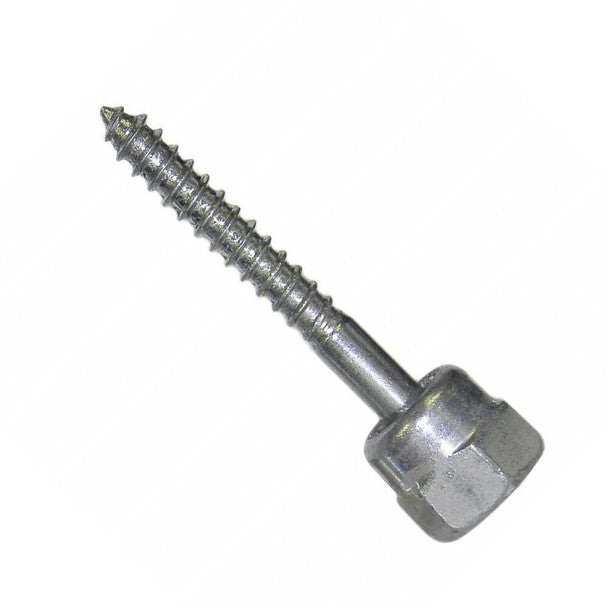

Sammy Screw 8013925, 1/2 Vertical Threaded Rod Anchor for Wood

Product Description

The Sammy Screw 8013925 is a vertical threaded rod anchor suitable for wood applications. It features a rod size of one half inch by thirteen threads per inch and requires a quarter inch by two inches screw for installation. Made from steel with an electro-zinc finish, this rod anchor provides durability and compliance with ROHS standards. Installation is straightforward using a Sammy's nut driver.

• Designed for vertical installations.
• Appropriate for wooden surfaces.
• Installs using a Sammy's nut driver.

Product Highlights

This anchor is ideal for securing threaded rods in wood structures, ensuring reliable performance.

Product Information

Standard Information

• Brand: Sammy Screws
• MPN: 8013925

Technical Specifications

• Mount Style: Vertical
• Drive: Sammy's #14 SW Nut Driver
• Rod Size: 1/2-13
• Substrate: Wood
• Screw Size: 1/4 x 2
• Anchor Diameter: 1/4
• Material: Steel
• Finish: Electro-Zinc
• Head Type: AF End-Drilled
• Head Diameter: 5/8 inch
• Grade: C1022 screw, C1010 cap
• Maximum Load: 1760 pounds (Ultimate Pullout)
• Industry Standards: ROHS Compliant
