Sammy Screw 8010957 Gst 30 Vertical Threaded Rod Anchor

Product Description

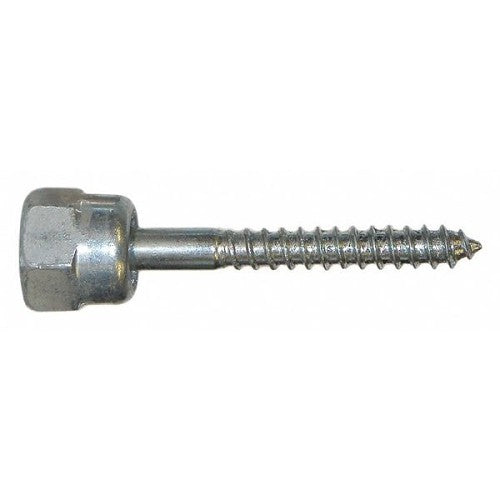

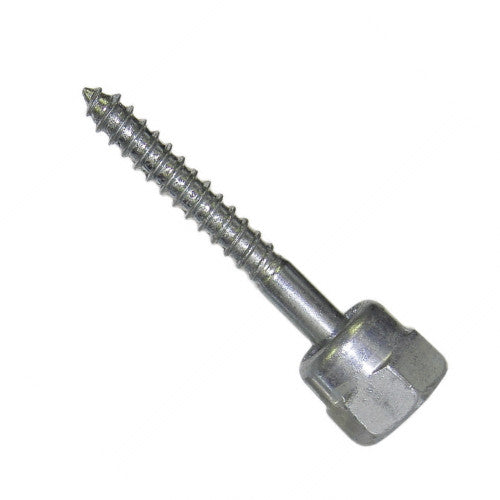

The Sammy Screw 8010957 Gst 30 is a vertical threaded rod anchor designed for secure installation into wood structures. This anchor facilitates the hanging of threaded rods without any need for pre-drilling, saving time and effort during installation. Engineered for compatibility with a Sammy nut driver, it supports a rod size of 3/8-16, making it a valuable tool for various applications in construction.

• Vertical installation for wood structures.
• No pre-drilling required.
• Compatible with 3/8-16 threaded rods.

Product Highlights

This product is designed specifically for easy and efficient installation in wood, ensuring that hanging applications are secure and reliable.

Product Information

Standard Information

• Brand: Sammy Screw
• MPN: 8010957

Technical Specifications

• Series: GST 30
• Mounting Type: Vertical
• Rod Size: 3/8-16
• Screw Size: 1/4 IN
• Anchor Diameter: 1/4
• Overall Length: 3 IN
• Material: Steel
• Finish: Electro-Zinc Plated
• Load Capacity: 2060 lb
• Thread Type: UNC
• Substrate: Wood
• Ultimate Pullout: 2060 lb (Fir)
• Grade: C1022 screw, C1010 cap
• Minimum Thickness: 1-1/2 IN
• UL Approved: EX5098
• FM Approved: 3020935
