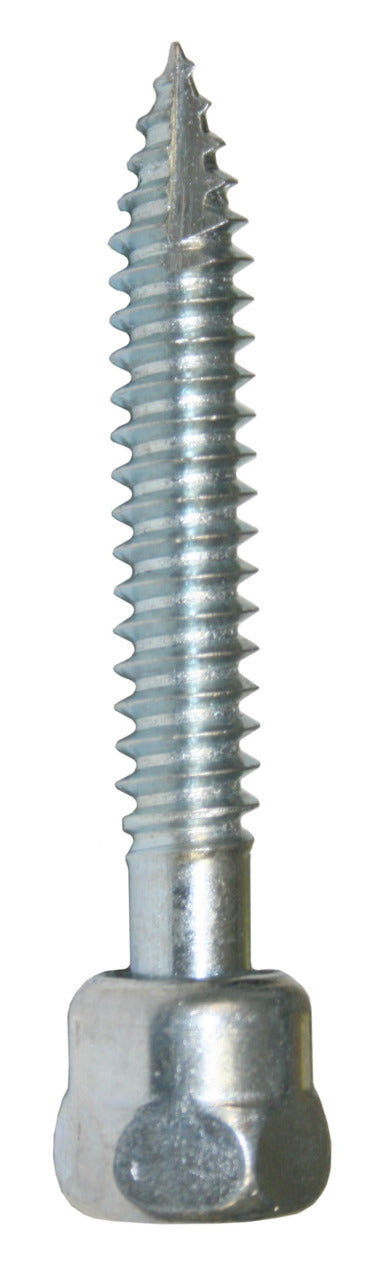

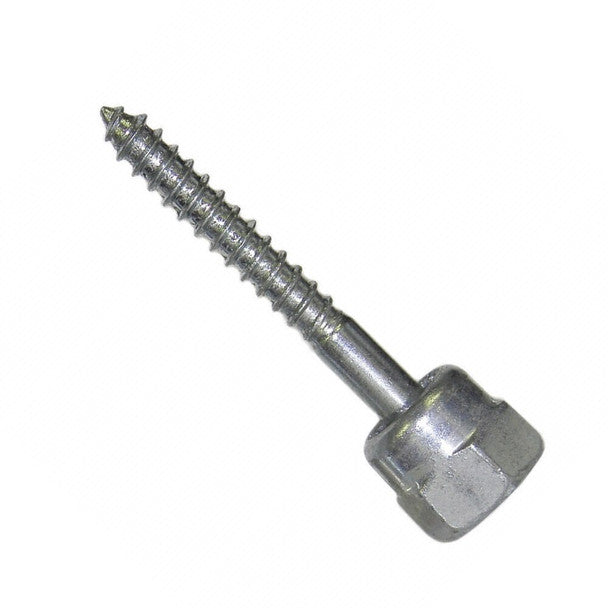

Sammy Screw 8009925 3/8-Inch Vertical Threaded Rod Anchor for Wood

Product Description

The Sammy Screw 8009925 is a vertical threaded rod anchor for wood applications. It fits a three-eighths by sixteen rod size and has an overall length of two and a half inches. The anchor is made of steel, coated with an electro-zinc finish, suitable for wood, steel, and concrete installations. It meets ROHS compliance and is UL EX5098 listed, enhancing its reliability in various settings.

• Accommodates a three-eighths by sixteen rod size.
• Constructed from steel with an electro-zinc finish.
• Designed for vertical mounting.

Product Highlights

This anchor effectively installs into wooden structures to support threaded rods, ensuring secure and stable installation.

Product Information

Standard Information

• Brand: Sammy Screw
• MPN: 8009925

Technical Specifications

• Rod Size: 3/8-16
• Screw Size: 3/8 inches
• Overall Length: 2-1/2 inches
• Maximum Load: 2113 lbs (ultimate pullout), 1500 lbs (UL)
• Material: Steel
• Finish: Electro-Zinc
• Mounting: Vertical
• Industry Standards: ROHS Compliant, UL EX5098 Listed
• Head Diameter: 5/8 inches
• Product Type: Sammy
