Saginaw SCE-36N3008LP Enclosure, Nema-1 36 x 30 x 8in

Product Description

The SAGINAW SCE-36N3008LP enclosure is designed to house electrical controls, instruments, and components in areas that do not require oil, water, and dust-tight protection. Constructed from 0.048 In., 0.063 In. & 0.075 In. carbon steel with spot weld construction. Doors open 180 degrees and feature black quarter-turn latches.

• Constructed from 0.048 In., 0.063 In. & 0.075 In. carbon steel
• Features 1/4-20 standoffs for optional panel mounting
• Finished with ANSI-61 gray powder coating inside and out

Product Highlights

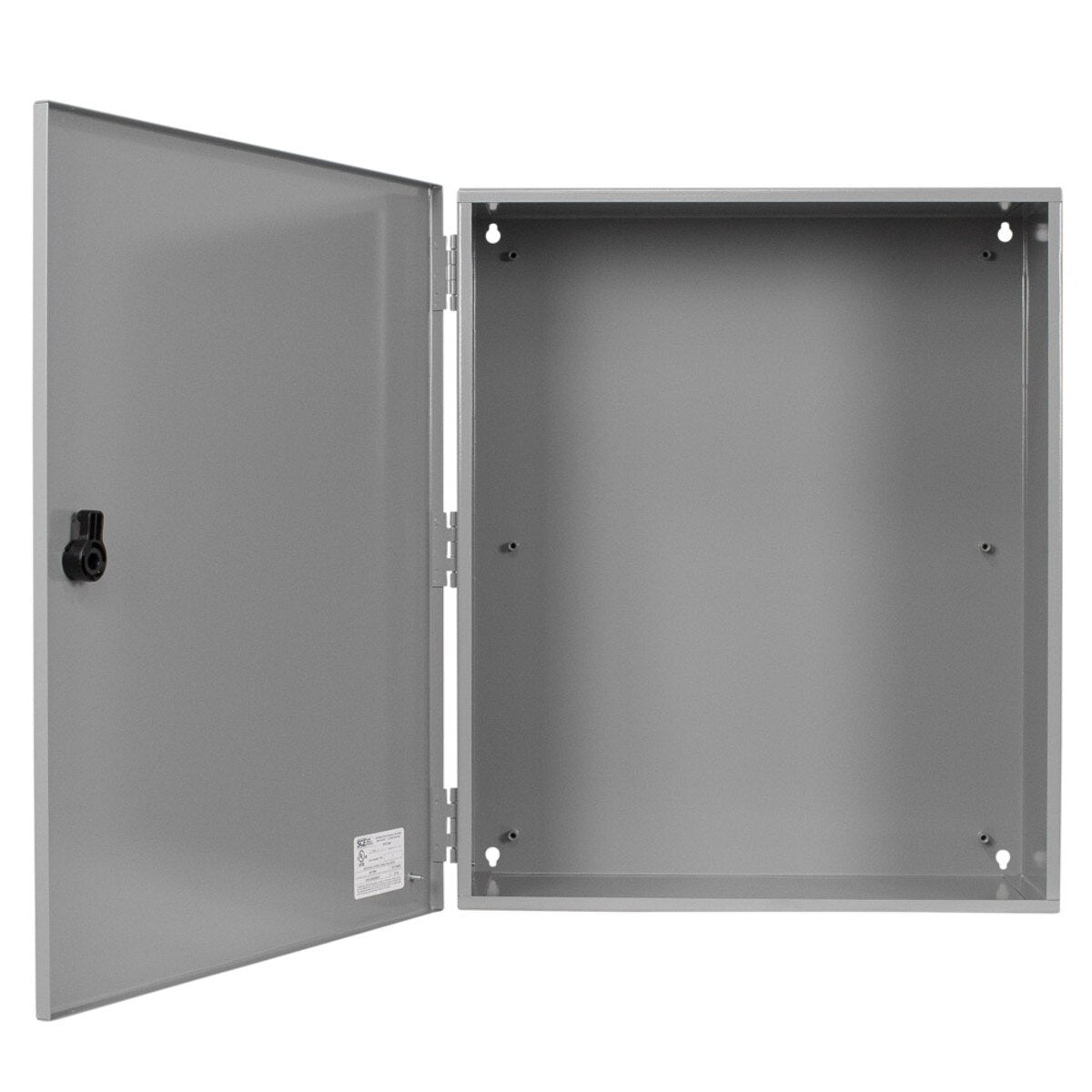

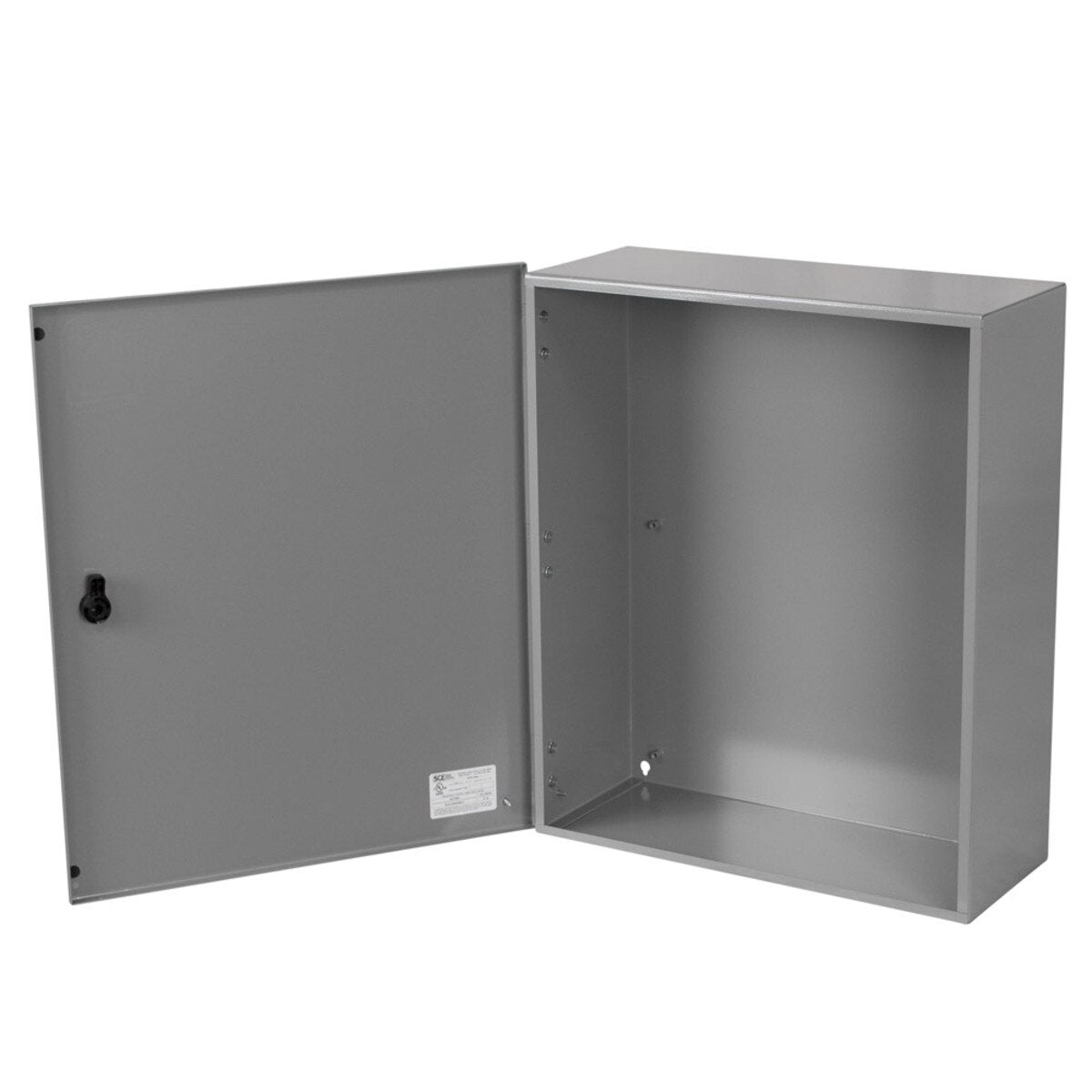

This Nema-1 enclosure includes a ground stud on the door, mounting holes, and subpanel mounting hardware. Latches can be opened or closed with a screwdriver.

Product Information

Standard Information

• Brand: SAGINAW
• Manufacturer Part Number: SCE-36N3008LP
• Country of Origin: United States

Technical Specifications

• Height: 36.00"
• Width: 30.00"
• Depth: 8.00"
• Enclosure Material: Carbon Steel
• Mounting: Mounting holes in back of enclosure.
• UL Type (NEMA): 1
• Material: 0.048", 0.063", or 0.075" carbon steel depending on enclosure size
• Latches: Black quarter turn latches

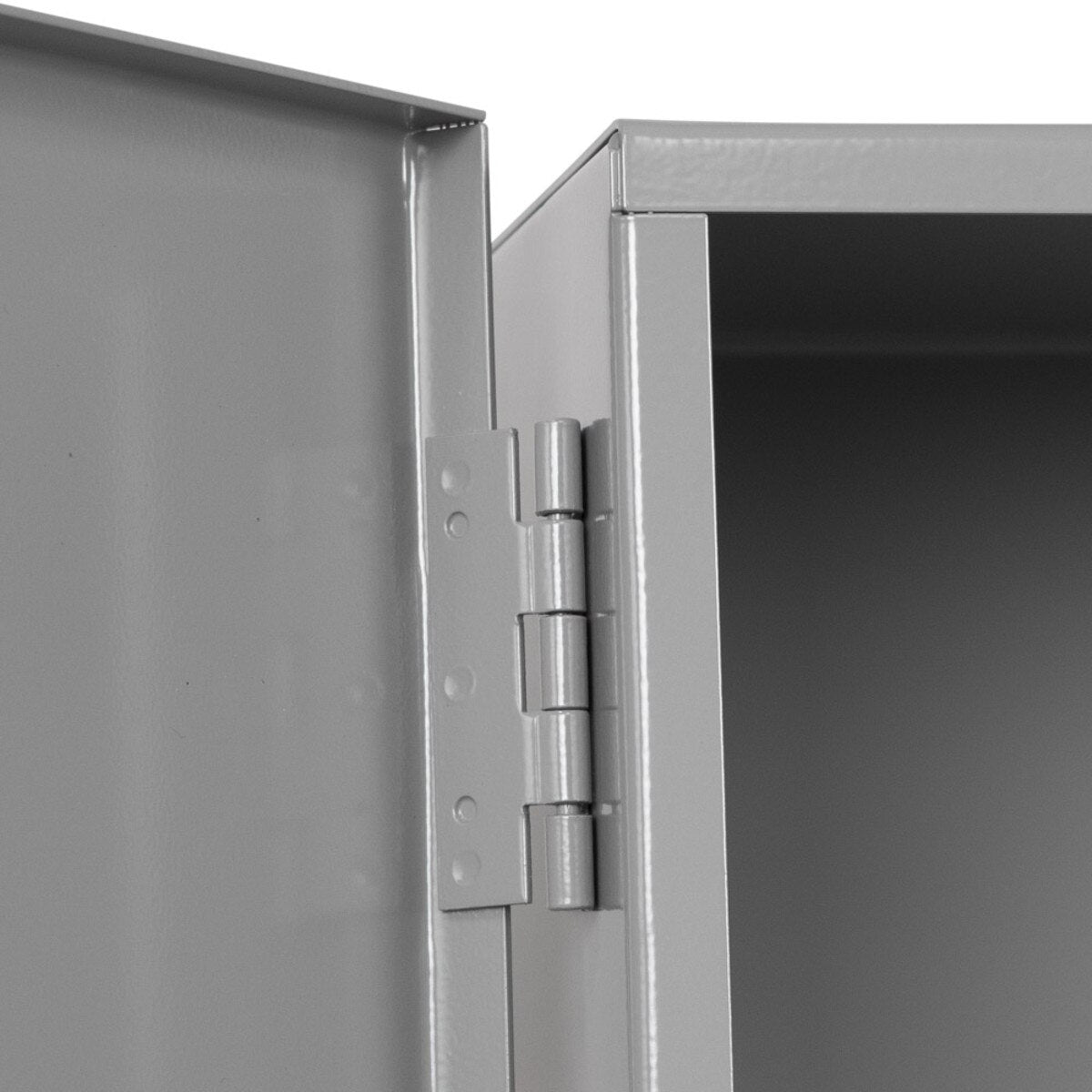

• Hinge: Butt Hinge - Black
• Door Opening: Doors open 180 degrees.
• Grounding: Ground stud on door.
• Latch Operation: Latches are opened or closed with a screwdriver.
• Construction: Spot weld construction.
• Subpanel Hardware: Subpanel mounting hardware.
• MODEL: SCE-36N3008LP
• BRAND: Saginaw Control
• Component Type: Enclosure
• Finish: ANSI-61 Gray
• Saginaw Product Series: Saginaw N LP - General Purpose Type 1
