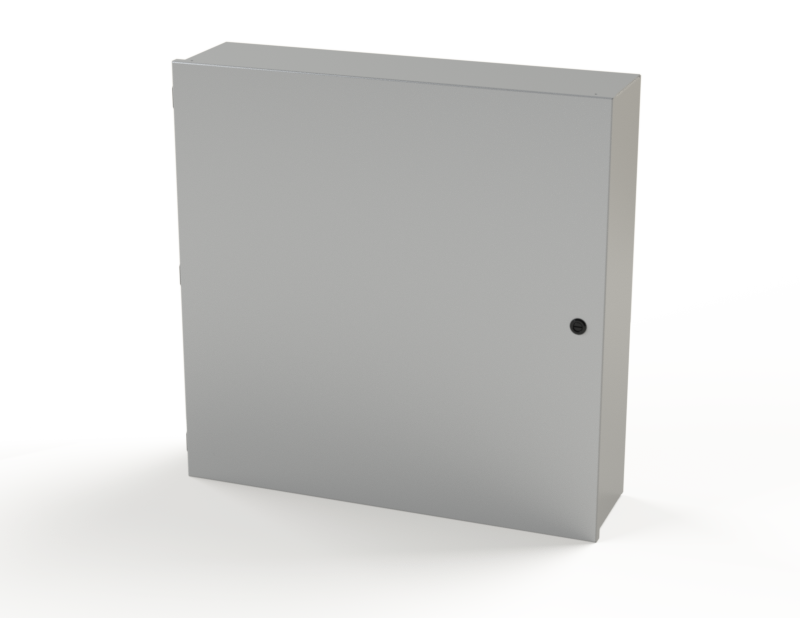

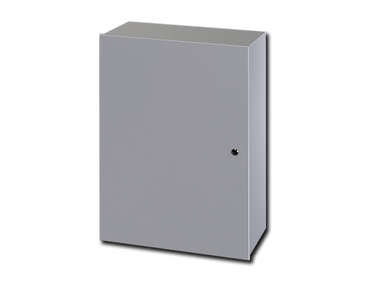

Saginaw SCE-30N3008LP NEMA 1 Enclosure

Product Description

The Saginaw SCE-30N3008LP is a NEMA 1 enclosure designed for housing electrical controls and components. This enclosure is suitable for areas where protection from oil, water, and dust is not required. The construction utilizes spot welds and includes standoffs for mounting optional panels.

• Constructed from carbon steel.
• Equipped with a ground stud on the door.
• Features doors that open 180 degrees with black quarter-turn latches.

Product Highlights

This enclosure is ideal for housing electrical systems in various environments that do not require high levels of protection.

Product Information

Standard Information

• Brand: Saginaw
• MPN: SCE-30N3008LP

Technical Specifications

• Enclosure Type: Enclosure Only
• Enclosure Rating: NEMA 1
• Material: Steel
• Mounting Type: Hinged
• Height: 30.00 inches
• Width: 30.00 inches
• Depth: 8.00 inches
• Subpanel: Solid
• Knockouts: No
• Keyed: No
• Finish: ANSI-61 Gray
