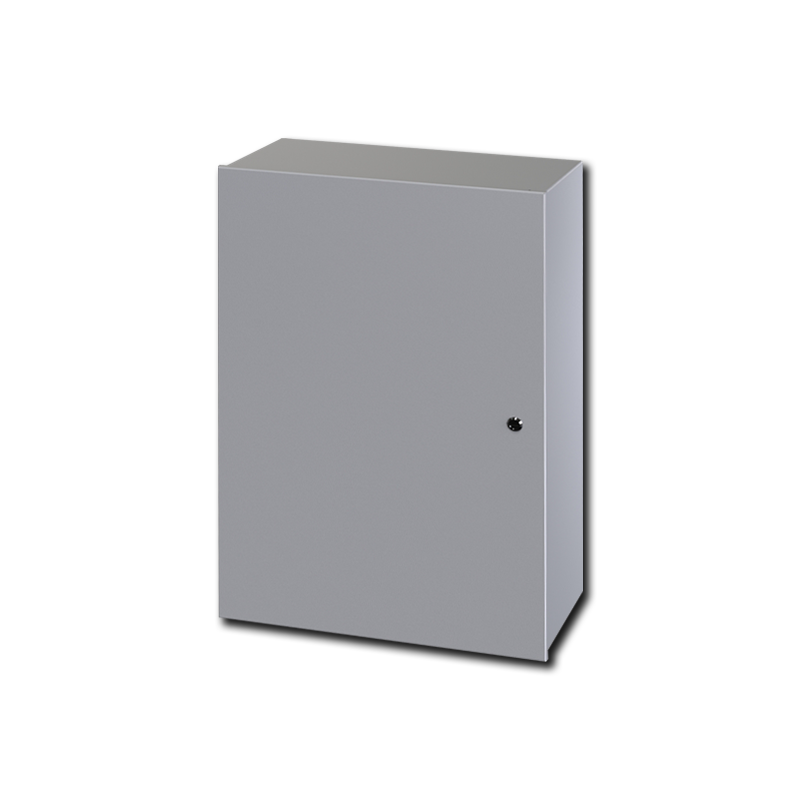

Saginaw Control & Engineering SCE-36N3006LP 36x30x6 Enclosure Nema-1

Product Description

The Saginaw Control & Engineering SCE-36N3006LP is a Nema-1 enclosure designed to protect electrical controls, instruments, and components in non-hazardous environments. This enclosure is constructed using carbon steel available in three thicknesses: zero point zero four eight inches, zero point zero six three inches, and zero point zero seven five inches. It features spot weld construction and includes standoffs for mounting optional panels. The door opens one hundred eighty degrees and uses black quarter turn latches, which can be operated with a screwdriver. A grounding stud is located on the door, and mounting holes are pre-drilled in the back for easier installation.

• Constructed from durable carbon steel
• Designed for indoor use without oil, water, or dust tight protection
• Included mounting hardware and optional subpanel installation

Product Highlights

This enclosure is ANSI-61 gray powder coated for durability and features a solid or perforated back panel sold separately. It meets industry standards set by NEMA Type 1, UL Listed Type 1, CSA Type 1, and IEC 60529 IP 30.

Product Information

Standard Information

• Material: Steel
• Color: ANSI-61 Gray

Technical Specifications

• Actual Depth: 6 inches
• Actual Width: 30 inches
• Actual Height: 36 inches
• Item Weight: 68.00 lbs per EA
• IP Rating: IP30
• CSA: Type 1
• NEMA: Type 1
• UL Listed: Type 1
