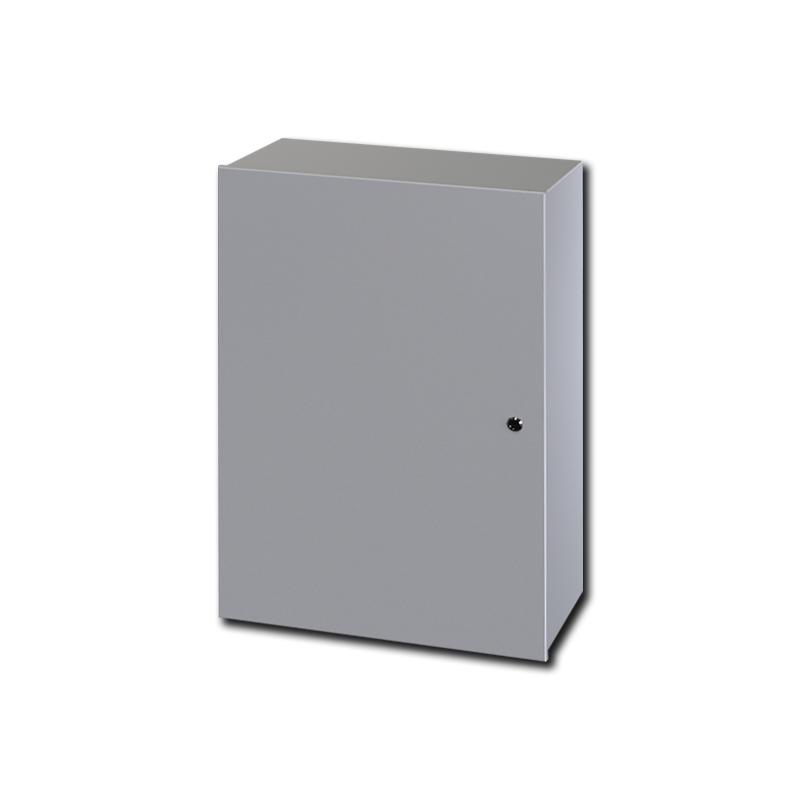

Saginaw Control & Engineering SCE-36N2406LP 36x24x6 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-36N2406LP is a 36 inches by 24 inches by 6 inches enclosure designed to house electrical controls, instruments, and components in a protected environment. This enclosure is suitable for areas that do not require oil, water, and dust-tight protection. The body is constructed from carbon steel with varying thickness, offering solid durability for industrial applications.

• Made from a mix of 0.048 inches, 0.063 inches, and 0.075 inches carbon steel.
• Designed with spot weld construction and features such as doors that open 180 degrees.
• Includes standoffs and mounting hardware for optional subpanels and a ground stud on the door.

Product Highlights

This enclosure is finished with ANSI-61 gray powder coating both inside and out.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-36N2406LP

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• UL Listed: Type 1
• CSA: Type 1
• IEC: IEC 60529
• IP Rating: IP30
• Item Weight: 55 lbs per EA
• Actual Depth: 6 inches
• Actual Width: 24 inches
• Actual Height: 36 inches
• Back Panel: Solid or Perforated - Sold Separately
