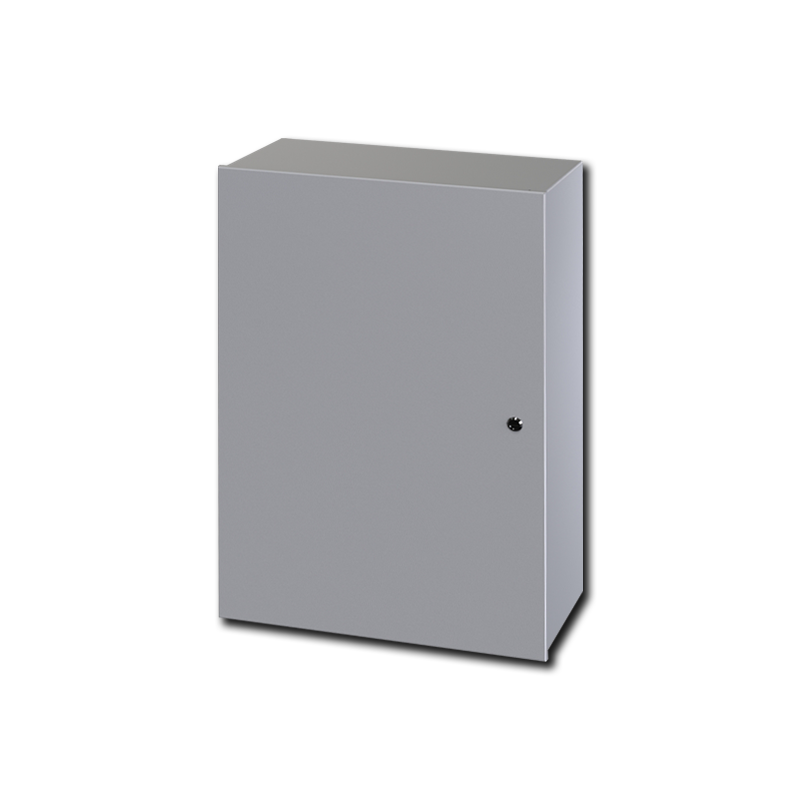

Saginaw Control & Engineering SCE-30N2408LP 30x24x8 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-30N2408LP is a 30x24x8 inch enclosure designed for housing electrical controls and instruments. This product is made of carbon steel with a thickness of zero point zero four eight to zero point zero seven five inches depending on the enclosure size. It features spot weld construction for durability and includes standoffs for optional panel mounting.

• Constructed from carbon steel
• Complies with NEMA Type 1 standards
• Features black quarter turn latches

Product Highlights

This enclosure is suitable for areas that do not need protection from oil, water, or dust. It has a powder-coated gray finish, ensuring durability and resistance to corrosion.

Product Information

Standard Information

• Item Weight: 54.00 lbs per EA
• Color: ANSI-61 Gray

Technical Specifications

• Actual Depth: 8 inches
• Actual Width: 24 inches
• Actual Height: 30 inches
• Material: Steel
• IP Rating: IP 30
• NEMA Rating: Type 1
• UL Listed: Type 1
• Back Panel: Solid or perforated, sold separately
