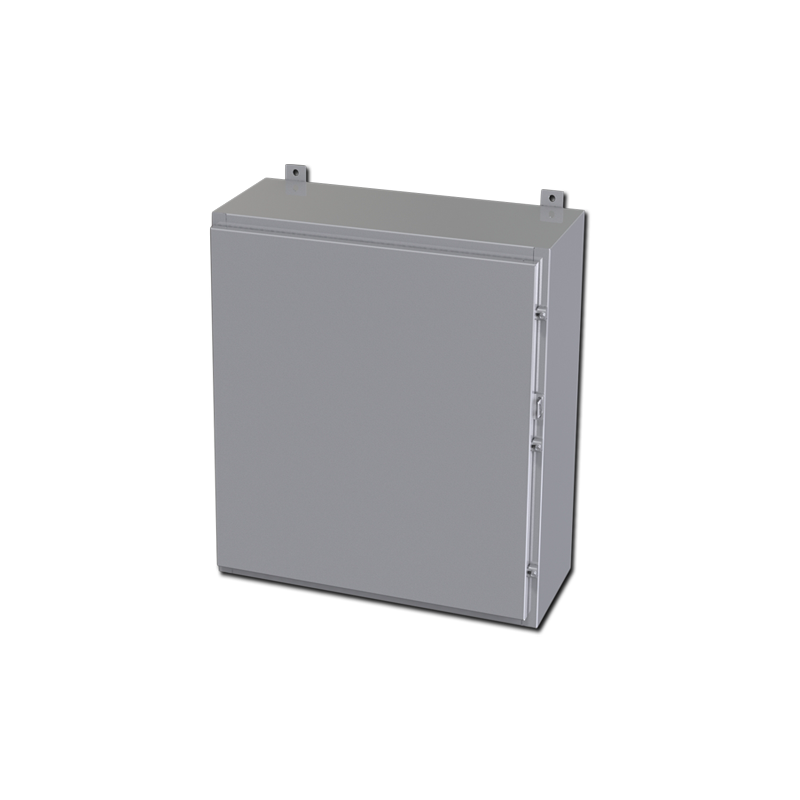

Saginaw Control & Engineering SCE-30H3008LP 30x30x8 Nema 12/3R/4 Enclosure

Product Description

The Saginaw Control & Engineering SCE-30H3008LP is a durable enclosure designed for housing electrical and electronic components. It protects against dust, dirt, oil, and water. It is suitable for various applications, including outdoor use with a recommended drip shield.

• Smooth welded seams for structural integrity.
• Quick-operating door clamps for easy access.
• Ground stud and gasket for optimal security.

Product Highlights

This enclosure features a continuous welded design, ensuring durability and reliability in harsh environments.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-30H3008LP

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• IP Rating: IP66
• NEMA Rating: Type 3R, 4, 12, and 13
• UL Listed: Type 3R, 4, and 12
• CSA Rating: Type 3R, 4, and 12
• Actual Width: 30 in
• Actual Height: 30 in
• Actual Depth: 8 in
• Item Weight: 86.00 lbs per EA
