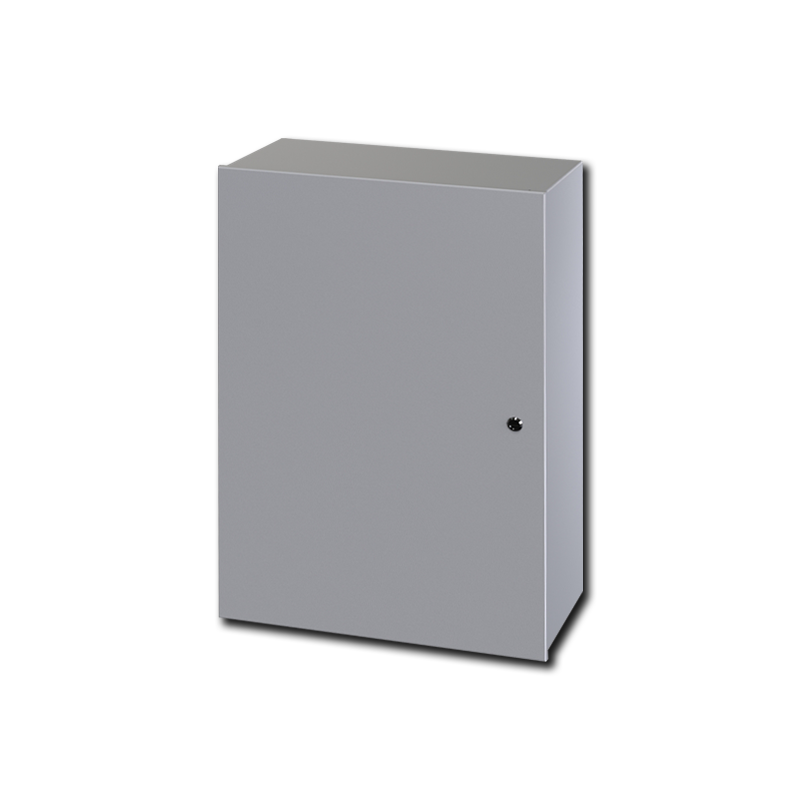

Saginaw Control & Engineering SCE-24N2008LP 24x20x8 Enclosure Nema-1

Product Description

The Saginaw Control & Engineering SCE-24N2008LP is a Nema-1 enclosure designed for housing electrical controls and components in environments that do not require full water, oil, or dust protection. It is constructed from carbon steel with various thickness options and features a durable spot weld construction.

• Simple cabinet design for straightforward installations.
• Doors that open to one hundred eighty degrees for easy access.
• Ground stud included for improved electrical grounding.

Product Highlights

Ideal for use in managing controls and instruments in dry areas, this enclosure is compliant with NEMA Type 1 and UL Listed Type 1 standards.

Product Information

Standard Information

• Color: ANSI-61 Gray
• Material: Steel

Technical Specifications

• Dimensions: 24 inches (Height) x 20 inches (Width) x 8 inches (Depth)
• Weight: 33.00 lbs per each
• NEMA Rating: Nema Type 1
• UL Listing: Type 1
• IP Rating: IP30
• Back Panel: Solid or Perforated - Sold Separately
