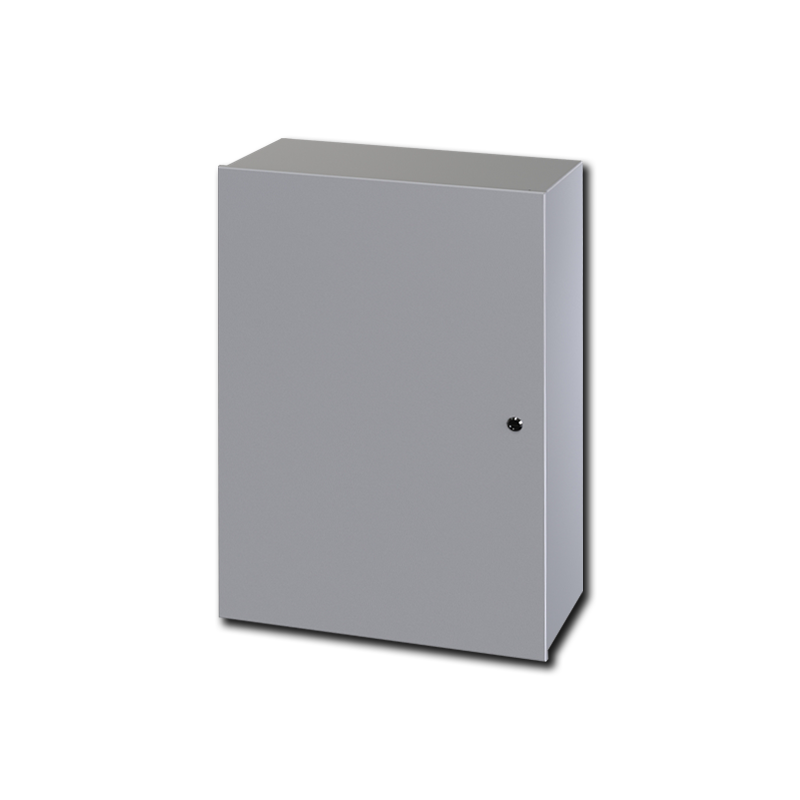

Saginaw Control & Engineering SCE-24N2006LP 24x20x6 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-24N2006LP is a 24x20x6 enclosure designed to protect electrical controls and components. This enclosure meets NEMA Type 1 standards, making it suitable for indoor use in non-hazardous environments.

• Constructed from carbon steel in three thickness options.
• Spot weld construction with a black powder-coated finish.
• Features a door that opens 180 degrees with quarter turn latches.

Product Highlights

This enclosure is perfect for housing electrical instruments in areas that do not require high levels of protection against dust or moisture.

Product Information

Standard Information

• Country of Origin: Not specified
• Availability: 2 units available in Atlanta

Technical Specifications

• IP Rating: IP30
• CSA Rating: Type 1
• IEC Standard: IEC 60529
• NEMA Rating: Type 1
• Material: Steel
• Item Weight: 31.54 lbs per unit
• Actual Depth: 6 inches
• Actual Width: 20 inches
• Actual Height: 24 inches
