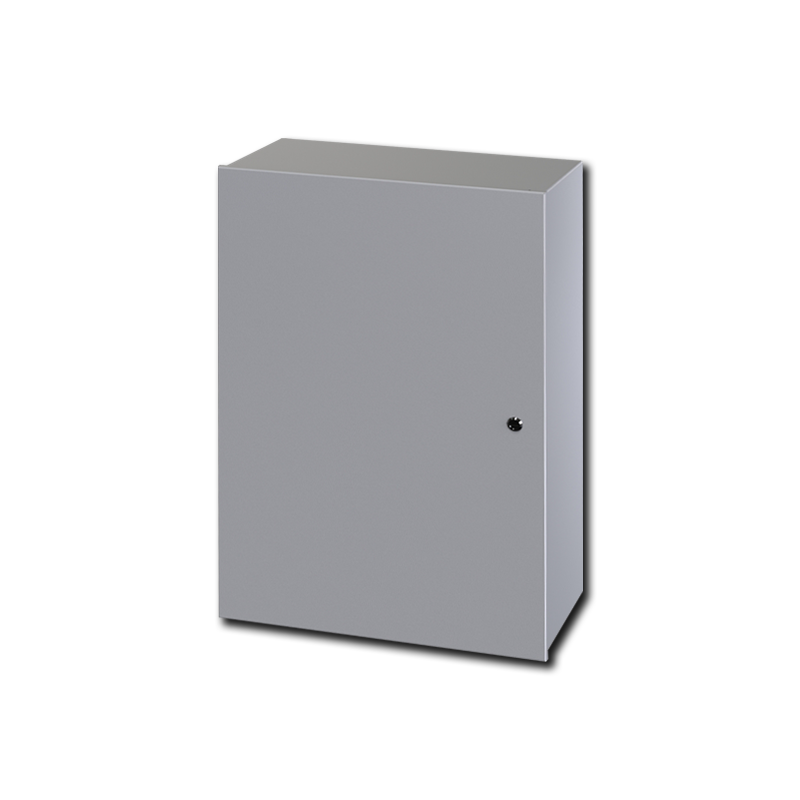

Saginaw Control & Engineering SCE-24N1606LP 24x16x6 Enclosure Nema-1

Product Description

The Saginaw Control & Engineering SCE-24N1606LP is a NEMA-1 enclosure designed for housing electrical controls and instruments. This enclosure is made from carbon steel materials with varying thicknesses to ensure strength. It features a spot weld construction and includes standoffs for easy mounting of optional panels. The doors of the enclosure open fully at one hundred eighty degrees and are equipped with black quarter turn latches that can be operated with a screwdriver. A ground stud on the door and mounting holes on the back provide added functionality.

• Constructed from carbon steel at thicknesses of zero point zero four eight, zero point zero six three, and zero point zero seven five inches
• ANSI-61 gray powder coating provides a protective finish
• Meets NEMA Type 1 and UL Listed Type 1 standards

Product Highlights

This enclosure is intended for use in environments where dust, water, and oil tight protection is not critical. It offers solid construction with customizable options for mounting and access.

Product Information

Standard Information

• Color: ANSI-61 Gray
• Material: Steel

Technical Specifications

• IP Rating: IP30
• CSA Rating: Type 1
• IEC Standard: IEC 60529
• UL Listed: Type 1
• Item Weight: 27.00 lbs per EA
• Actual Depth: 6 inches
• Actual Width: 16 inches
• Actual Height: 24 inches
