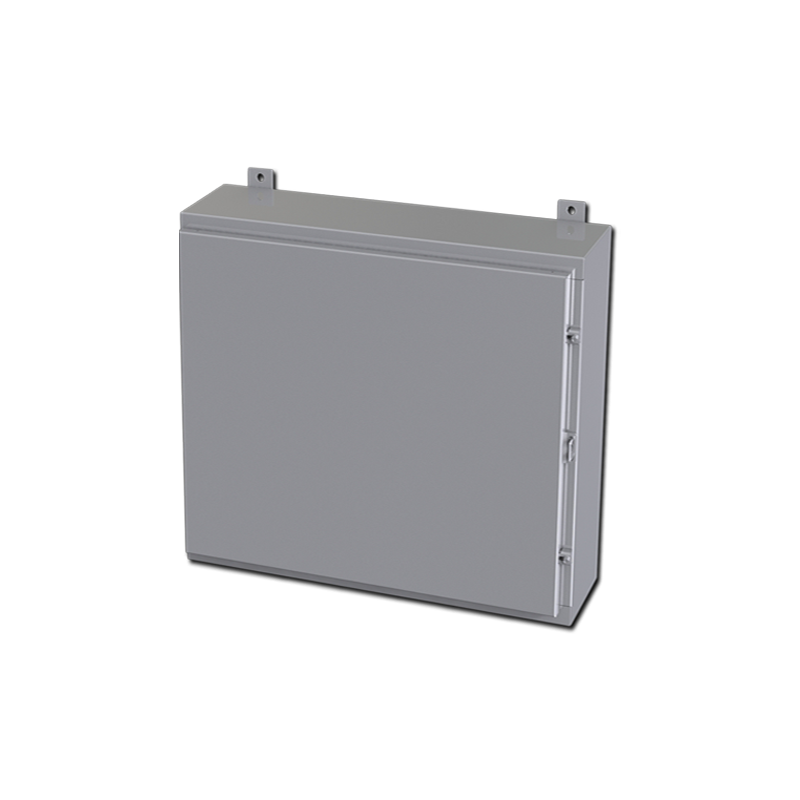

Saginaw Control & Engineering SCE-24H2408LP 24x24x8 Nema 4 LP Enclosure

Product Description

The Saginaw Control & Engineering SCE-24H2408LP is a 24x24x8 Nema 4 LP enclosure designed for housing electrical and electronic controls. It protects instruments and components from dust, dirt, oil, and water. This durable enclosure features a construction of zero point zero seventy-five inches carbon steel with continuously welded seams that are ground smooth. For quick access, the enclosure has a concealed hinge and offers simple operation with quick door clamps.

• Designed for outdoor applications; drip shield recommended.
• ANSI-61 gray powder coating inside and out.
• Meets multiple industry standards including NEMA Type 3R, 4, 12, and Type 13.

Product Highlights

Ideal for protecting sensitive controls in harsh environments.

Product Information

Standard Information

• Construction Material: Steel
• Protection Ratings: NEMA Type 3R, 4, 12 and 13

Technical Specifications

• Item Weight: 50 lbs per EA
• Actual Depth: 8 inches
• Actual Width: 24 inches
• Actual Height: 24 inches
• IP Rating: IP66
• UL Listed: Type 3R, 4, and 12
• CSA: Type 3R, 4, and 12
• IEC: IEC 60529
