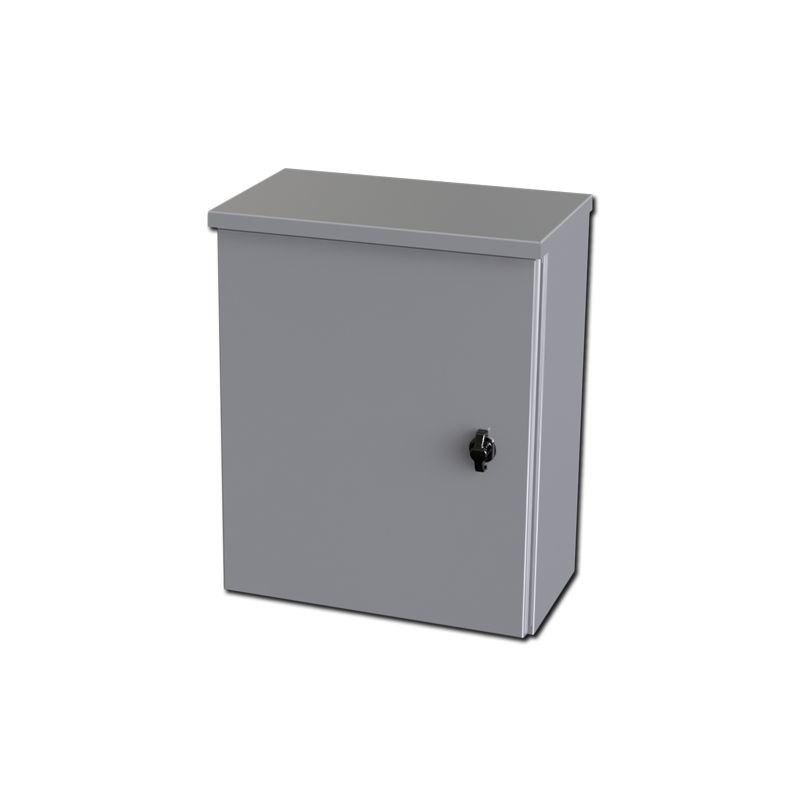

Saginaw Control & Engineering SCE-20R1606LP 20x16x6 Type-3R Hinged Cover Enclosure

Product Description

The Saginaw Control & Engineering SCE-20R1606LP is a 20 by 16 by 6 inches Type-3R hinged cover enclosure. This enclosure is built from carbon steel and designed for outdoor use. It protects electrical controls, instruments, and components from heavy rain, sleet, and snow.

• Constructed of carbon steel in thicknesses of 0.048 inches, 0.060 inches, and 0.075 inches.
• Features concealed hinges and spot weld construction.
• Equipped with oil resistant gaskets and provisions for sub-panels.

Product Highlights

The enclosure has mounting holes in the back for easy installation and is finished with ANSI-61 gray powder coating for long-lasting durability.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-20R1606LP

Technical Specifications

• Material: Steel
• Item Weight: 25.00 lbs per EA
• Actual Depth: 6 inches
• Actual Width: 16 inches
• Actual Height: 20 inches
• NEMA Rating: Type 3R
• UL Listed: Type 3R
• IEC Rating: IEC 60529
• IP Rating: IP36
• Grounding Kit: Includes 3/8-16 grounding kit
