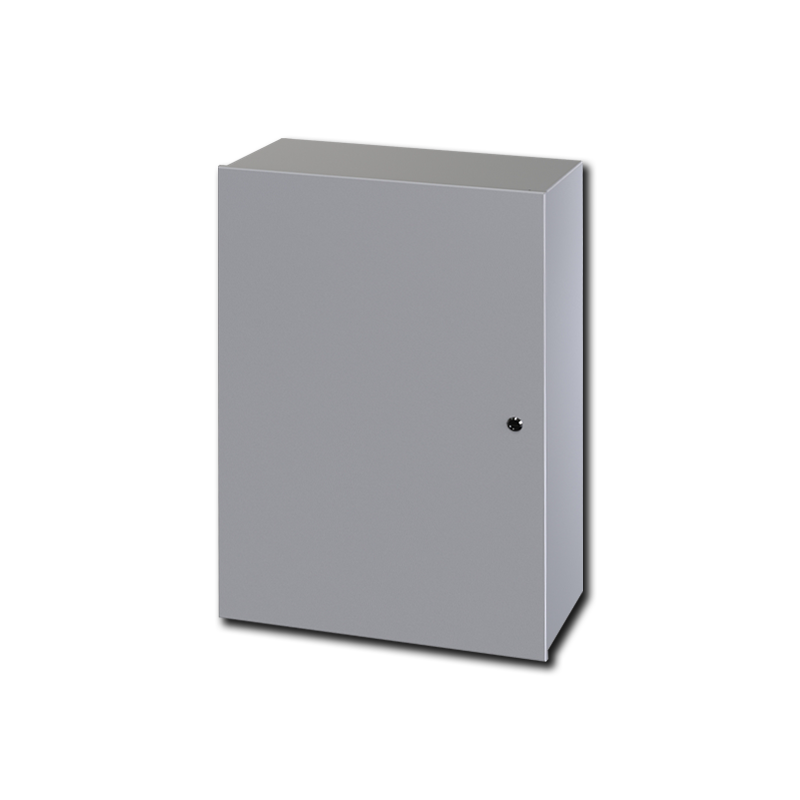

Saginaw Control & Engineering SCE-20N1608LP 20x16x8 Enclosure Nema-1

Product Description

The Saginaw Control & Engineering SCE-20N1608LP is a NEMA-1 enclosure designed for protecting electrical controls and instruments. This product is made from carbon steel with a thickness of zero point zero four eight inches, zero point zero six three inches, and zero point zero seven five inches, ensuring durability and strength. The enclosure features spot weld construction for added stability.

• Constructed from sturdy carbon steel
• Designed for indoor applications without exposure to moisture
• UL listed and complies with NEMA Type 1 standards

Product Highlights

This enclosure includes features such as standoffs for optional panel mounts, a butt hinge allowing for doors to open one hundred eighty degrees, and black quarter turn latches that can be operated with a screwdriver. Ground studs are also provided for electrical grounding.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-20N1608LP
• Color: ANSI-61 Gray

Technical Specifications

• Material: Steel
• Item Weight: Twenty-four lbs per EA
• Actual Depth: Eight inches
• Actual Width: Sixteen inches
• Actual Height: Twenty inches
• IP Rating: IP30
• CSA Type: Type 1
• NEMA Rating: Type 1
