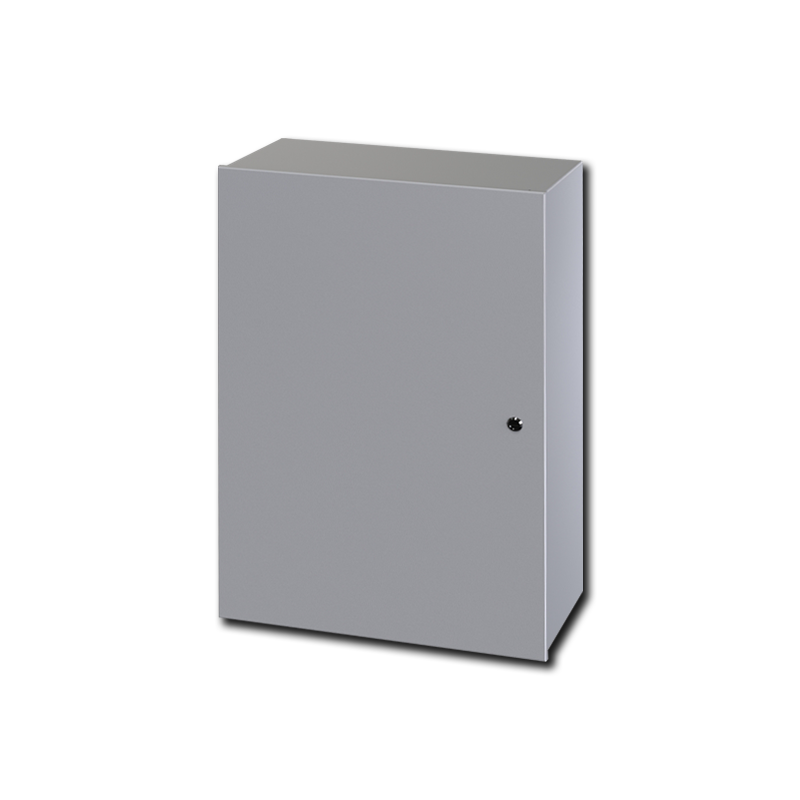

Saginaw Control & Engineering SCE-20N1606LP 20x16x6 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-20N1606LP is a 20x16x6 inches Nema-1 enclosure designed for safe housing of electrical controls and instruments. This enclosure is suitable for areas without the need for water, dust, and oil tight protection. It features spot weld construction with a selection of carbon steel gauges for durability.

• Constructed from carbon steel, available in three thicknesses.
• Doors open 180 degrees, featuring black quarter turn latches.
• Ground stud included on the door with standoffs for optional panels.

Product Highlights

This enclosure is ideal for housing electrical components while ensuring compliance with NEMA Type 1, UL Listed Type 1, and CSA Type 1 standards.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-20N1606LP

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• Actual Depth: 6 inches
• Actual Width: 16 inches
• Actual Height: 20 inches
• IP Rating: IP30
• UL Listed: Type 1
• Back Panel: Solid or Perforated - Sold Separately
