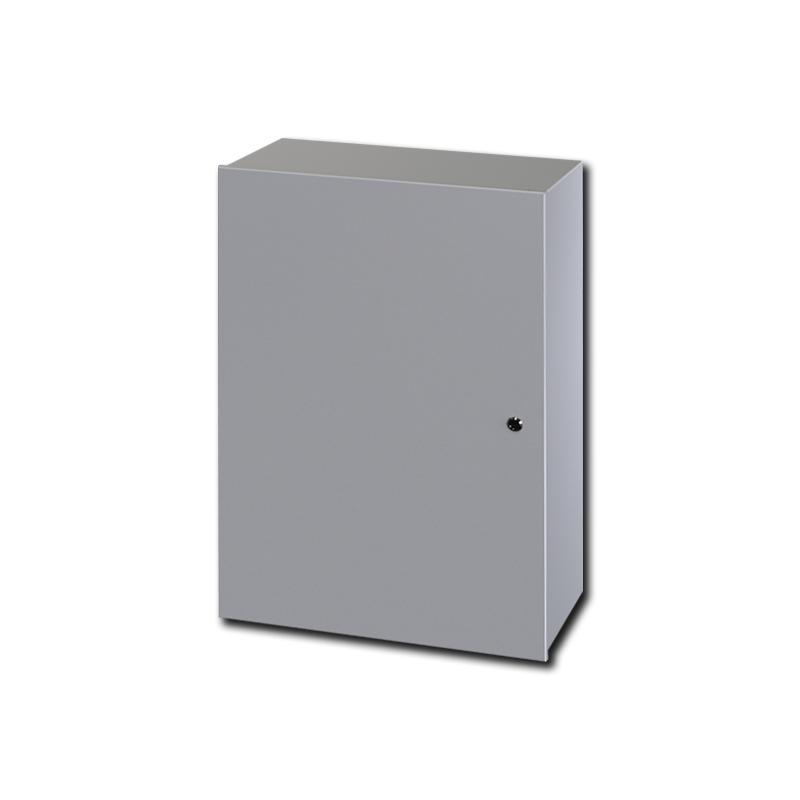

Saginaw Control & Engineering SCE-16N1206LP 16x12x6 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-16N1206LP is a NEMA-1 enclosure designed to protect electrical controls and instruments. This enclosure measures sixteen inches in height, twelve inches in width, and six inches in depth. The construction uses carbon steel, with thicknesses of zero point zero four eight inches, zero point zero six three inches, and zero point zero seven five inches, depending on the enclosure size.

• Spot weld construction ensures durability.
• Ground stud is included for effective grounding.
• Optional subpanels can be mounted inside for added organization.

Product Highlights

This enclosure is ideal for environments that do not require protection against moisture or dust. It features a black quarter turn latch for secure closing, easily operated with a screwdriver. The doors can open one hundred eighty degrees for easy access.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• Color: ANSI-61 Gray

Technical Specifications

• Material: Steel
• IP Rating: IP30
• NEMA Rating: Type 1
• UL Listed: Type 1
• Actual Depth: 6 inches
• Actual Width: 12 inches
• Actual Height: 16 inches
• Item Weight: 11.00 lbs per EA
